50pin IDC to Breadboard adapter

by stefanberndtsson.

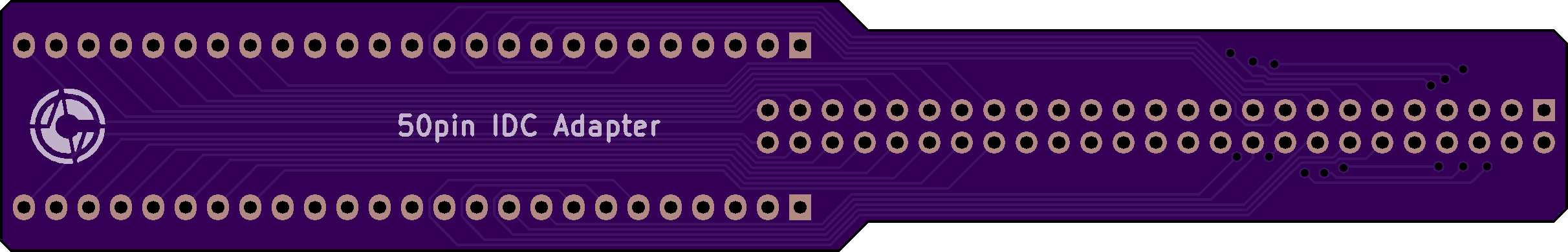

Top

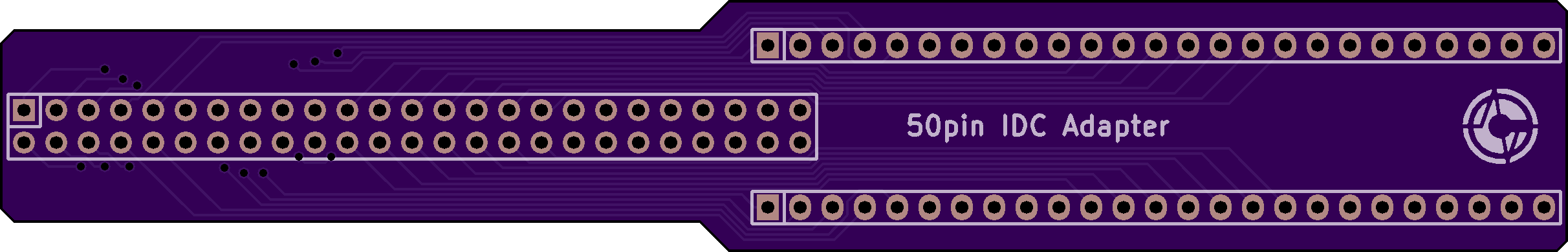

Bottom

2 layer board of 4.85x0.78 inches (123.14x19.76 mm).
Shared on August 2nd, 2014 21:02.

Adapter for connecting a 50pin IDC connector to a breadboard with offset so that the breadboard isn’t covered by the ribbon cable
