RC2014 Board 3 - 27C512 ROM

by semachthemonkey.
Top
Bottom

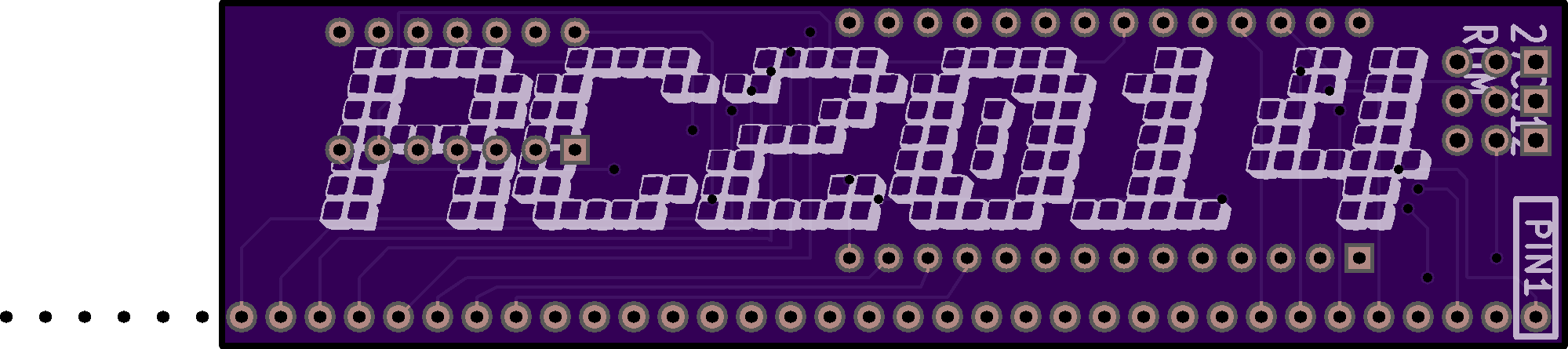

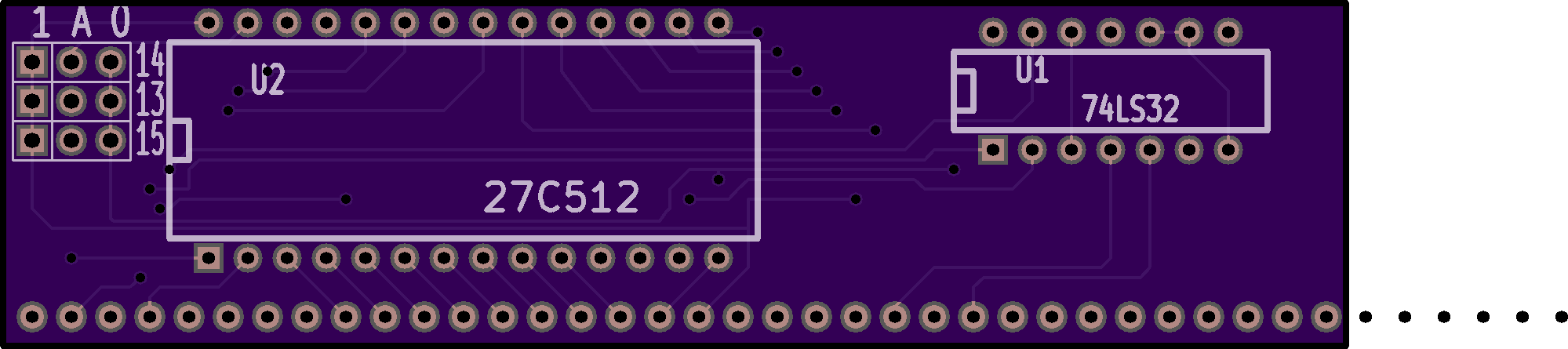

2 layer board of 3.44x0.89 inches (87.40x22.61 mm).
Shared on July 31st, 2014 18:52.

Simple multiboard Z80 computer I designed for Retro Challenge 2014. For more info see http://www.sowen.com/category/retro-challenge/ Tested and working. Uses 27C512 split in to 8 8k pages selectable by jumpers. 74LS32 for address decoding
