Pi Attenuator (0805)

by SyncChannelBlog.
Top

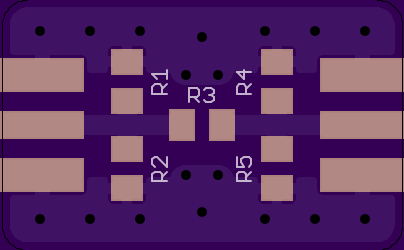

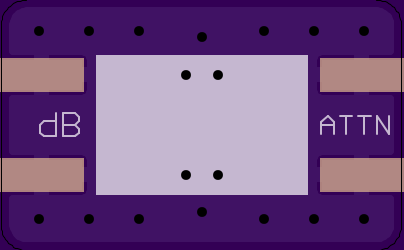

Bottom

2 layer board of 0.80x0.50 inches (20.32x12.70 mm).
Shared on February 9th, 2016 20:55.

This version uses 0805 resistors.

http://syncchannel.blogspot.com/2016/02/quick-pcb-pi-attenuator.html
