5 Volt Switching Regulator

by cdawg.

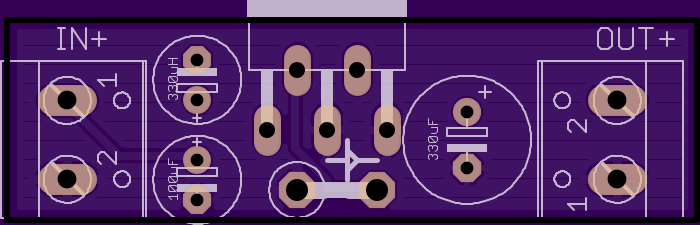

Top

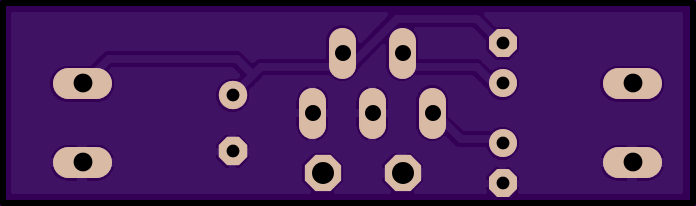

Bottom

2 layer board of 1.74x0.52 inches (44.22x13.13 mm).
Shared on September 18th, 2014 22:17.

BOM: LM2575, 100uF cap, 330uF cap, 330uH inductor, 1N5819 diode
