FFB-FFP-USB-adapter

by redyrxela.

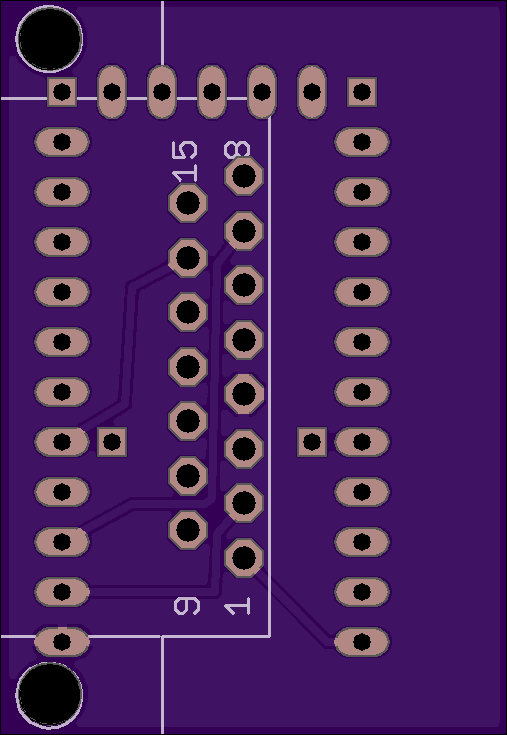

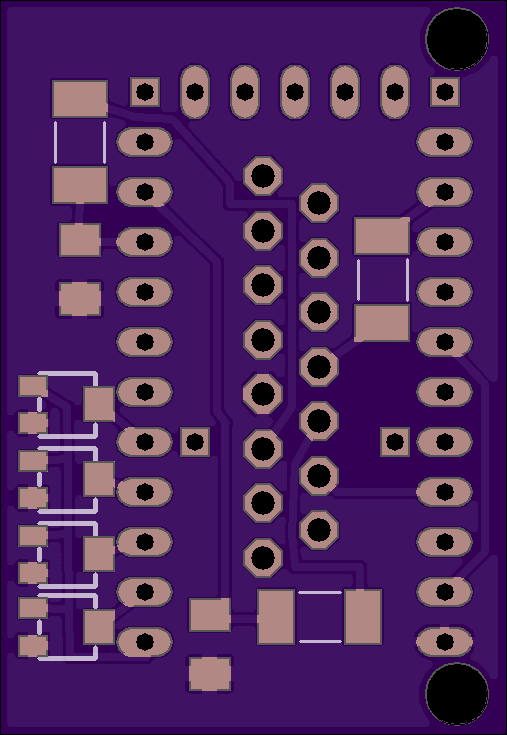

2 layer board of 1.01x1.47 inches (25.73x37.34 mm).
Shared on July 31st, 2014 23:26.

usb adapter for the sidewinder force feedback pro.

based on https://code.google.com/p/adapt-ffb-joy/

this version saves space by mounting the db15 to the bottom of the board components that should work:

  • RPC2010JT220RCT-ND 220 Ohm resistor
  • P2.2KWCT-ND 2.2k ohm resistor x2
  • 709-1029-1-ND 1uF capacitor x2
  • 177-715F-ND female db15 connector
  • P3Y103CT-ND 10k liner trim pot x4
  • Teensy 2.0
