PIC24FJ Brakeout Board 1.0

by Bjoern.
Top
Bottom

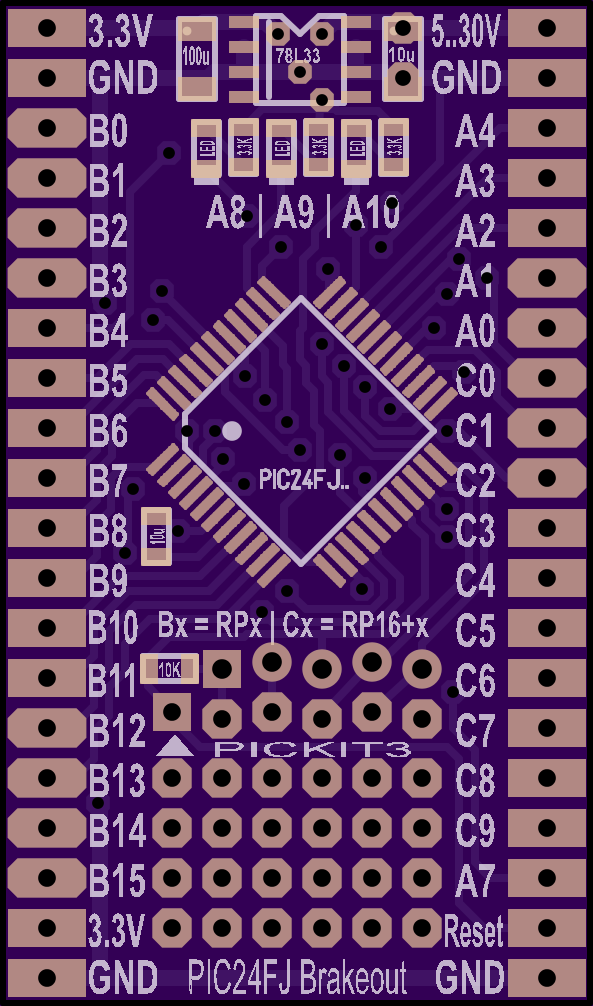

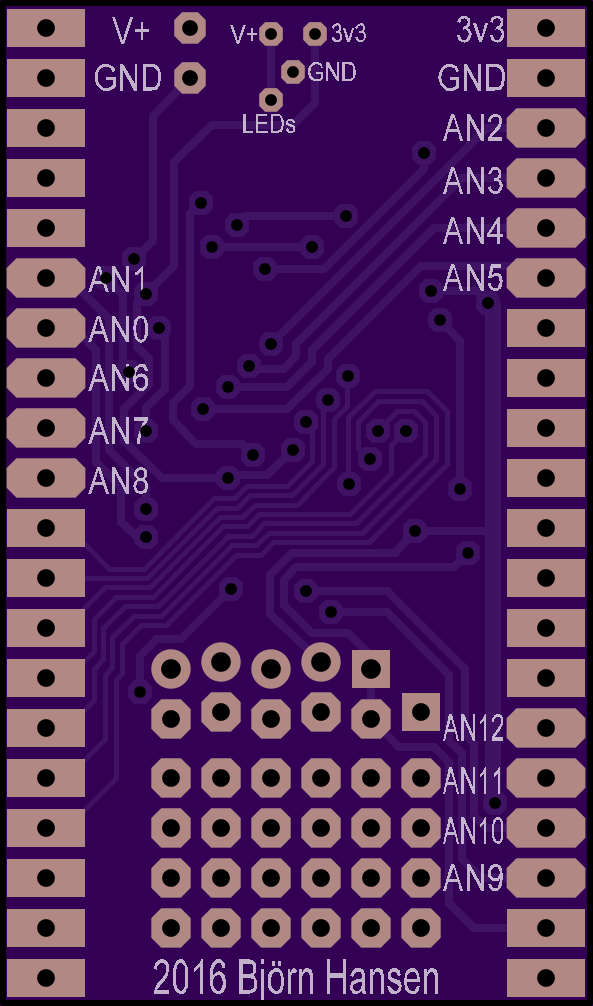

2 layer board of 1.19x2.01 inches (30.15x51.10 mm).
Shared on February 8th, 2016 15:53.

Brakeout Board for Microchip PIC24FJxxyyz04. Version 1.0. Works for PIC24EPxxyyz04 as well, but some Labels are incorrect (RP and AN)
