TPS61240 Breakout v2

by mozzwald.

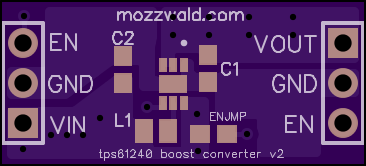

Top

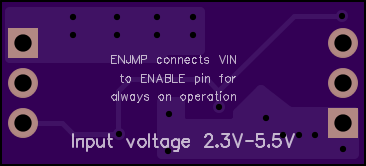

Bottom

2 layer board of 0.92x0.42 inches (23.27x10.57 mm).
Shared on January 6th, 2015 05:56.

  • U1: TI TPS61240
  • C1: 4.7uF 6.3V 0603
  • C2: 4.7uF 6.3V 0603
  • L1: 1uH 0805
