New PCB1861smd.zip

by kenneke.

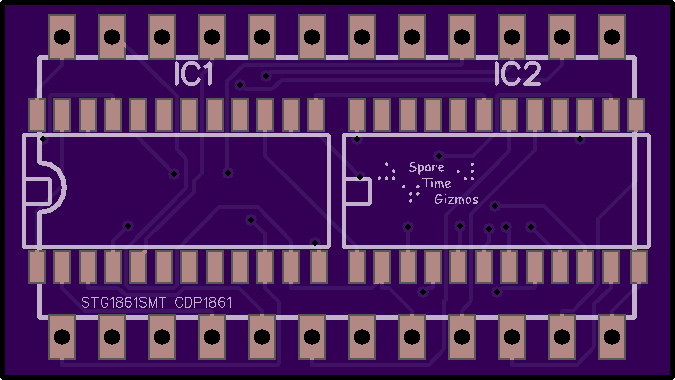

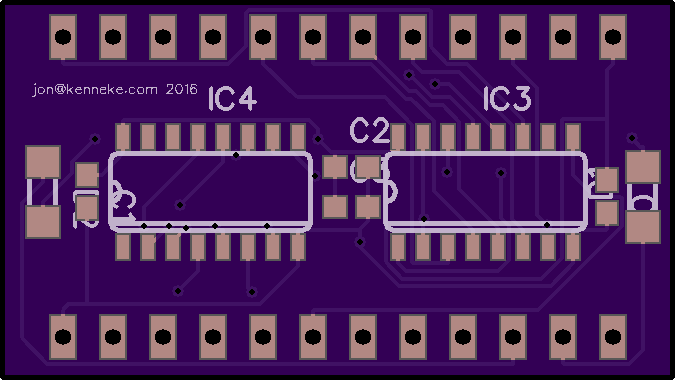

2 layer board of 1.35x0.76 inches (34.29x19.30 mm).
Shared on December 27th, 2016 18:56.

This is an emulator for the RCA CDP1861 video chip. This board has been tested and confirmed working. See the COSMAC ELF 1802 Facebook page at: https://www.facebook.com/groups/cosmacelf/. Contact me at jon@kenneke.com for more information.
