Bitty Boost

by metacollin.

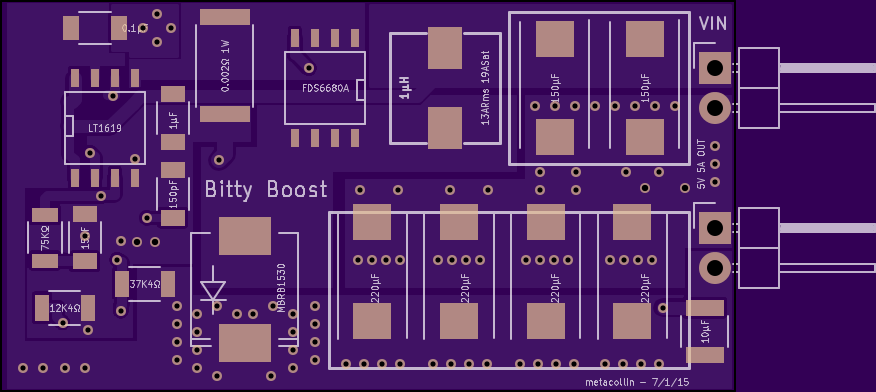

Top

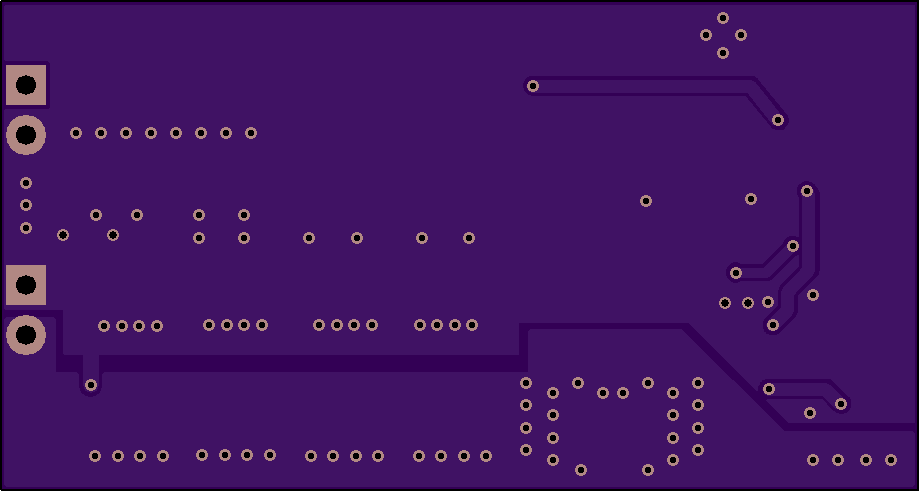

Bottom

2 layer board of 1.84x0.98 inches (46.71x24.92 mm).
Shared on July 18th, 2015 11:12.

A tiny 2.5V-4.6V in 5V out with a maximum continuous current of 5A and can deliver brief peak currents of 8A. Don’t go over 5A for any meaningful amount of time or the diode will explode. Or just get really hot and desolder itself. Or both.

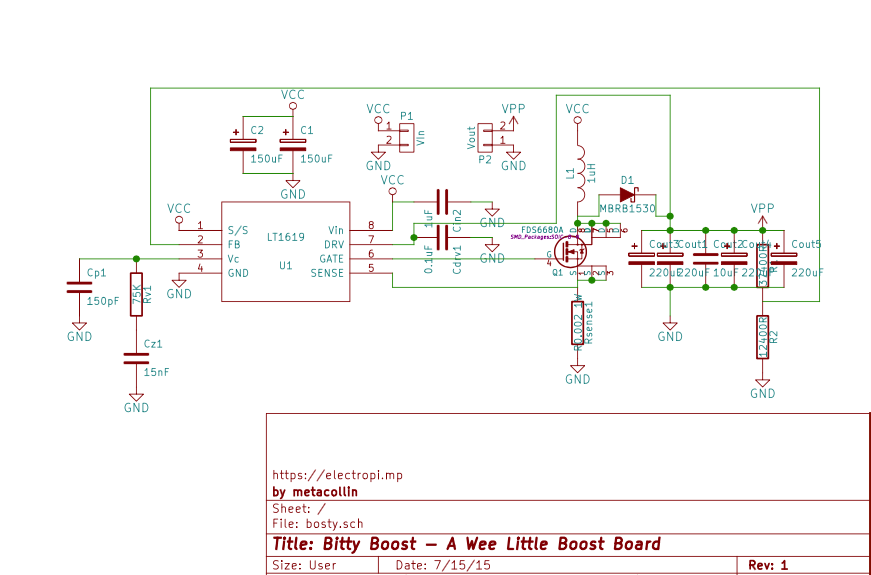

Schematic:

Schematic!
