6 Channel LED Driver
by
AtticusG3.
4
layer board of
2.40x1.55
inches
(60.99x39.37
mm).
Shared on
August 3rd, 2014 03:09.
Alpha prototype stage.

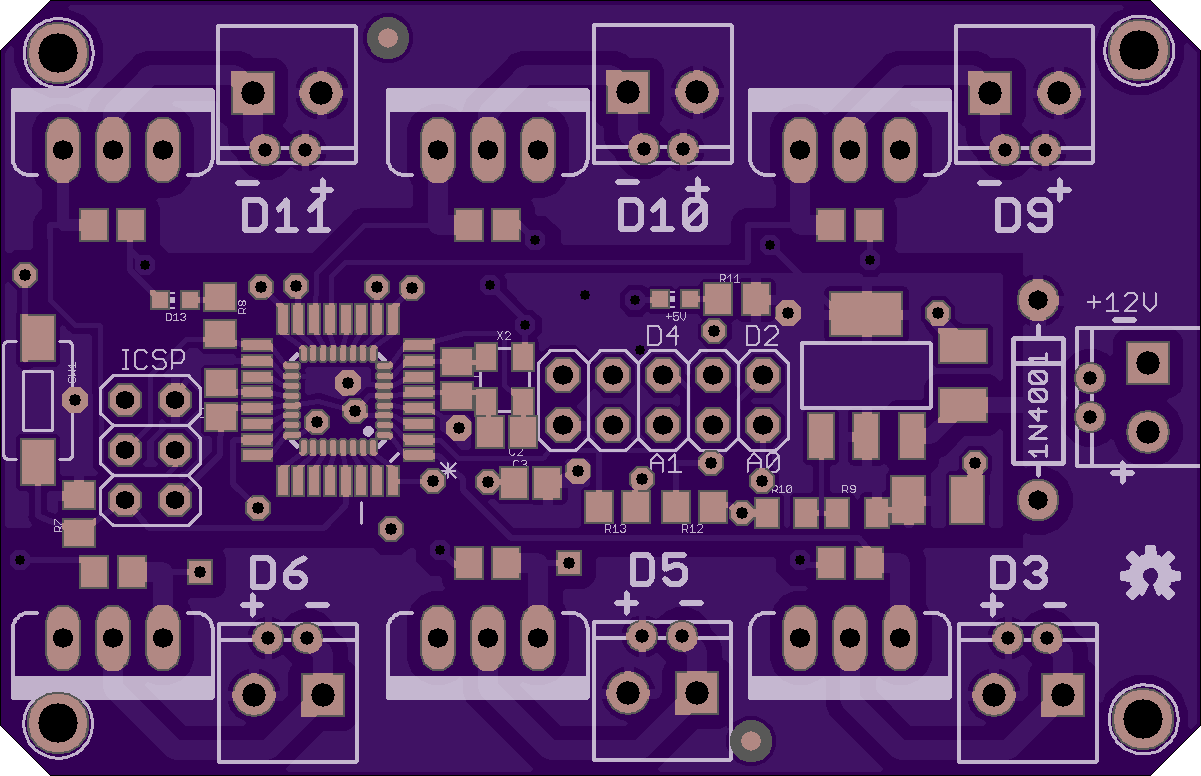

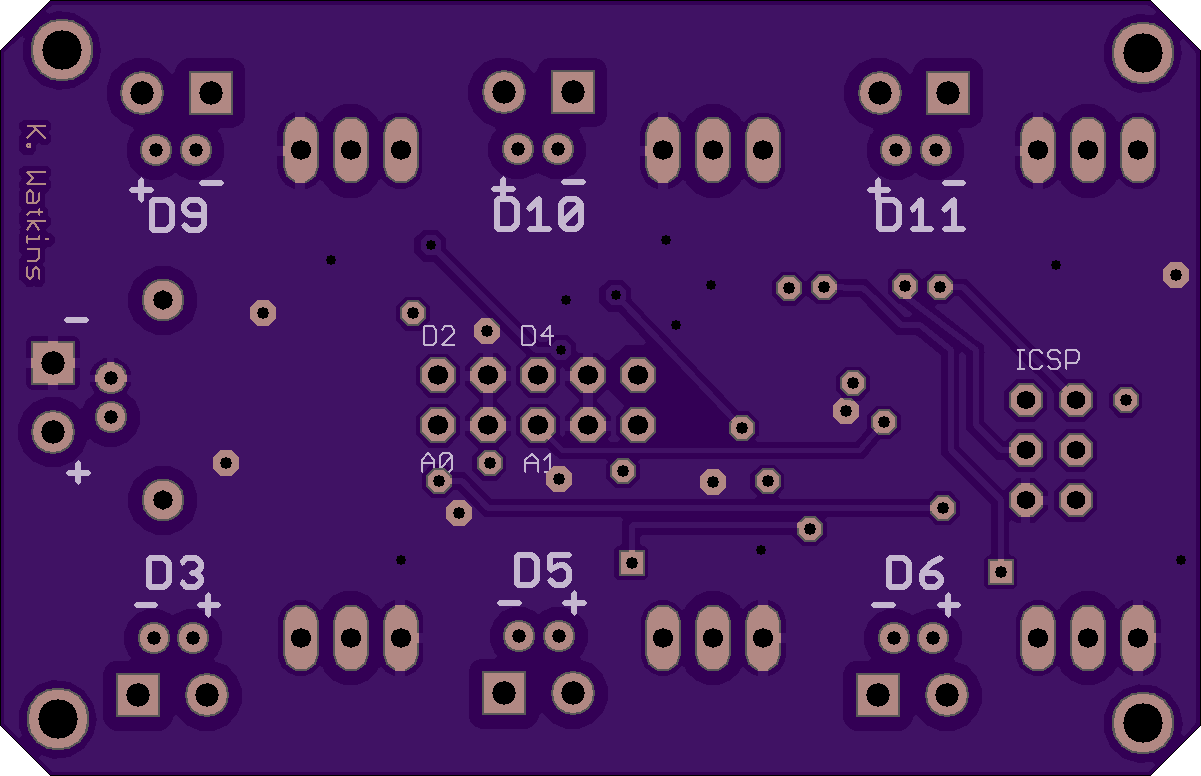

This board uses an onboard Atmega328p to drive 6 N-Channel Mosfets with it’s PWM pins.
D2, D4, A0 and A1 are broken out along with GND 5v and Vin to a 2x5 header designed to run an external switch panel.
ISCP pins are also broken out to allow in-situ programming.
Heatsinking will be required for the Voltage regulator as it’s using an adjustable regulator to regulate from 12v down to 5v.
An LM1117MPX-5.0 fixed regulator can be used instead, leave R9 unpopulated and bridge R10 with a 0R link. C5 and C7 can be replaced with suitable Ceramics, though the datasheet suggests tantalum’s.
Heatsinking maybe required for the MOSFET’s depending on current draw, I suggest soldering them to the underside of the board and heatsinking them to your case, insulate them of course.
