12 LED

by CuriousTech.

2 layer board of 0.86x0.86 inches (21.87x21.87 mm).
Shared on May 18th, 2015 12:18.

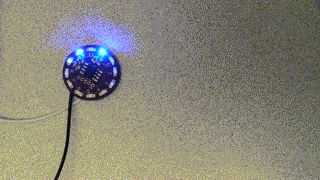

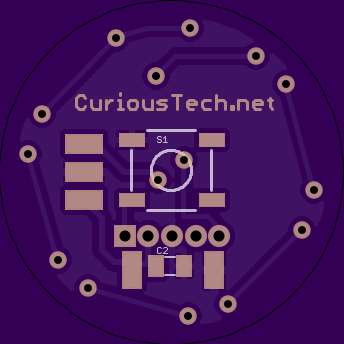

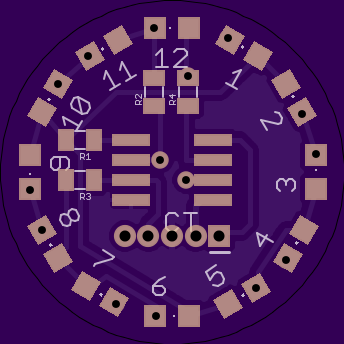

12 0805 LEDs and a 12F1571 (or most any 12F) on a nickel size PCB. Button and extra I/O on back.

pic
