BMI055 Breakout

by sgstair.

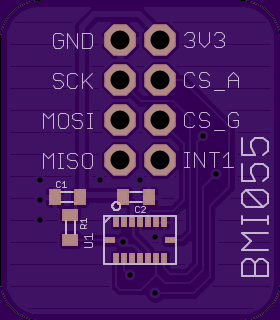

Top

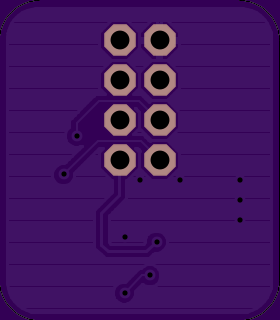

Bottom

2 layer board of 0.70x0.80 inches (17.78x20.32 mm).
Shared on August 16th, 2014 20:59.

Simple breakout of partial BMI055 functionality that I made to integrate this part into another project

C1: 1uF

C2: 0.01uF

R1: 10k (interrupt line pullup)

The capacitor values aren’t critical, but this chip should have some bypass cap installed for local power stability.
