LEGO 9V Train Motor Breakout (4.875)

by codefox421.

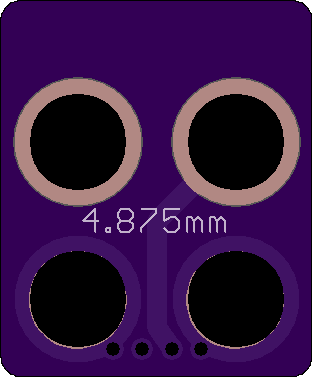

Top

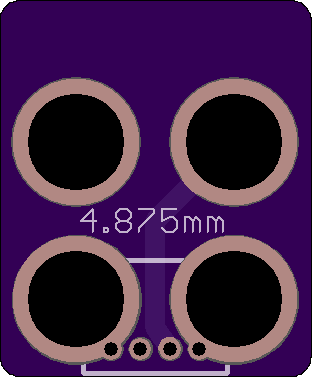

Bottom

2 layer board of 0.62x0.75 inches (15.82x19.13 mm).
Shared on September 2nd, 2015 16:06.

Uses JST ZH/ZR-series connector. 4.875mm Vias
N.B. Doesn’t work with cut knob conductors.
