2xHBridgeV03

by jlewis184.
Top
Bottom

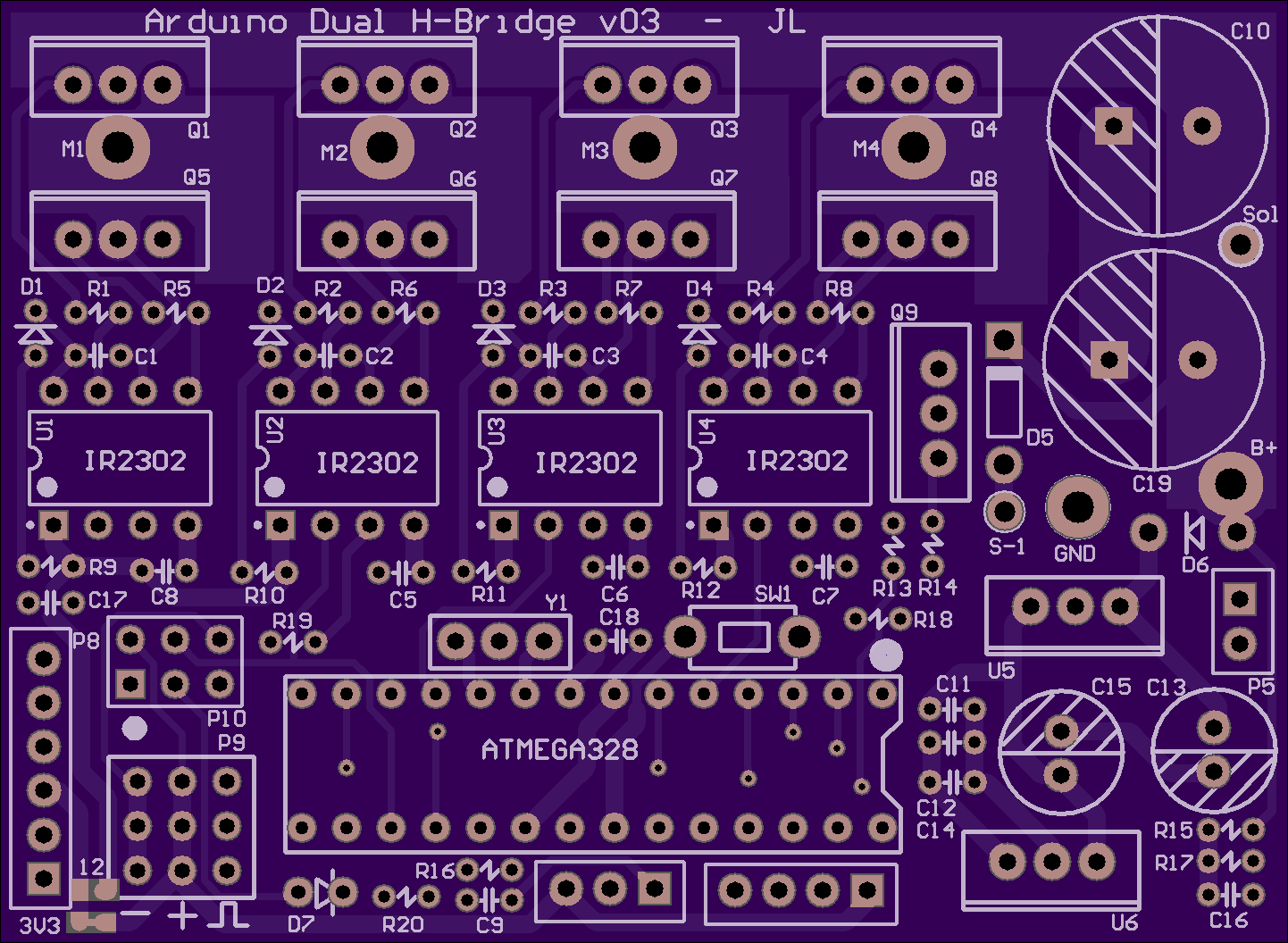

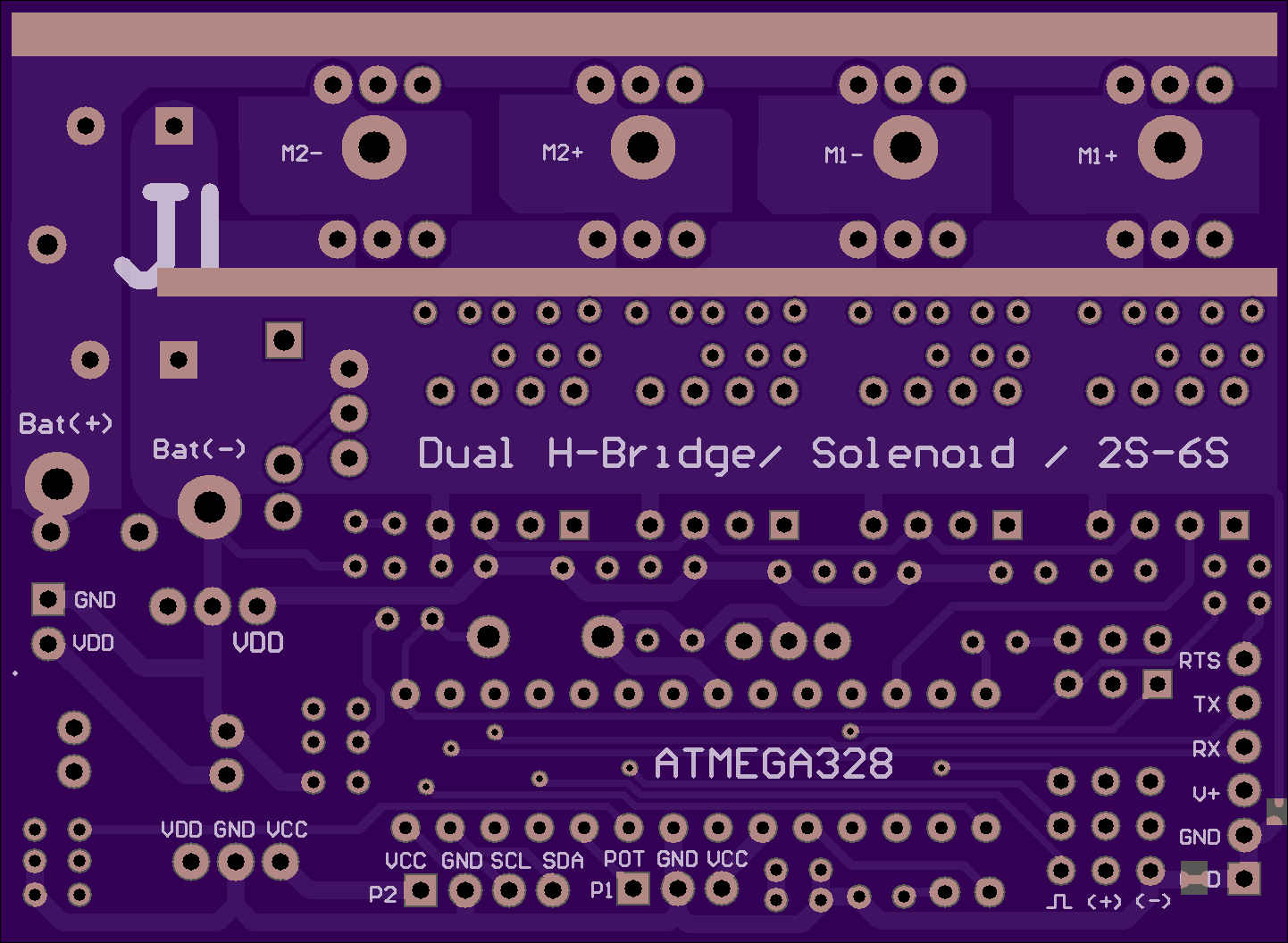

2 layer board of 2.88x2.11 inches (73.20x53.62 mm).
Shared on July 4th, 2015 16:17.

Arduino Compatible, Dual H-Bridge, with Solenoid Driver

Schematic, BOM, Gerbers available at: https://github.com/yoyoJosh/Arduino-Dual-H-Bridge
