B-5971 Nixe Tube - SmartDriver (3of3)

2 layer board of 1.64x1.56 inches (41.68x39.62 mm).
Shared on June 9th, 2014 18:30.

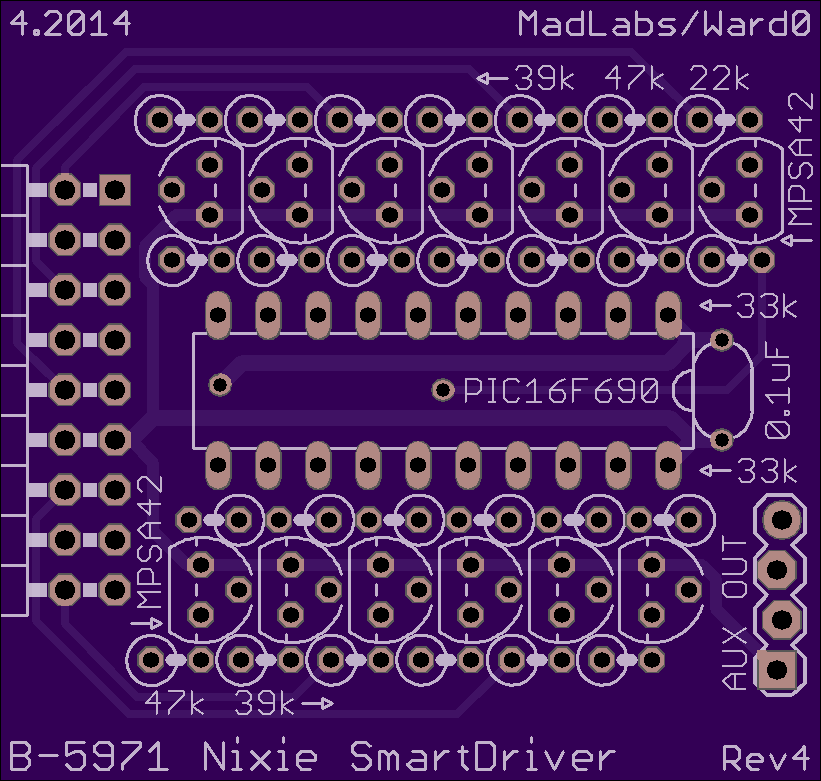

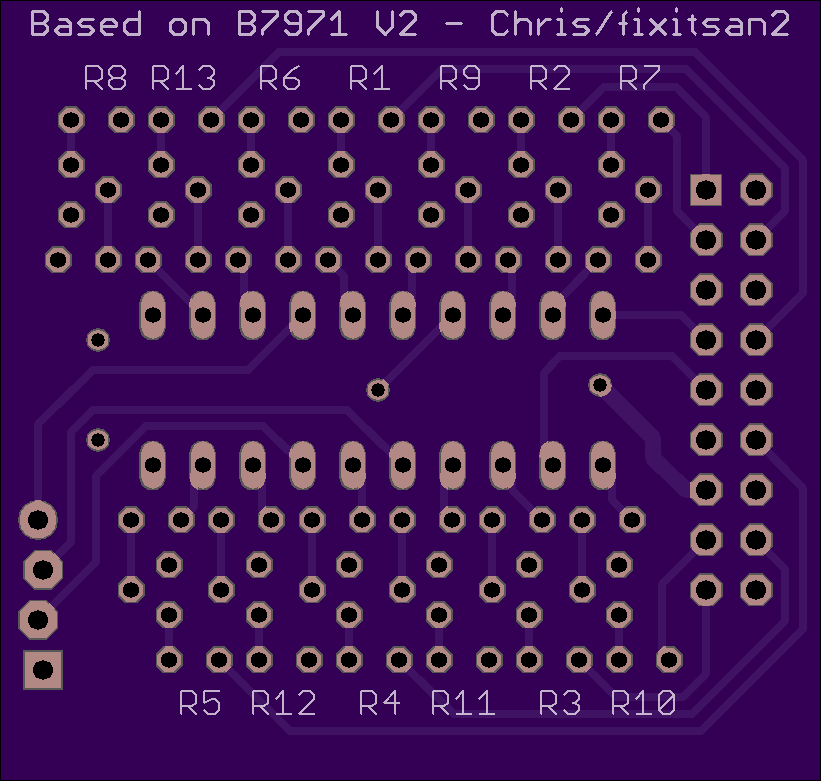

Driver Board for Burroughs B-5971 Alphanumeric Nixie Tube

• PIC16F690 Running SmartSocket Code
• Plugs into back of B-5971 Nixie Tube - SmartLink at 90°
• Based on B7971 V2 - Chris/fixitsan2
• Thanks to Sjef van Gool for cathode resistor values
• Project Files: B-5971_SmartSockets.zip
• More Info: Smartsockets Yahoo Group
