Boba Fett Chest v7.1 Split_A - Main Board

by thatdecade.
Top
Bottom

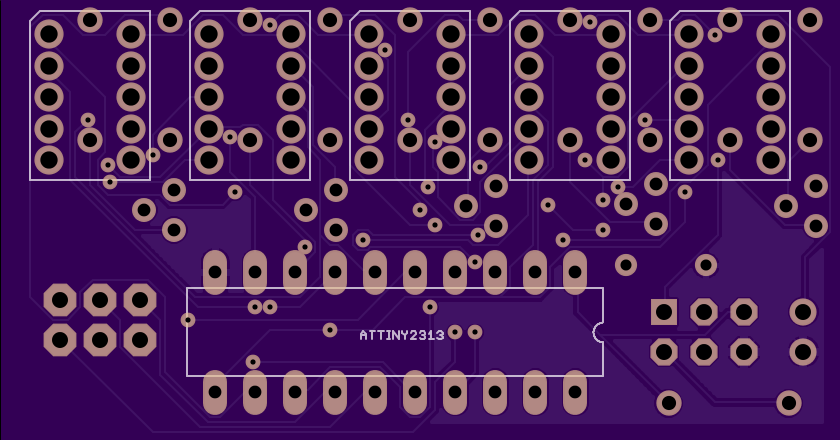

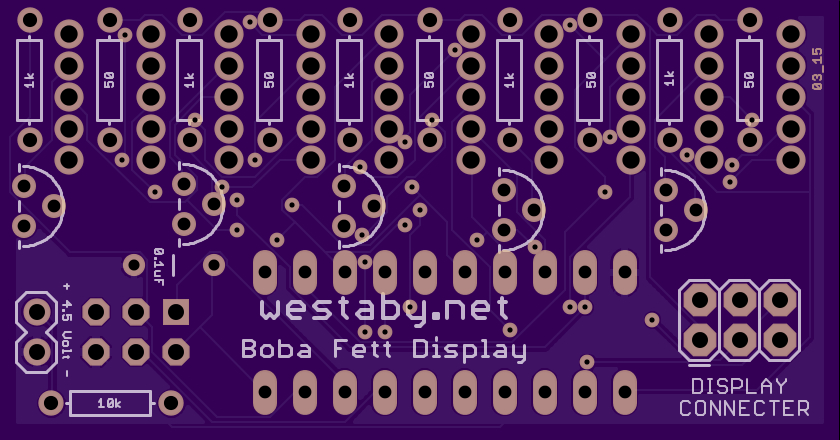

2 layer board of 2.10x1.10 inches (53.37x27.94 mm).
Shared on January 2nd, 2016 19:28.

This is a circuit for the display on Boba Fett’s chest plate. Lights are multiplexed, see schematic / source code. V7 - Display circuit has been split into two sections to allow for varying slot distances. This is the main section.

Part List: http://www.mouser.com/ProjectManager/ProjectDetail.aspx?AccessID=7c6a316116

Source Code: https://github.com/thatdecade/Boba_Fett_Chest_Display

Video of operation: https://www.flickr.com/photos/dwest2/23788341410
