MrRetupmoc's RPi SMC Rev 1.1

by MrRetupmoc42.

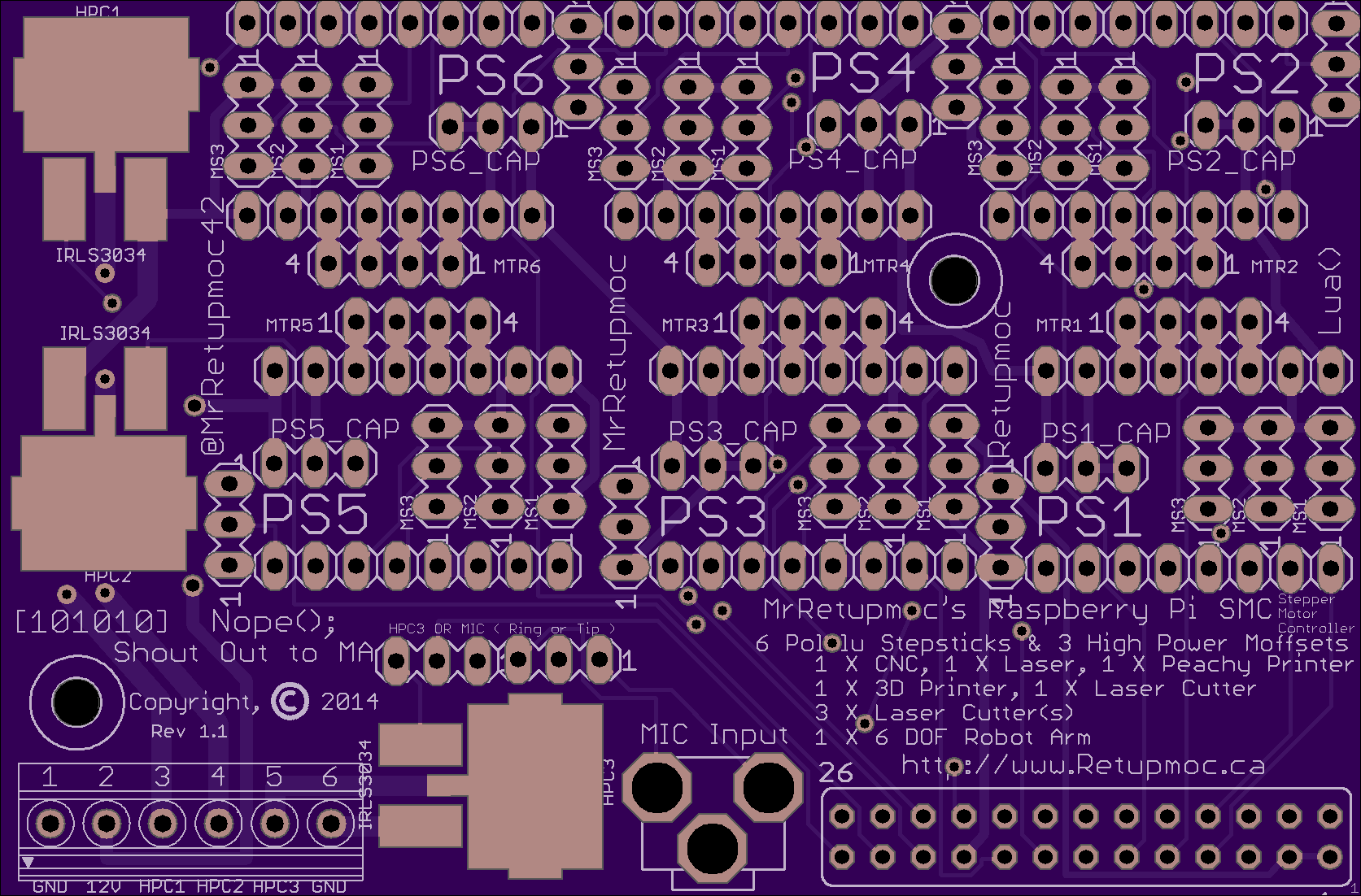

Top

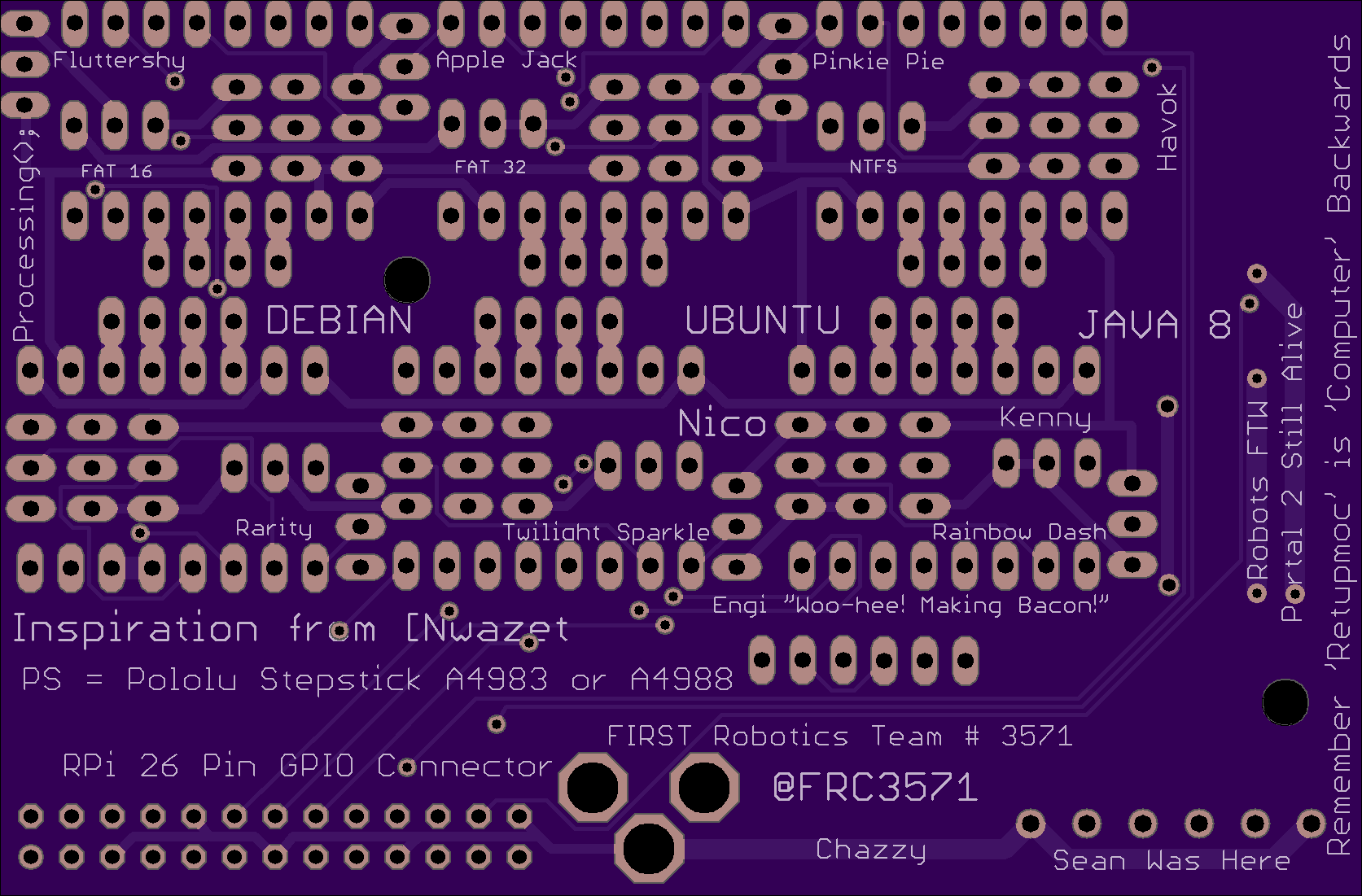

Bottom

2 layer board of 3.34x2.20 inches (84.94x55.93 mm).
Shared on March 12th, 2014 05:43.

RPi Controller Board for 6 x Pololu Stepstick(s) [ A4983 or A4988 ], 3 x High Powered Moffset(s) [ 40V 195A ], A Mic Jack for the Peachy Printer [ Z Axis Input ] and Unused I2C Pins [ Limit Input ] http://retupmoc.ca/mrretupmoc42/products/
