NEDONAND-9

by Shaos.

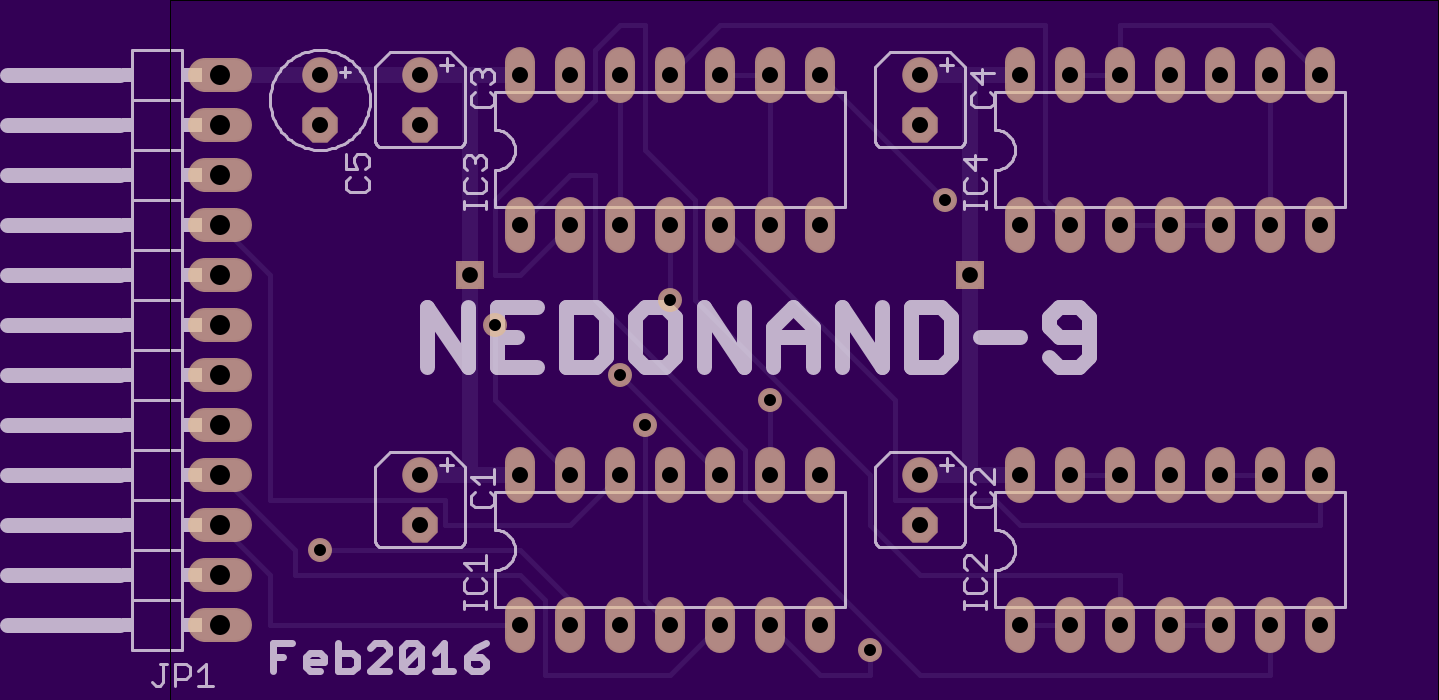

Top

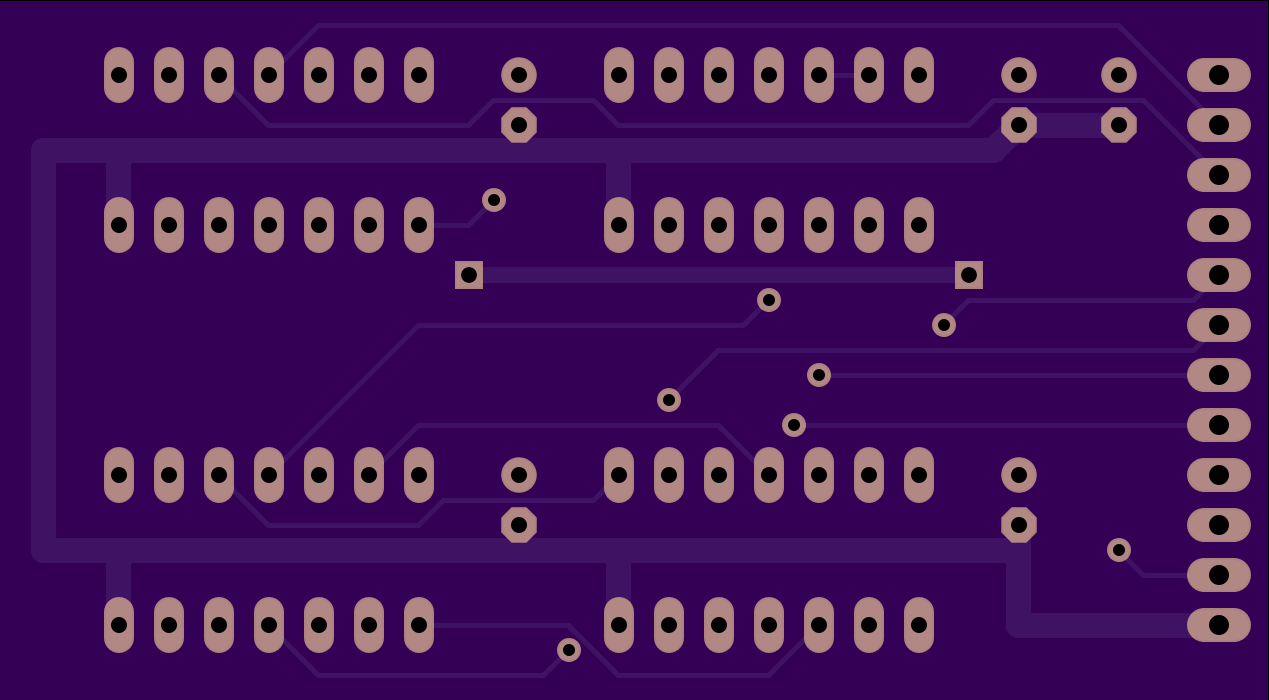

Bottom

2 layer board of 2.54x1.40 inches (64.47x35.56 mm).
Shared on March 28th, 2016 10:54.

9th board for NEDONAND project

Pins: GND,A,B,C,D,E,F,G,H,I,AND,VCC (from right to left, AND is output of 9-input AND gate)
