Atmega328-QFN32.brd

by SixFingersMike.

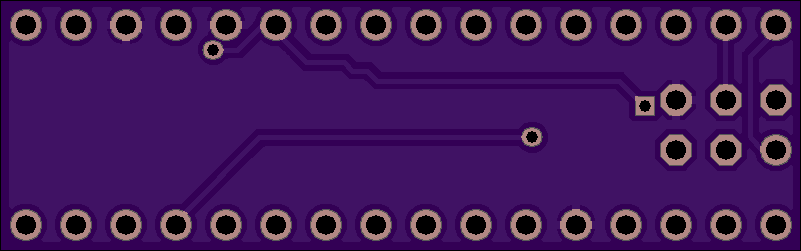

Top

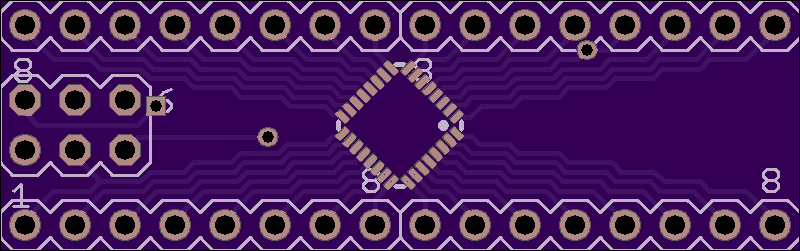

Bottom

2 layer board of 1.60x0.50 inches (40.64x12.70 mm).
Shared on March 4th, 2017 13:13.

ATMega328 QFN32 Raw breakout with ISP Made purely to test ability to solder qfn32 chips on larger projects.
