Monome Switch 1U

by infovore.
Top
Bottom

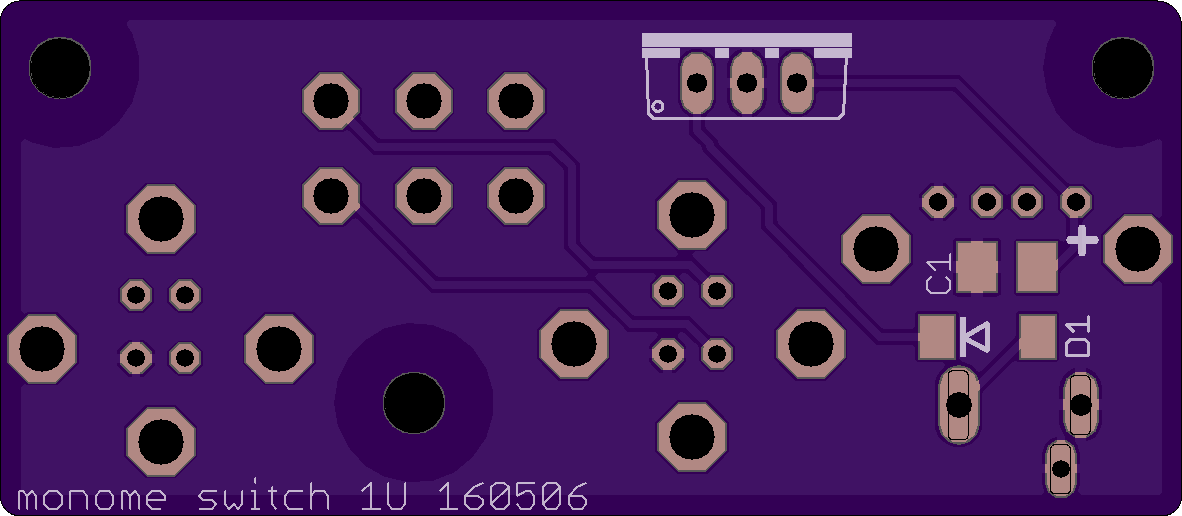

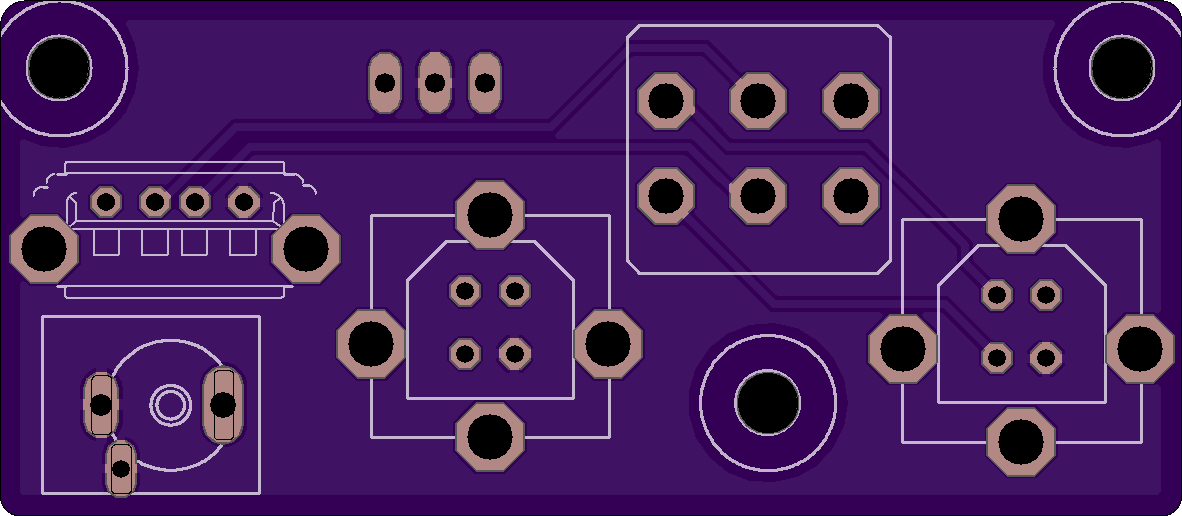

2 layer board of 2.36x1.03 inches (60.02x26.16 mm).
Shared on May 6th, 2016 15:34.

A 1U-compatible PCB for the Monome “Switch” module. At 60mm wide, this is effectively 12HP wide; height is compatible with the Erthenvar/PulpLogic 1U format.

This has not been manufactured or tested by this creator, but as a simple re-jig of the layout, it should be correct.
