LDC FET microphone with source follower

by midwayfair.

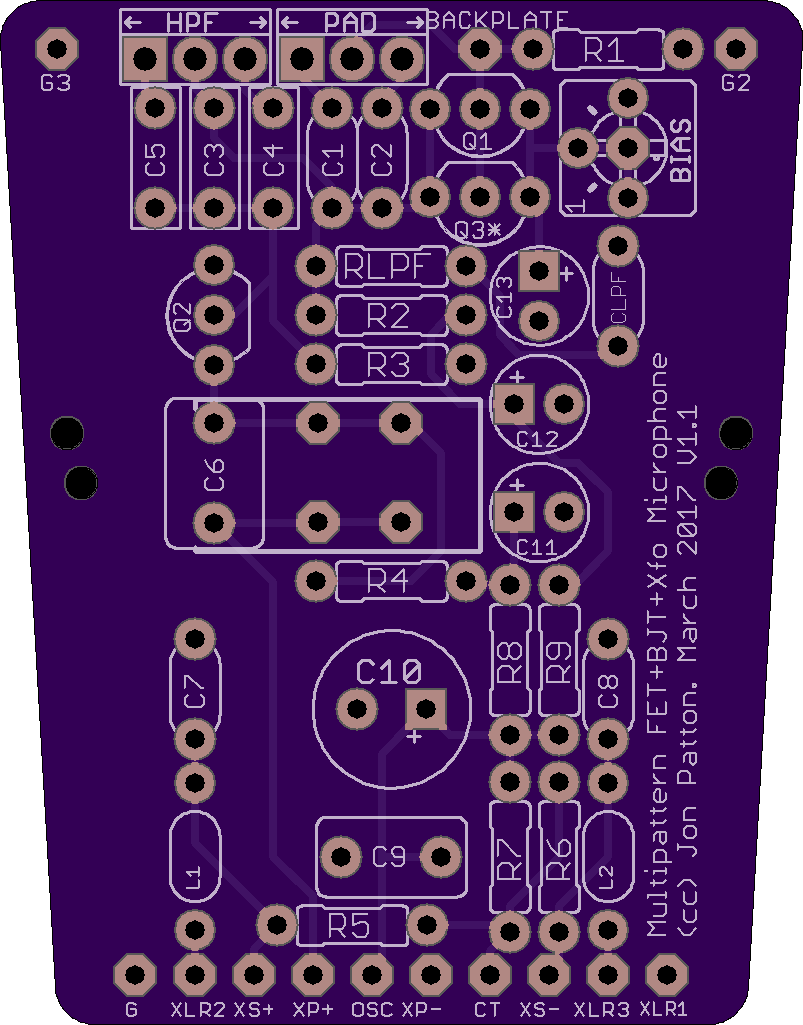

Top

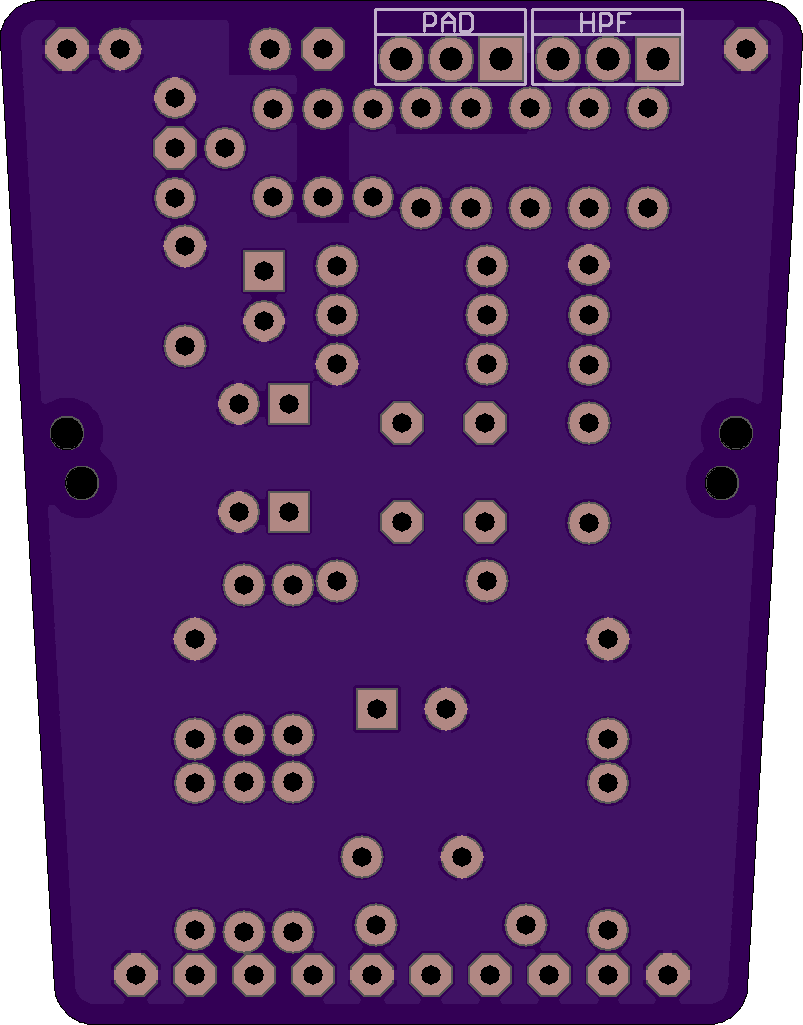

Bottom

2 layer board of 1.61x2.05 inches (40.77x52.02 mm).
Shared on March 11th, 2017 23:50.

A FET+source follower transformer-coupled mic. Requires polarization voltage! (Use the oscilltor PCB.)
