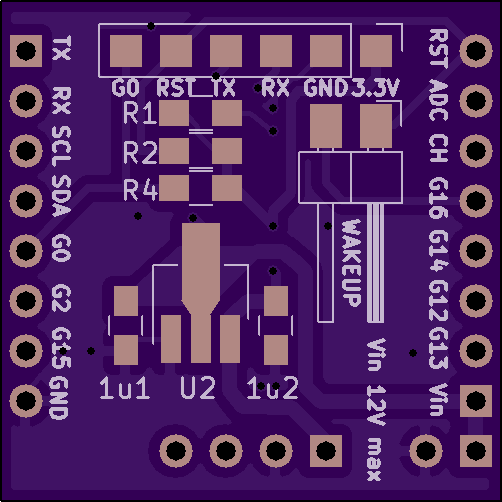

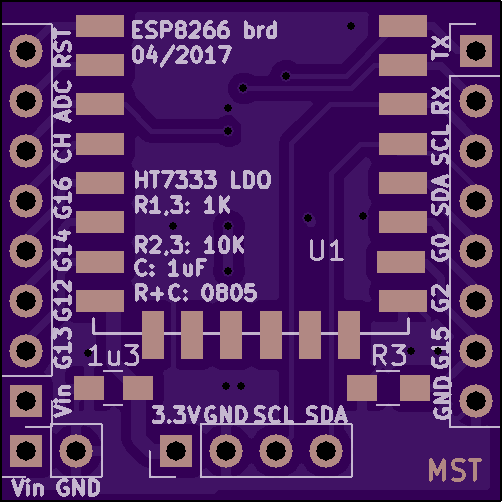

ESP8266 1²inch board

2 layer board of 1.00x1.00 inches (25.50x25.50 mm).
Shared on April 16th, 2017 08:08.

ESP8266 board designed with KiCAD, HT7333 LDO, I²C header

Copy this HTML into your page to embed a link to order this shared project

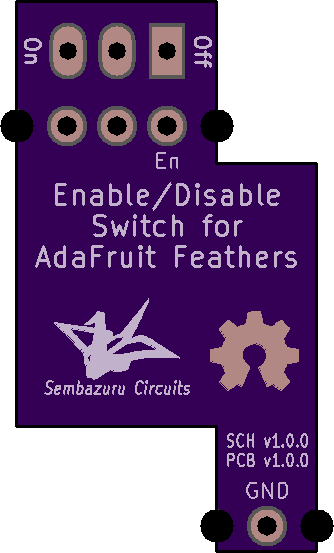

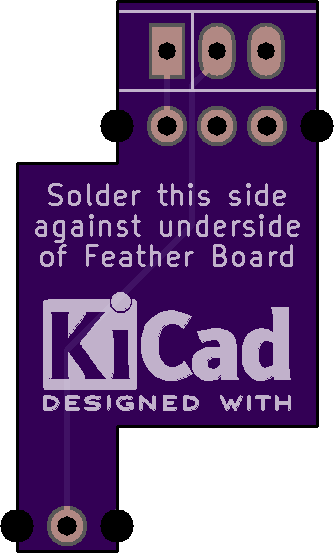

Feather Enable Switch - v1.0.0

2 layer board of 0.61x1.11 inches (15.39x28.09 mm).
Shared on April 16th, 2017 06:02.

Enable/Disable switch backpack for AdaFruit Feather boards.

Order 0.8mm thick boards for best results.

Use AdaFruit #508 slide switch or mechanical equivalent.

See https://github.com/Sembazuru/FeatherSwitch for design files.

Copy this HTML into your page to embed a link to order this shared project

2 layer board of 1.02x5.75 inches (26.01x146.02 mm).
Shared on April 15th, 2017 21:49.

Bodenfeuchtesensor mit Piep, Blink und drück

Copy this HTML into your page to embed a link to order this shared project

2 layer board of 0.82x0.91 inches (20.73x23.01 mm).
Shared on April 15th, 2017 21:04.

SOP16-W / SSOP-16 to DIP breakout board with additional DS3231 RTC chip peripherals (I2C pull-ups, reset button, and RTC backup battery)

Copy this HTML into your page to embed a link to order this shared project

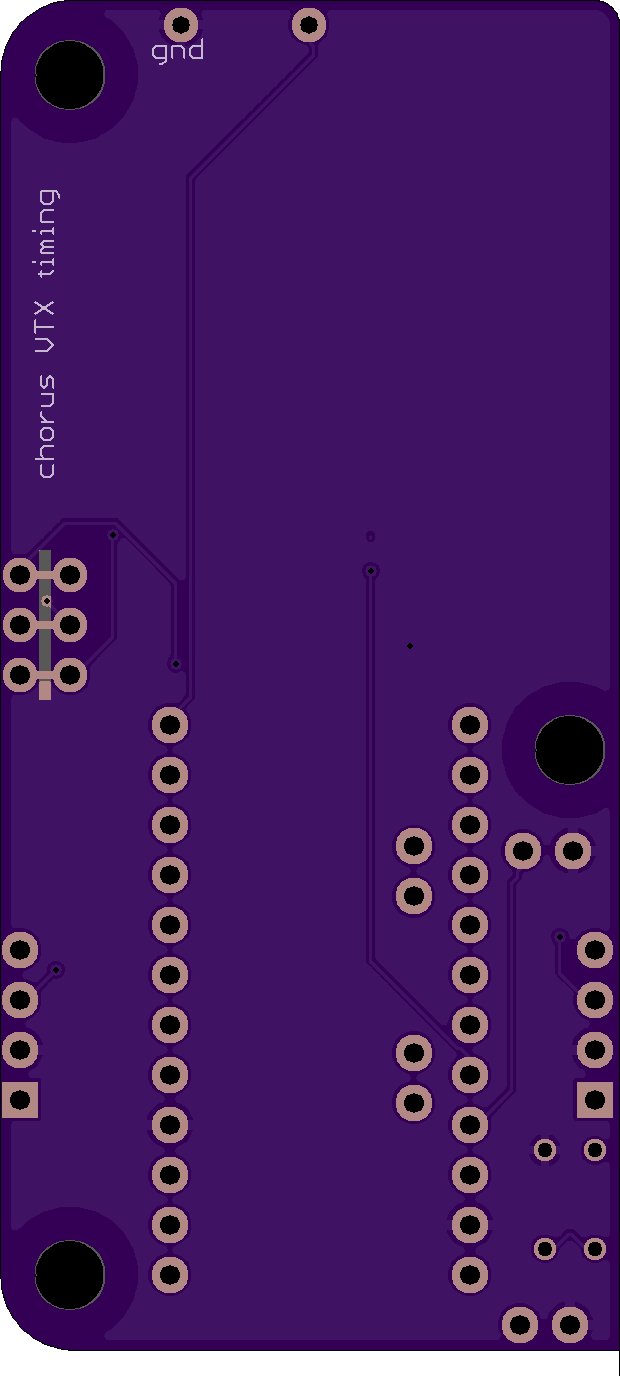

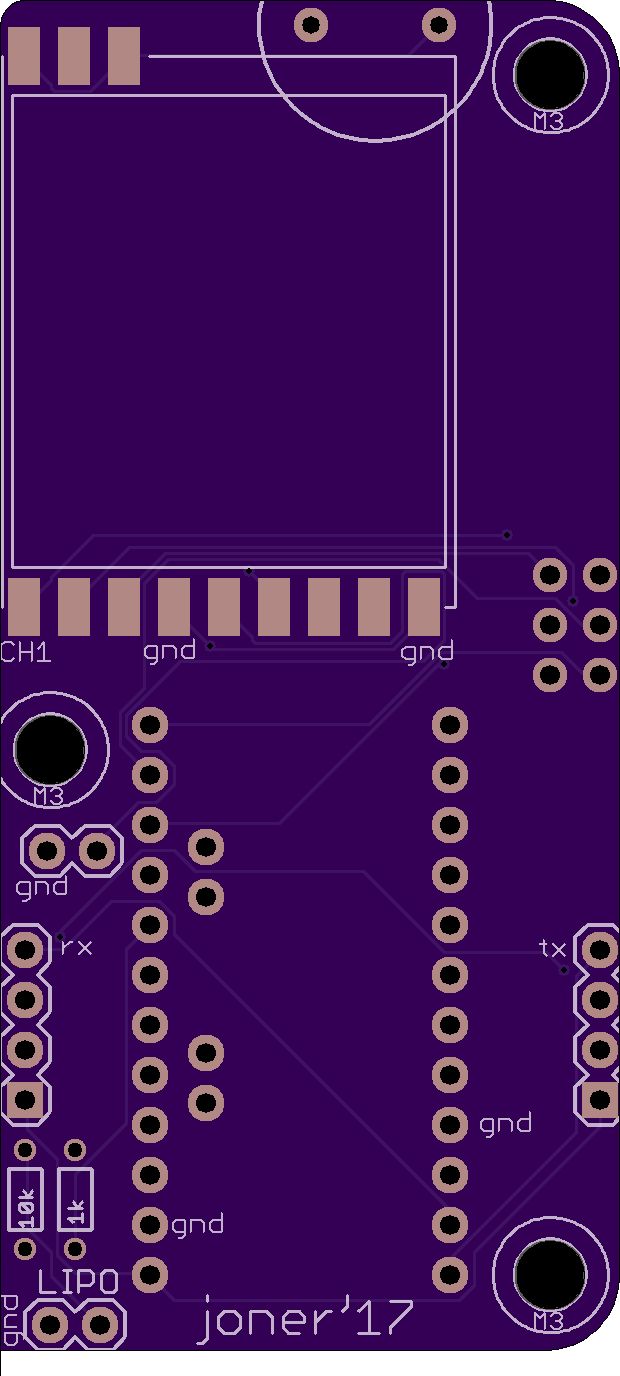

2 layer board of 1.24x2.75 inches (31.45x69.85 mm).
Shared on April 15th, 2017 20:18.

https://github.com/voroshkov/Chorus-RF-Laptimer
