RaspNRF24-V2.brd

2 layer board of 1.40x0.75 inches (35.59x19.05 mm).
Shared on April 13th, 2017 15:47.

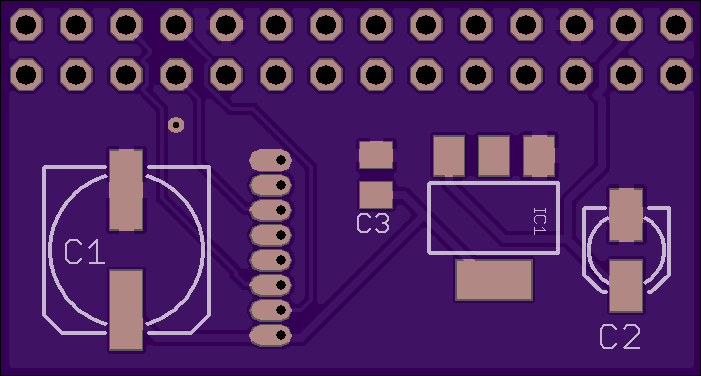

RaspNRF24-V2, tested to work. C1 is 100uF C2 is 10uF C3 is 100nF IC1 is ASM1117 3.3V The NRF24L01 is a module with ceramic antenna. This sits on the top side. The IRQ pin is connected to PIN18 on the Raspberry header. The two row header starts at pin 1 (where JP1 is written) and sits on the bottom side. Fits inside most Raspberry2 cases.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

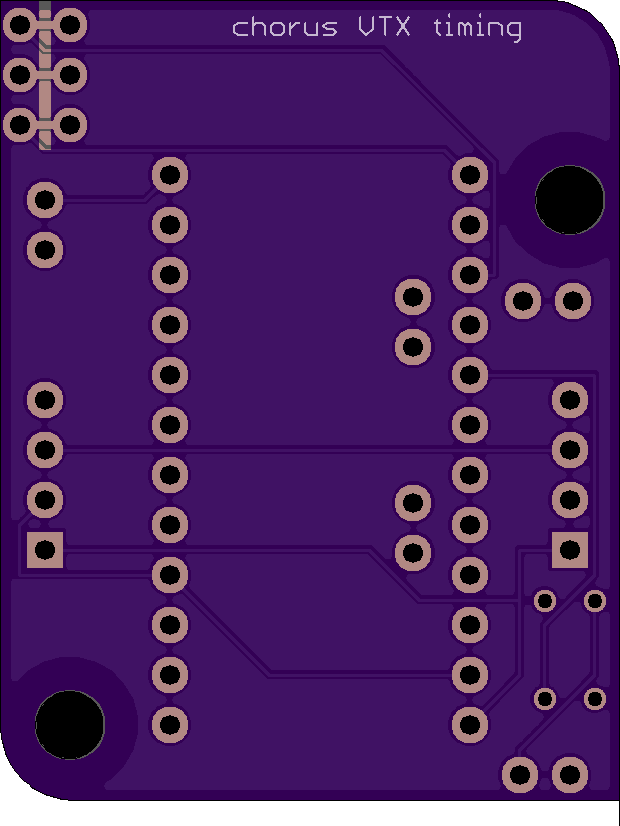

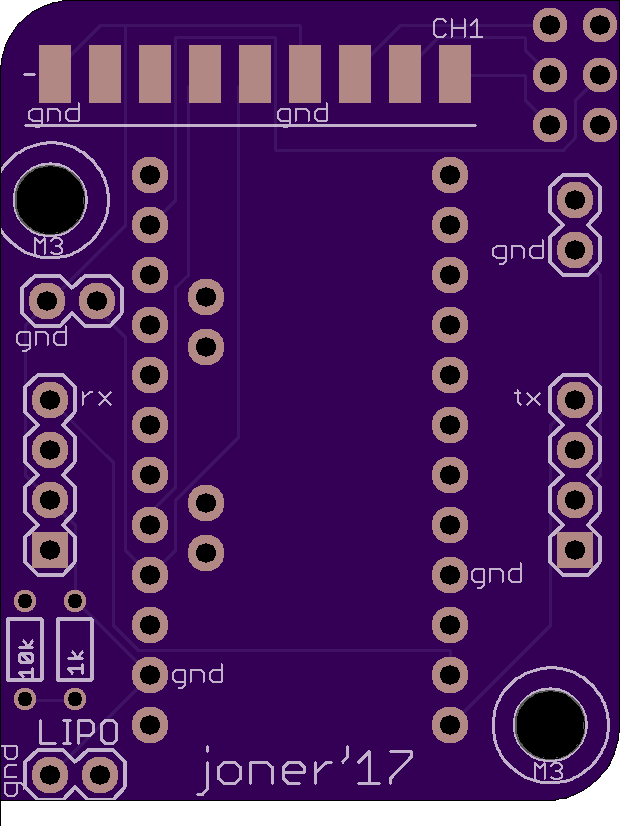

Chorus VTX PCB

joner.

2 layer board of 1.24x1.65 inches (31.45x41.91 mm).
Shared on April 13th, 2017 15:07.

PCB for https://github.com/voroshkov/Chorus-RF-Laptimer

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

board-ignition.zip

night_ghost.

2 layer board of 1.77x1.77 inches (45.01x45.01 mm).
Shared on April 13th, 2017 10:49.

HF ballast for SHAAZ heater

board for http://www.gorbunov.narod.ru/grubka.html

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

board_roundGPS.zip

night_ghost.

2 layer board of 1.39x1.39 inches (35.20x35.20 mm).
Shared on April 13th, 2017 10:48.

board for GMS-g9 GPS module

This board designed for transplanting parts from this board - https://ru.aliexpress.com/item/FREE-SHIPPING-GPS-GLONASS-Module-GNSS-MT3333-PA6E-CAM-FGPMMOPA6E-breakout-Titan-1-10Hz-115200bps/32440564245.html
