RCNX Exchanger Test R100 MFG 07APR2017.zip
by
Reconyx.
2
layer board of
3.71x1.78
inches
(94.16x45.24
mm).
Shared on
April 7th, 2017 18:31.
Exchanger test board
DO NOT USE: E-Paper Breakout Board for Teensy
by
fustini.
2
layer board of
3.16x1.67
inches
(80.37x42.29
mm).
Shared on
April 7th, 2017 18:25.
WARNING: THIS PROJECT IS OLD
NEW VERSION: https://oshpark.com/shared_projects/1CiimZcf
Breakout board designed in KiCad to connect Pervasive Displays 2.15" E-Paper (E2215CS062) to Teensy 3.2 or Teensy LC. Based Teensy E-Paper Shield by Jarek Lupinski in EAGLE.
My goal is to create a name badge I can wear at conferences and Maker Faires. This was first step to verify the KiCad schematic and KiCad footprints work. I will post more information as the badge project progresses.
KiCad PCB design files:
- repo: pdp7/kicad-teensy-epaper
- commit: 54458f4
- requires KiCad library wickerlib by Jenner Hanni of Wickerbox Electronics for the 34-position FPC connector that the e-paper display plugs into:
Bill of Materials (BoM)
Source Code
- uses EPD215 Arduino Library by Jarek Lupinski for his E-paper Teensy Shield
- requires pinout modification:
- EpaperQuoteDisplay.ino
EPD215 epaper( 17, 16, 14, 15, 13, 11 );
Photos
Video
Related: Jarek’s ePaper Teensy shield
- OSH Park shared project: Teensy e-Paper shield
- My repo of Jarek’s design files: TeensyEpaperShield

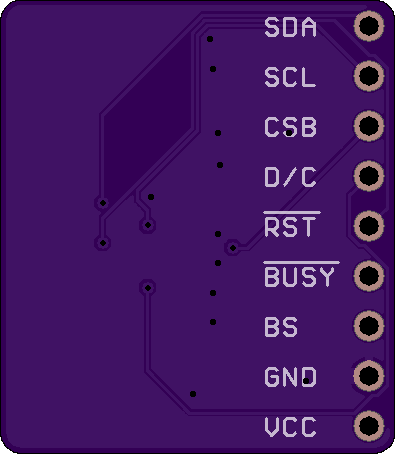

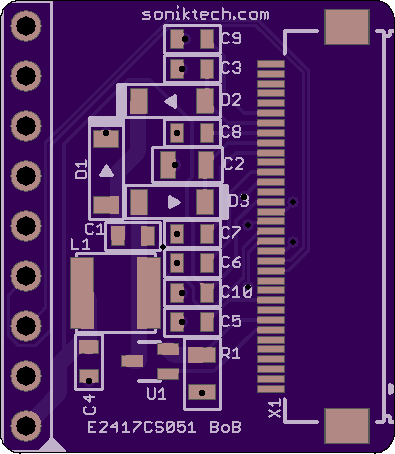

E2417CS051 BoB
by
jarek.
2
layer board of
0.79x0.91
inches
(20.02x23.01
mm).
Shared on
April 7th, 2017 17:48.

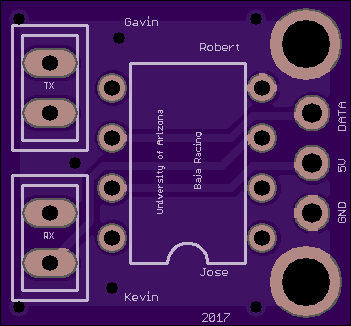

IR Sensor Board v0.0.1
by
kairu.
2
layer board of
0.70x0.65
inches
(17.78x16.54
mm).
Shared on
April 7th, 2017 17:31.
Part of an IR tachometer
Designed for the University of Arizona Baja Racing Team by students in ECE 372, as part of their final project.

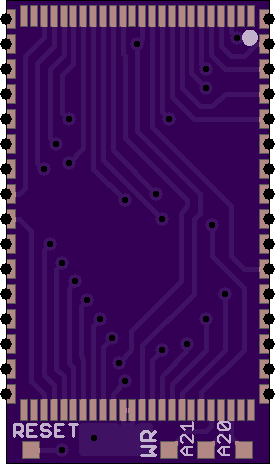

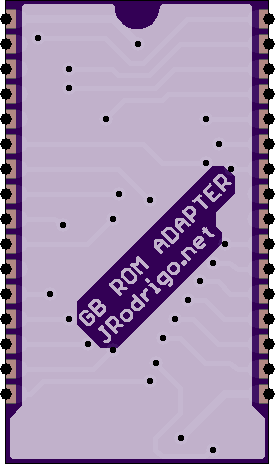

Flash Memory Adapter for Game Boy
by
JRodrigo.
2
layer board of
0.53x0.93
inches
(13.36x23.49
mm).
Shared on
April 7th, 2017 15:23.
AM29F016/32 flash memory adapter board to DIY a Game Boy flash cartridge.
J.Rodrigo Website Documentation - How To || GitHub Repo
If you like one of these tiny purples you can order some boards on OSH Park, or order boards with/out pre-solded ROM on my Tindie Store to support me.
