xszv2
by
sleepybishop.
2
layer board of
2.13x1.10
inches
(54.13x27.97
mm).
Shared on
June 5th, 2017 05:22.
SMD Challenge Project
by
MakersBox.
2
layer board of
1.07x1.07
inches
(27.10x27.10
mm).
Shared on
June 5th, 2017 02:58.
BOM and schematics at https://hackaday.io/project/25265-an-unfortunate-smd-project.
Be warned that trying to hand solder a 0201 package may be considered evidence of insanity and get you committed to bad places by your loved ones or arch nemesis.
HF differential probe - v3
by
sjm.
2
layer board of
1.58x1.74
inches
(40.21x44.22
mm).
Shared on
June 4th, 2017 21:57.

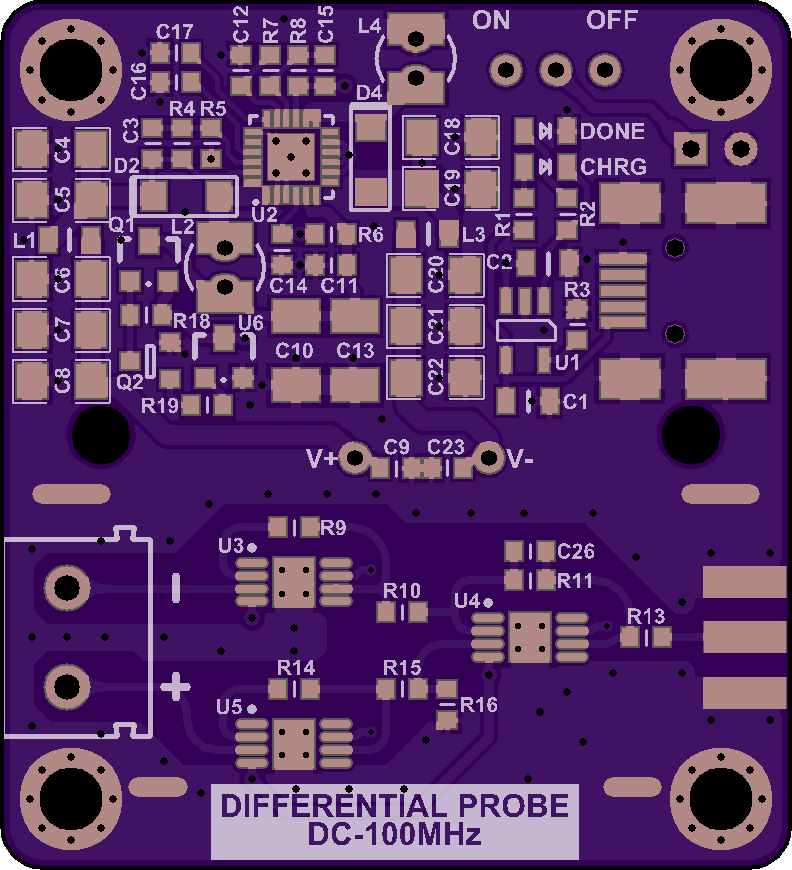

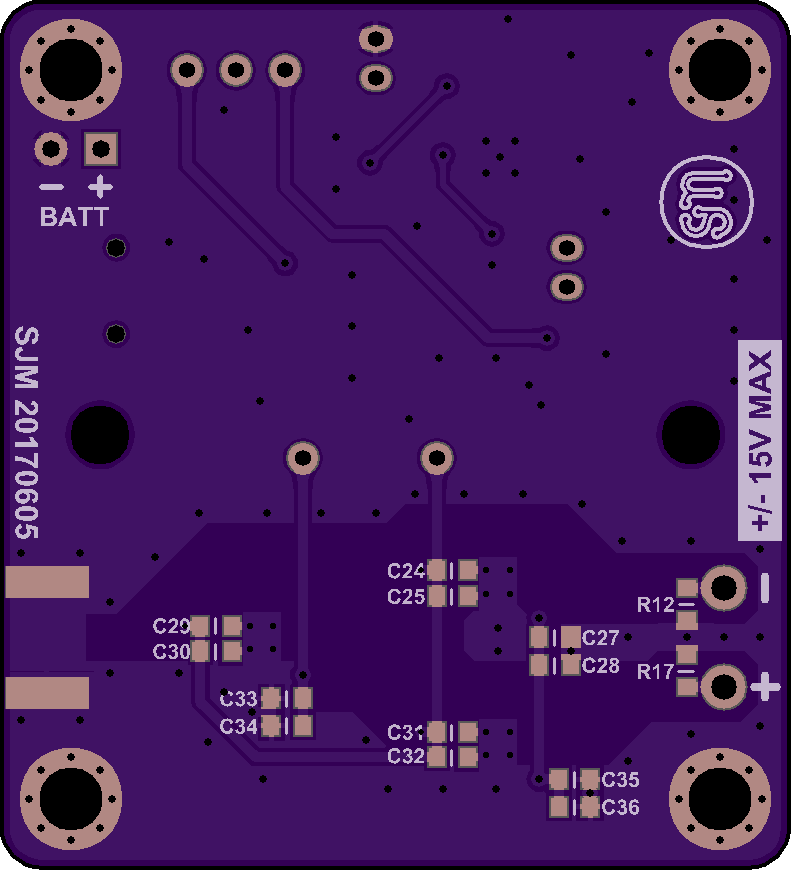

Differential probe, DC-100MHz, +/-15V input, powered from a single LiPo cell with USB charging.
More details here: http://stevenmerrifield.com/diff-probe/index.html
Shine On You Crazy KiCad
by
ChrisGammell.
2
layer board of
1.01x1.01
inches
(25.55x25.55
mm).
Shared on
June 4th, 2017 20:13.
This is a board created for a small series teaching how to use KiCad. It’s called Shine On You Crazy KiCad. You can view the entire course for free on Contextual Electronics
ATtiny85 LED Strip Dimmer
by
RoboUlbricht.
2
layer board of
1.85x1.95
inches
(47.09x49.63
mm).
Shared on
June 4th, 2017 18:31.
