ATtiny85 LED Strip Dimmer

2 layer board of 1.85x1.95 inches (47.09x49.63 mm).
Shared on June 4th, 2017 18:31.

BOM

Order board. Download. Permalink. Embed order link.

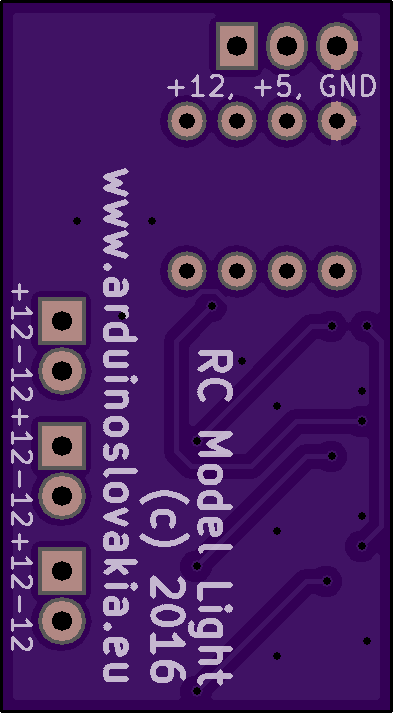

RC Model Light

2 layer board of 0.79x1.43 inches (19.96x36.22 mm).
Shared on September 25th, 2016 20:02.

3 short blinks with 3x 3W LEDs.

• Microcontroller - ATtiny85 (Arduino IDE)
• Video of blinks.
• Source code
• Schematic

Order board. Download. Permalink. Embed order link.

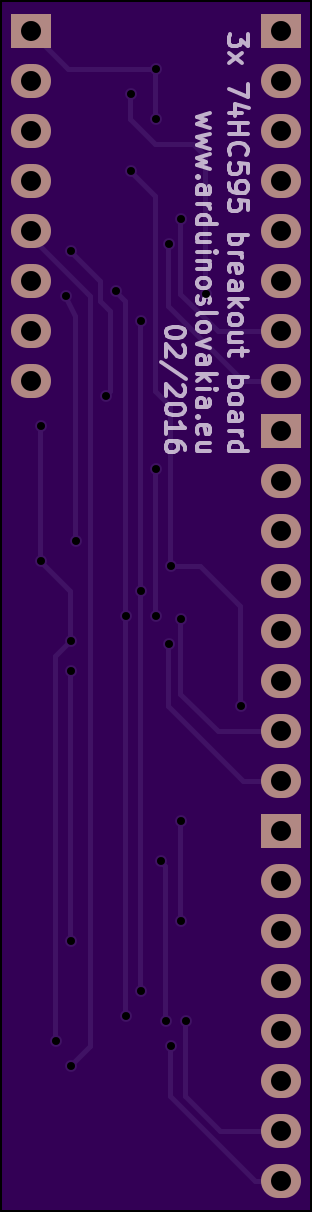

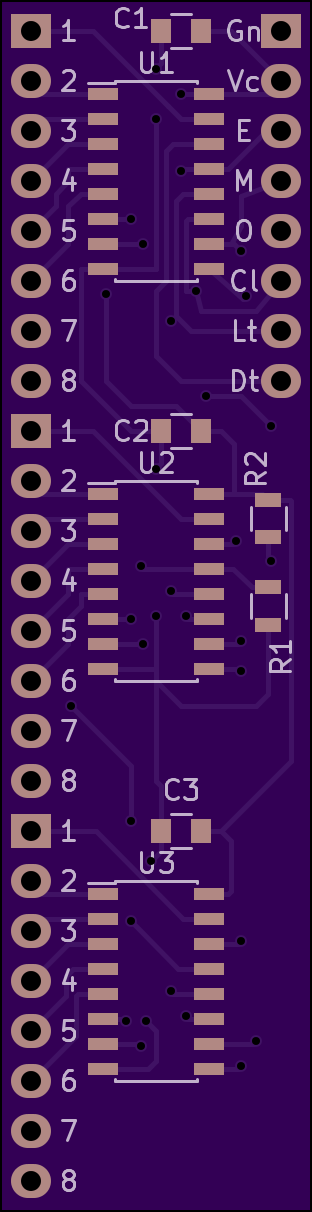

SMD 3x 74HC595 Breakout Board

2 layer board of 0.62x2.42 inches (15.85x61.57 mm).
Shared on September 5th, 2016 09:16.

Order board. Download. Permalink. Embed order link.

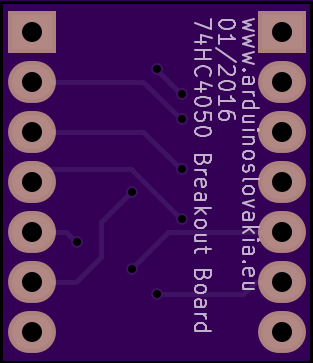

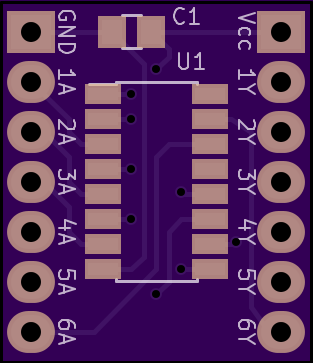

SMD 74HC4050 Breakout Board

2 layer board of 0.63x0.73 inches (15.90x18.44 mm).
Shared on February 26th, 2016 08:41.

74HC4050 is a level shifter. It has 6 one way channels.

• C1 - 0.1u 0805
• IC - 74HC4050 SOIC16

Images and video

• Video of hot air soldering this board.

Order board. Download. Permalink. Embed order link.

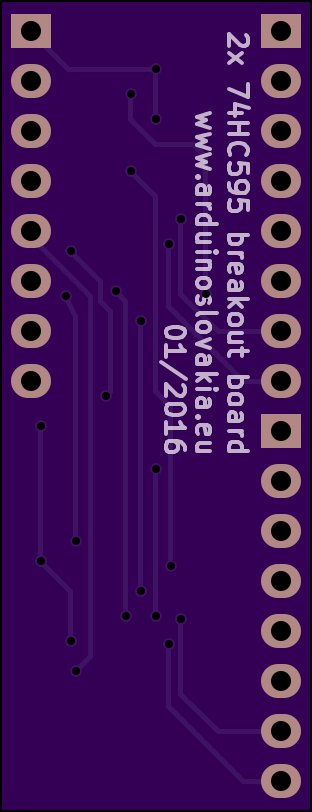

SMD 2x 74HC595 Breakout Board
