OSH Park
Shared projects

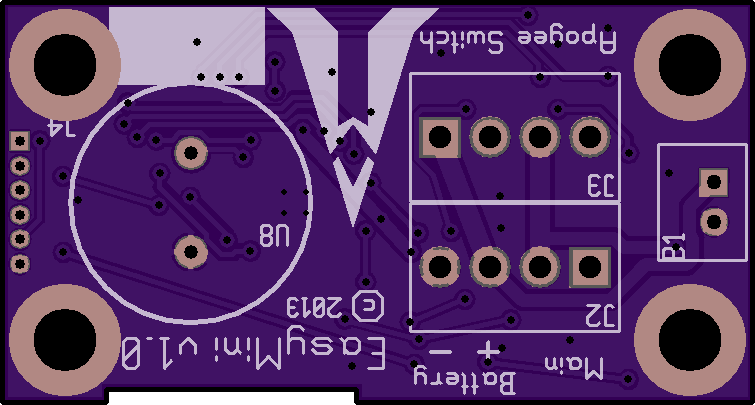

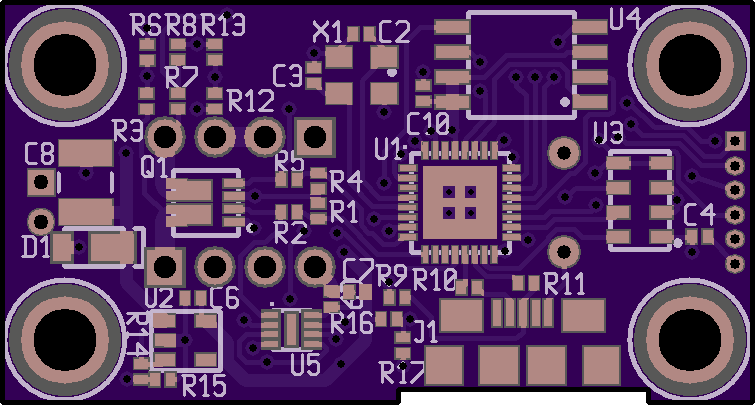

EasyMini v1.0
by
keithp.
2
layer board of
1.51x0.81
inches
(38.38x20.57
mm).
Shared on
January 19th, 2014 16:50.
2 channel baro-only rocket flight computer

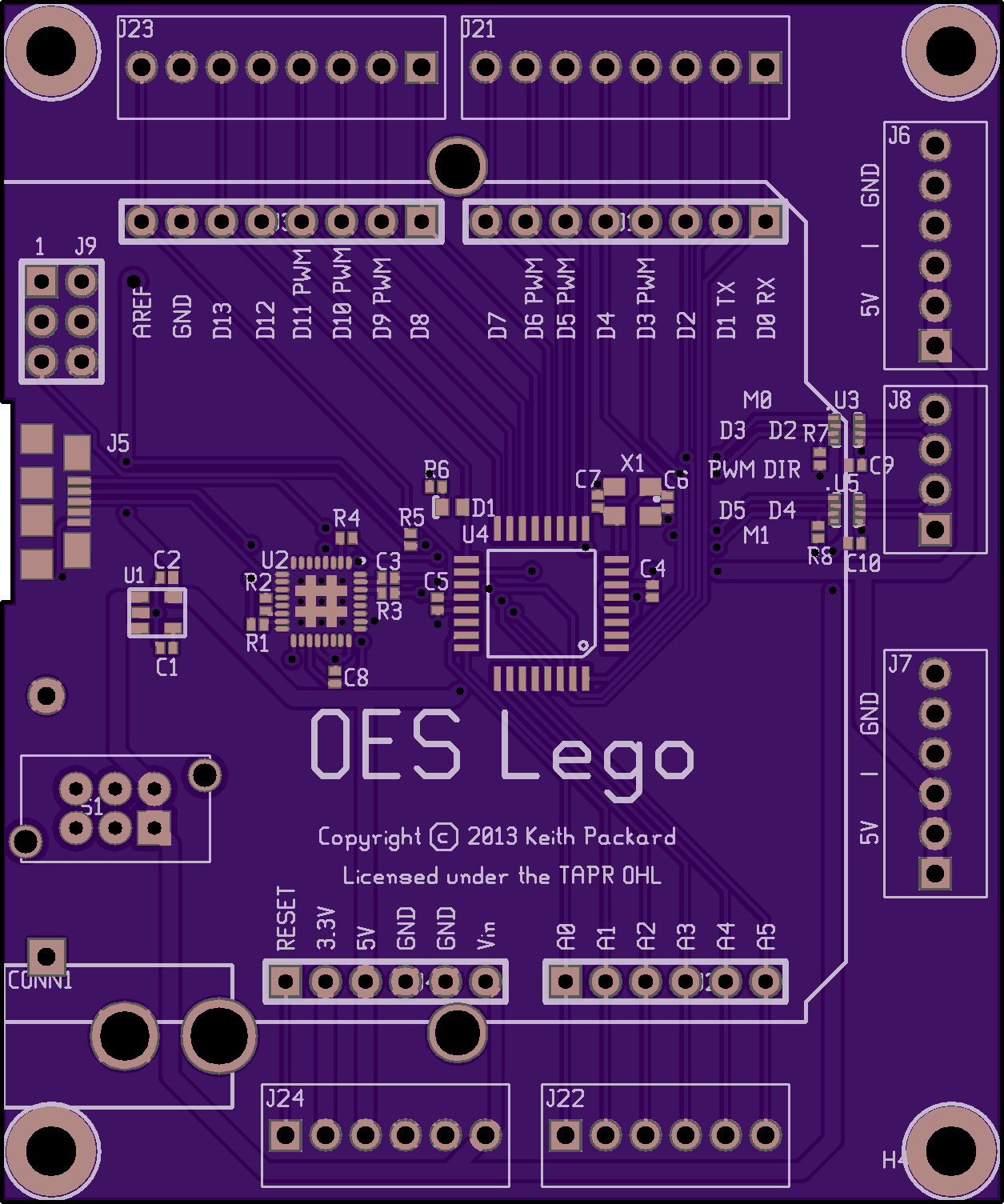

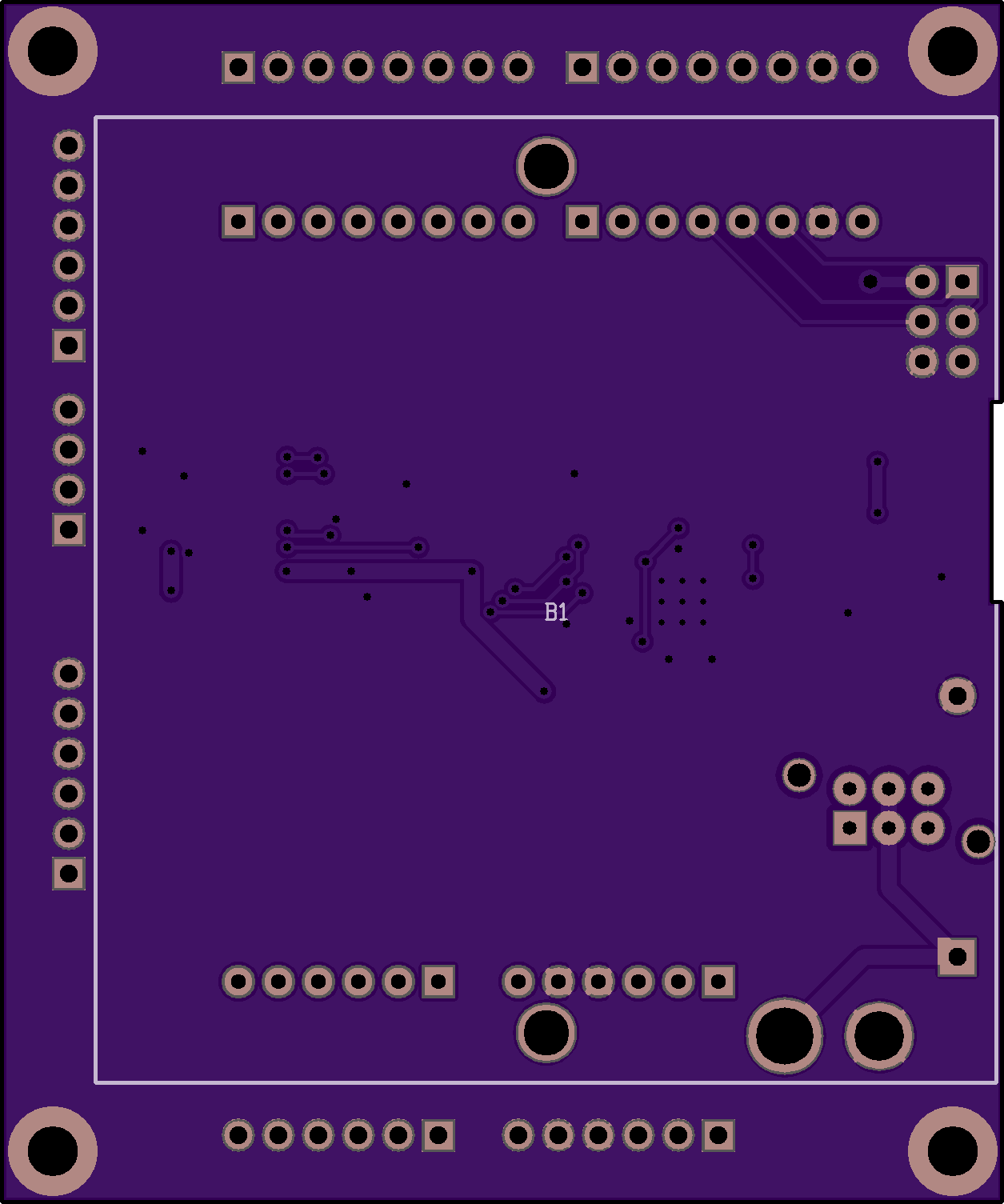

Lego Arduino
by
keithp.
2
layer board of
2.51x3.01
inches
(63.75x76.45
mm).
Shared on
January 19th, 2014 16:50.
Arduino board for OES Lego program
SarahMouse
by
keithp.
2
layer board of
2.26x1.09
inches
(57.40x27.69
mm).
Shared on
January 19th, 2014 16:50.
Heat mapping robot controller
XMEGA E5 dev board
by
mokus.
2
layer board of
1.11x0.81
inches
(28.09x20.47
mm).
Shared on
January 19th, 2014 09:41.
A simple dev board for the XMEGA E5 microcontroller (TQFP package). Provides AVcc conditioning, a PDI header, a crystal oscillator, and access to all I/O pins except port R (which is used for the crystal). Ports A and C are available in a DIP layout for breadboarding, but to save space port D is on a 2-row header.
gEDA schematics and BOM at: https://github.com/mokus0/schematics/tree/master/xmega-e5-target
AKA mod of Adafruit BBB Proto Cape
by
akamediasystem.
2
layer board of
2.83x2.15
inches
(71.91x54.74
mm).
Shared on
January 18th, 2014 19:56.
Modification of Adafruit’s excellent BBB Proto Cape
