Dangerpants Labs Air Data Instrument v1.2
by
DangerpantsLabs.
2
layer board of
3.21x2.06
inches
(81.53x52.35
mm).
Shared on
January 15th, 2014 22:39.
A small and lightweight instrument to display airspeed, altitude, temperature and current time. See the ADI project page for a bill of materials, instructions, firmware, and documentation. Use with BMP085.
8-SOIC/EP Breakout Board
by
Eric.
2
layer board of
0.51x0.41
inches
(12.88x10.34
mm).
Shared on
January 15th, 2014 18:06.
Cost: $1.00 for three.
Description:
Breakout board for 8-SOIC/EP package. Converts 8-SOIC/EP to breadboard-friendly 0.1-inch pitch by 0.4-inch width through-hole format.
Wide traces on all pins, suitable for use with power packages. For ICs with exposed pad, it is provided, with thermal vias to bottom side copper pour and unmasked copper on bottom side to aid soldering.
The lower-middle through-hole pad is connected to the IC exposed pad; solder a wire in this hole and jumper to appropriate IC pin.
Pins numbered on top side for quick reference and silk screen area on reverse to write part number, pin annotations, etc.
This is intended as a breadboard testing aid only. It will not provide adequate heatsinking to reach datasheet thermal limits, so don’t turn the wick up all the way!
SOT-23 & SOT-3X3 Breakout Board
by
Eric.
2
layer board of
0.41x0.31
inches
(10.34x7.80
mm).
Shared on
January 15th, 2014 17:31.
UPDATED!
Cost: $0.60 for three.
Description:
Breakout board for SOT-23, SOT-323, SOT-343, SOT-353 and SOT-363 packages. Converts these 3, 4, 5 and 6-pin SMD components to breadboard-friendly 0.1-inch pitch by 0.3-inch width through-hole format. Pins numbered for quick reference.
Real Time Clock and Sensor Shield
by
jtilghman.
2
layer board of
2.70x2.10
inches
(68.58x53.31
mm).
Shared on
January 15th, 2014 16:17.

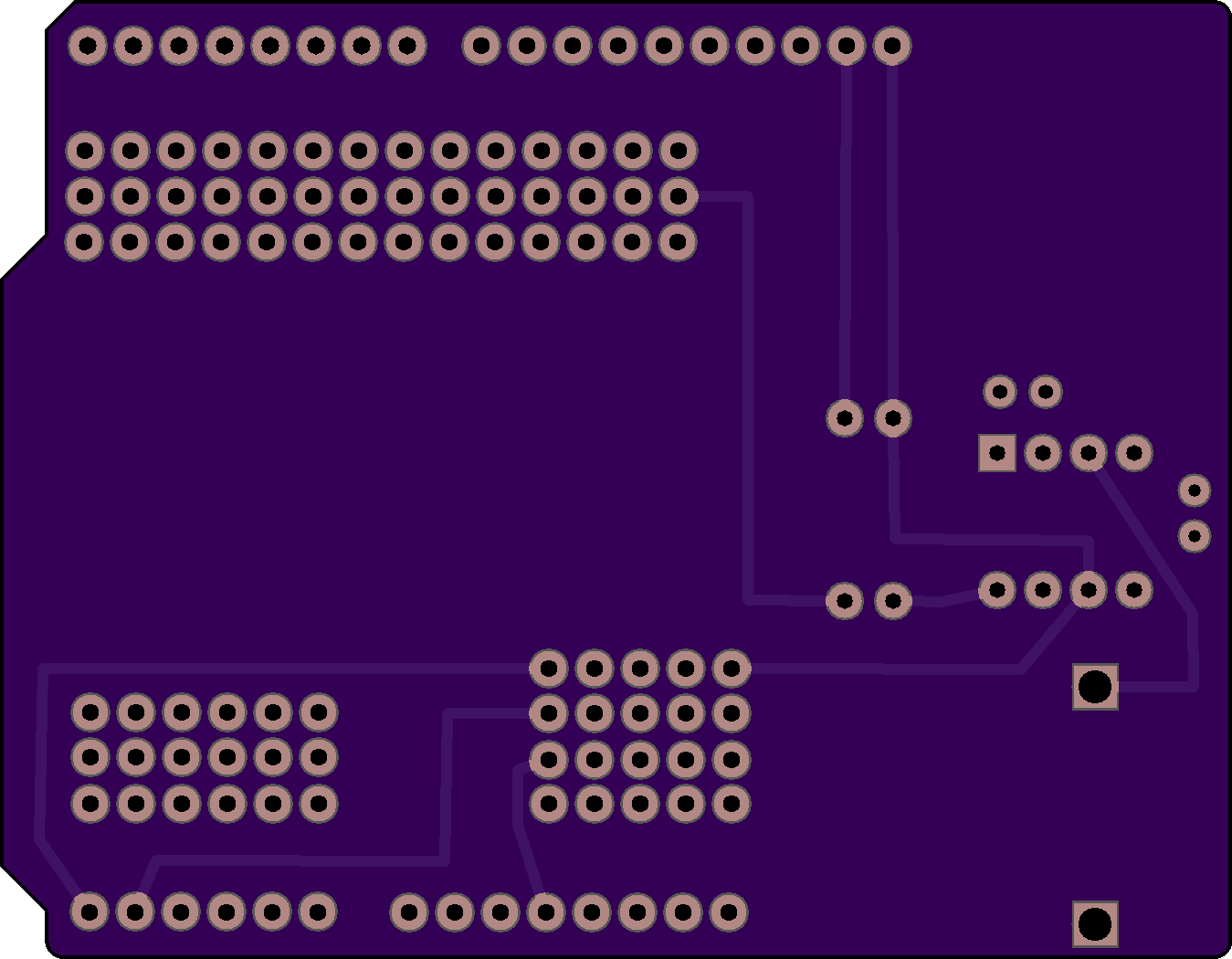

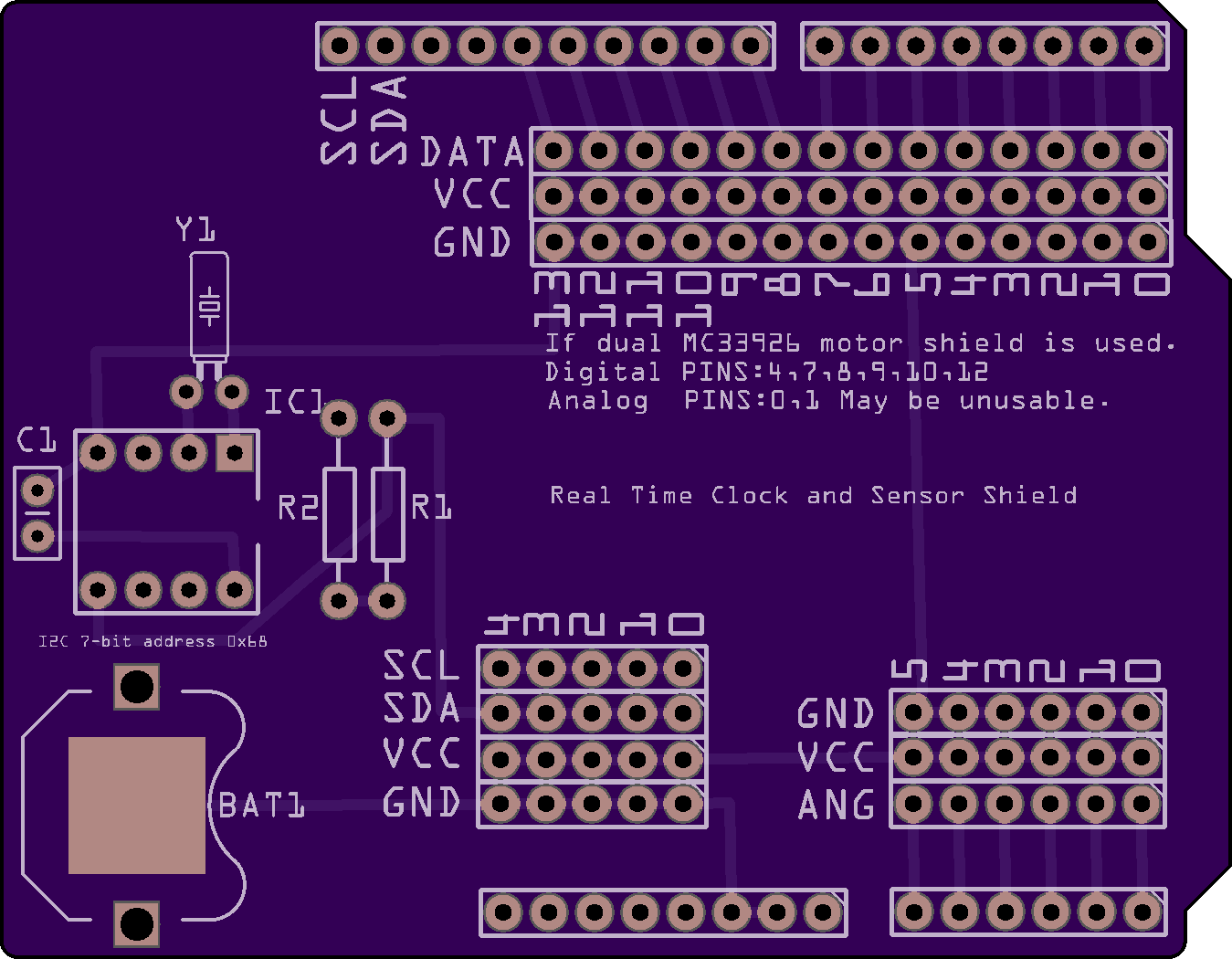

DS1307 Real Time Clock and Sensor Shield
Needed some place to plug in my PING)))’s and wheel encoders for my robot. Thought I would add an RTC while I was at it.
This is my 1st PC board, and I haven’t received the board yet so this isn’t tested.
LiPo Charger
by
Lukaszp.
2
layer board of
1.44x1.10
inches
(36.50x27.94
mm).
Shared on
January 15th, 2014 12:55.

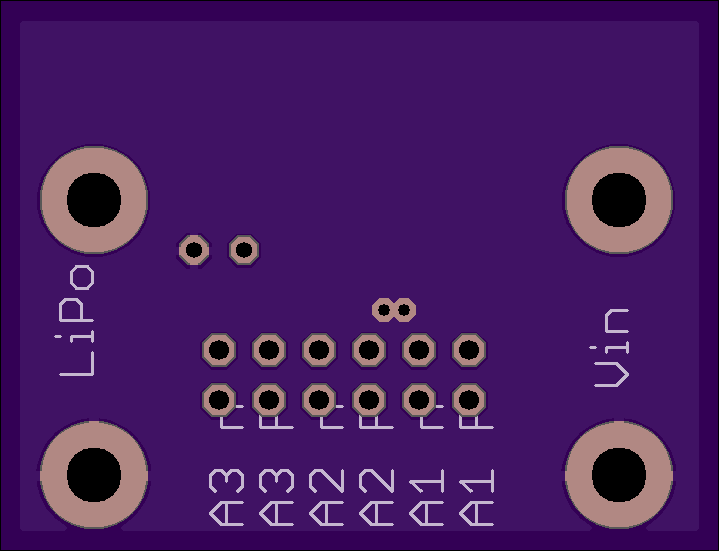

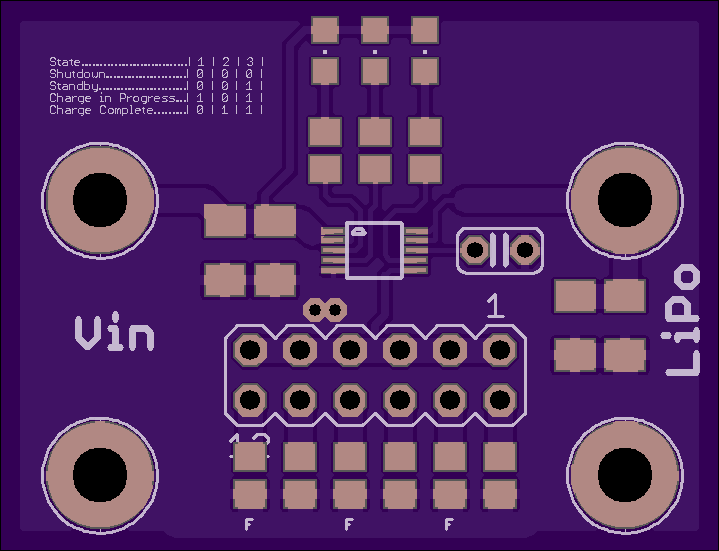

MCP73833 LiPo batty charger
