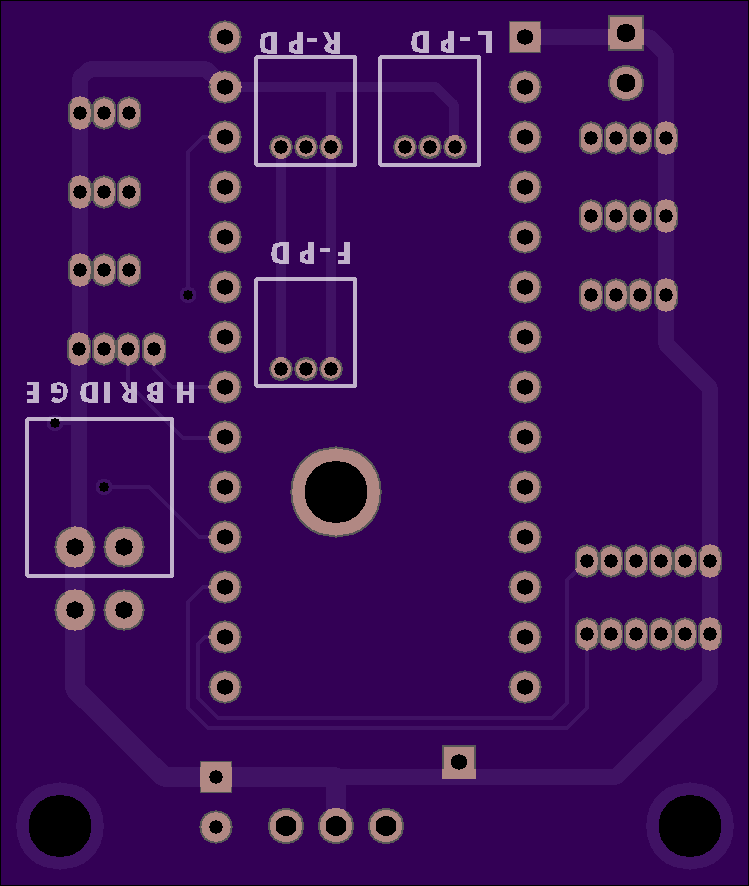

Atiny Bitsy Spider
by
Ladvien.
2
layer board of
0.88x1.16
inches
(22.25x29.51
mm).
Shared on
January 4th, 2014 07:31.
ATtiny85 and HM-10
http://letsmakerobots.com/node/39795

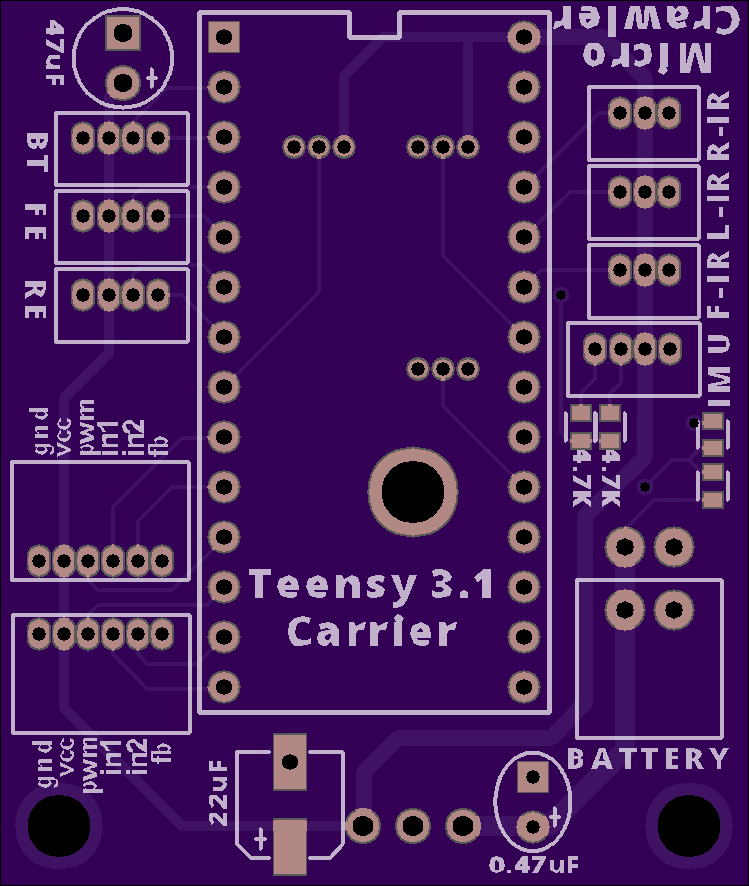

Teensy 3.1 Carrier Board
by
JonHylands.
2
layer board of
1.50x1.77
inches
(38.02x45.03
mm).
Shared on
January 3rd, 2014 23:19.
A carrier board for a Teensy 3.1 inside a small crawler robot - Github

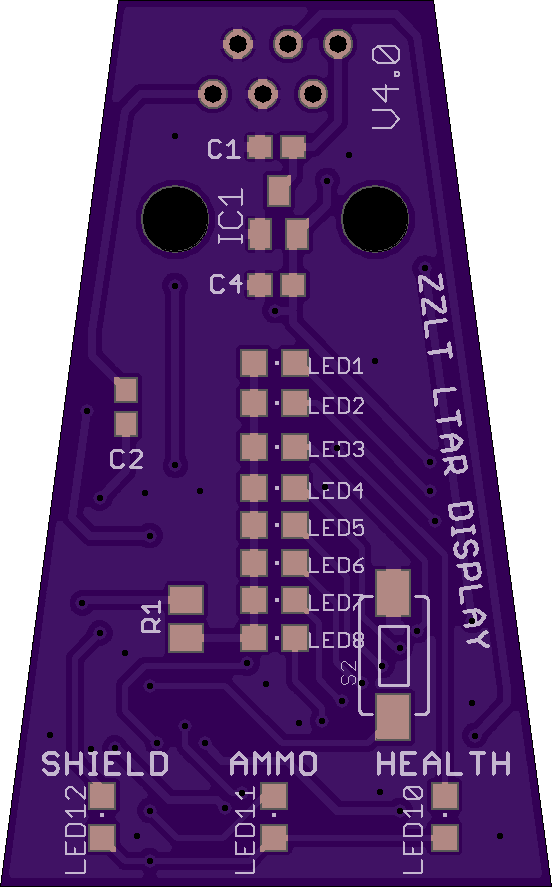

LTAR Display V4.0
by
izzy84075.
2
layer board of
1.10x1.77
inches
(28.02x45.01
mm).
Shared on
January 3rd, 2014 21:21.
Display module for LTAR

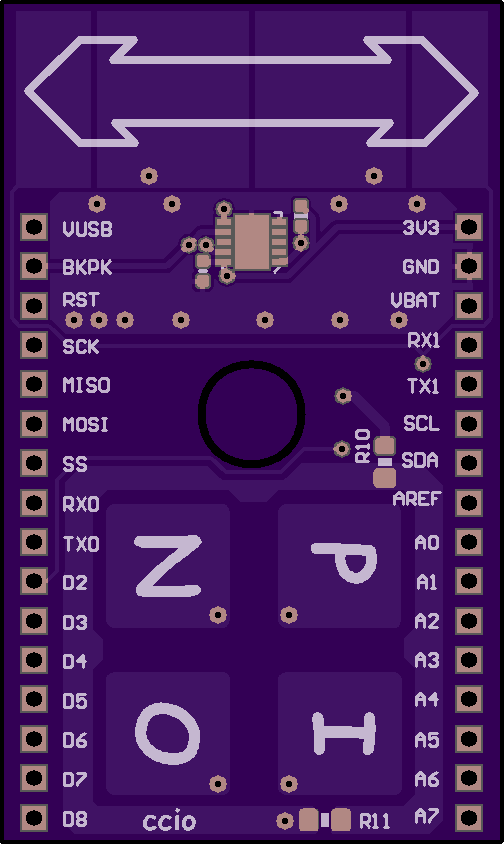

Pinoccio Capacitive Backpack v0.1
by
Cisco25.
2
layer board of
1.01x1.69
inches
(25.60x42.90
mm).
Shared on
January 3rd, 2014 20:30.
Buttons, proximity, slider
Trail Traffic Counter v4
by
chipmc.
2
layer board of
2.34x2.00
inches
(59.39x50.80
mm).
Shared on
January 3rd, 2014 16:18.
Tested - Works
This is a prototype board to help me do some field testing. The intent is to place this device near an obstacle on a single track mountain bike trail and attach the accelerometer to the obstacle. Bikes that cross that obstacle will then be sensed and the time and date of the bike’s passing recorded on a microSD card.
Currently, this project uses the following Sparkfun breakout boards: DS3234 Real Time Clock, MMA8452 Accelerometer, MicroSD
The next rev should - hopefully - get rid of the breakout boards and provide a complete circuit.
If you are interested in more, my email is on the board silkscreen.
