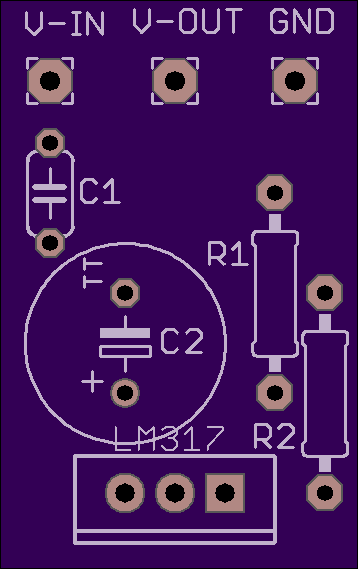

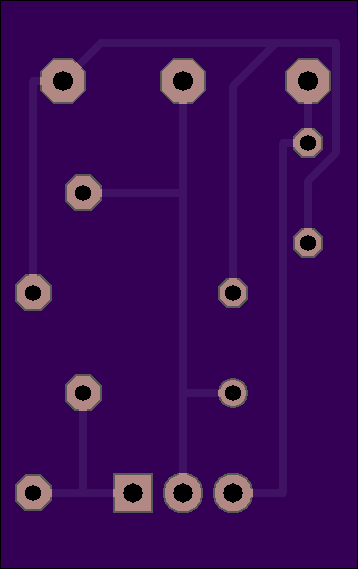

LM317 Regulator Board
by
XOIIO.
2
layer board of
0.72x1.14
inches
(18.16x28.91
mm).
Shared on
November 13th, 2013 06:42.
A simple board to set up your LM317, use a calculator to find resistor values. C1 is .01μf, c2 can be anything but 47μf is good.
TLC5947 Breakout
by
JordiOrlando.
2
layer board of
0.50x1.60
inches
(12.70x40.64
mm).
Shared on
November 13th, 2013 05:08.
QFN

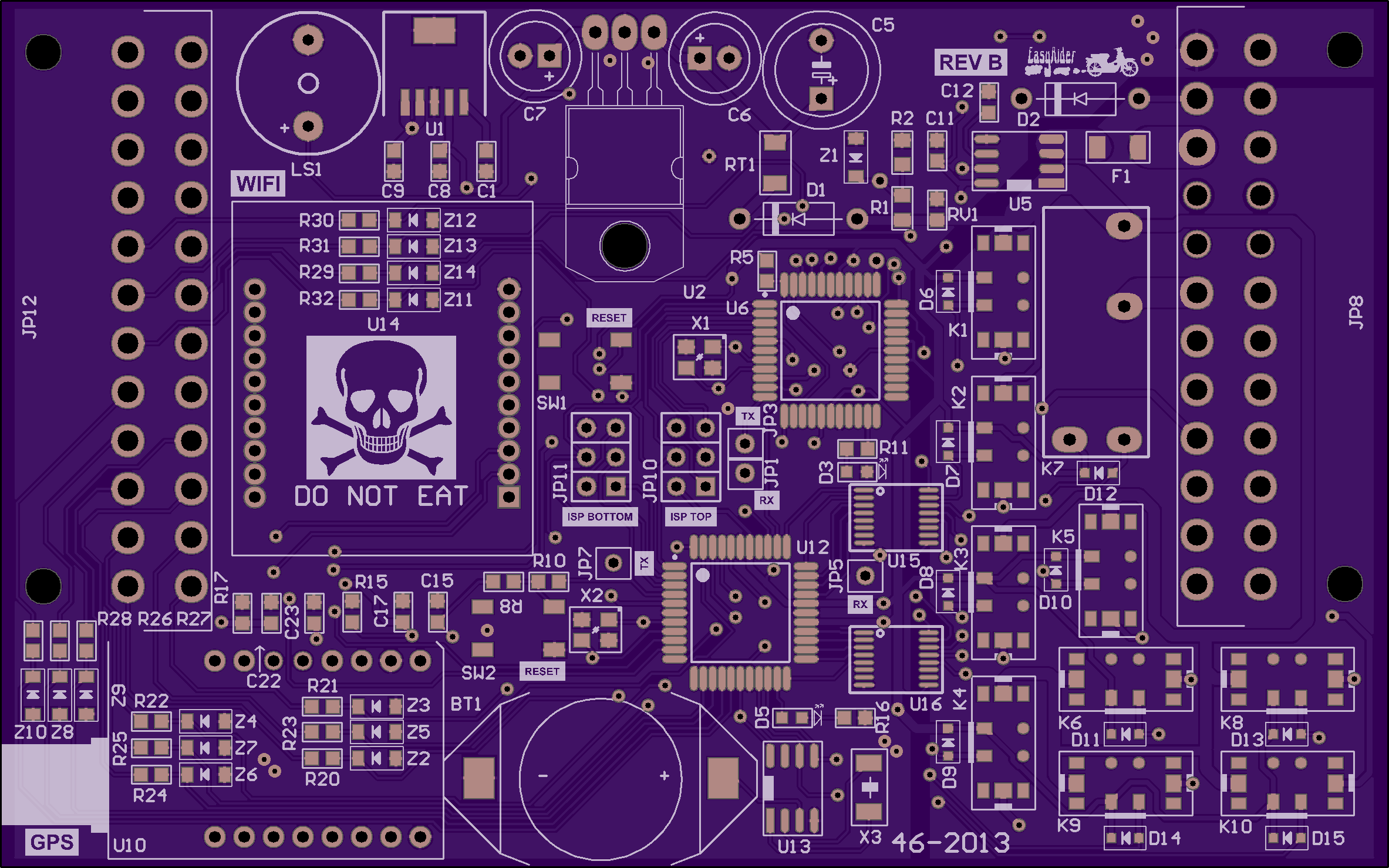

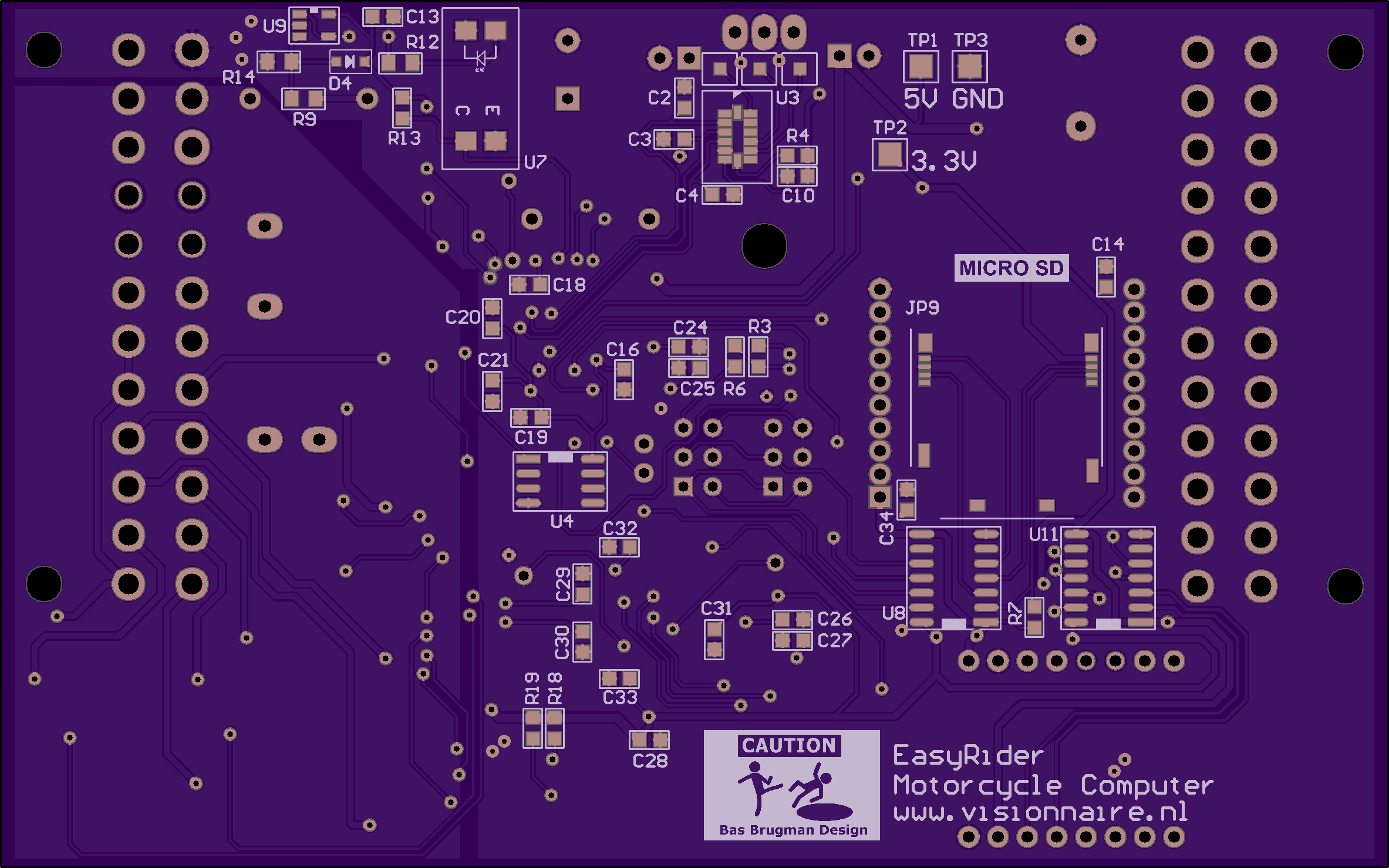

EasyRider
by
stamina.
2
layer board of
4.73x2.96
inches
(120.17x75.16
mm).
Shared on
November 12th, 2013 15:47.
Motorcycle control & telemetrics
This is rev B of the original project located here: https://github.com/stamina/easyrider
Now with mostly SMD parts, GPS and WIFI.

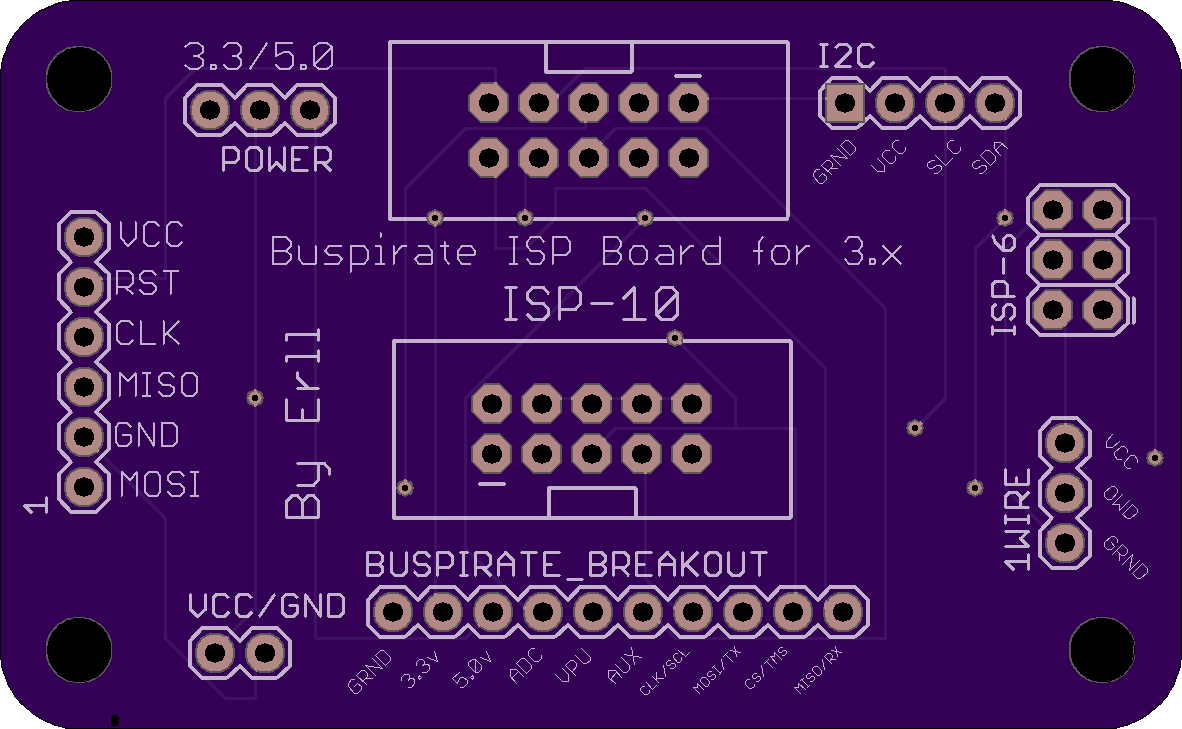

Buspirate ISP board v1.0 SOB
by
Erll.
2
layer board of
2.36x1.46
inches
(60.02x37.01
mm).
Shared on
November 11th, 2013 23:52.
DP6037 Case

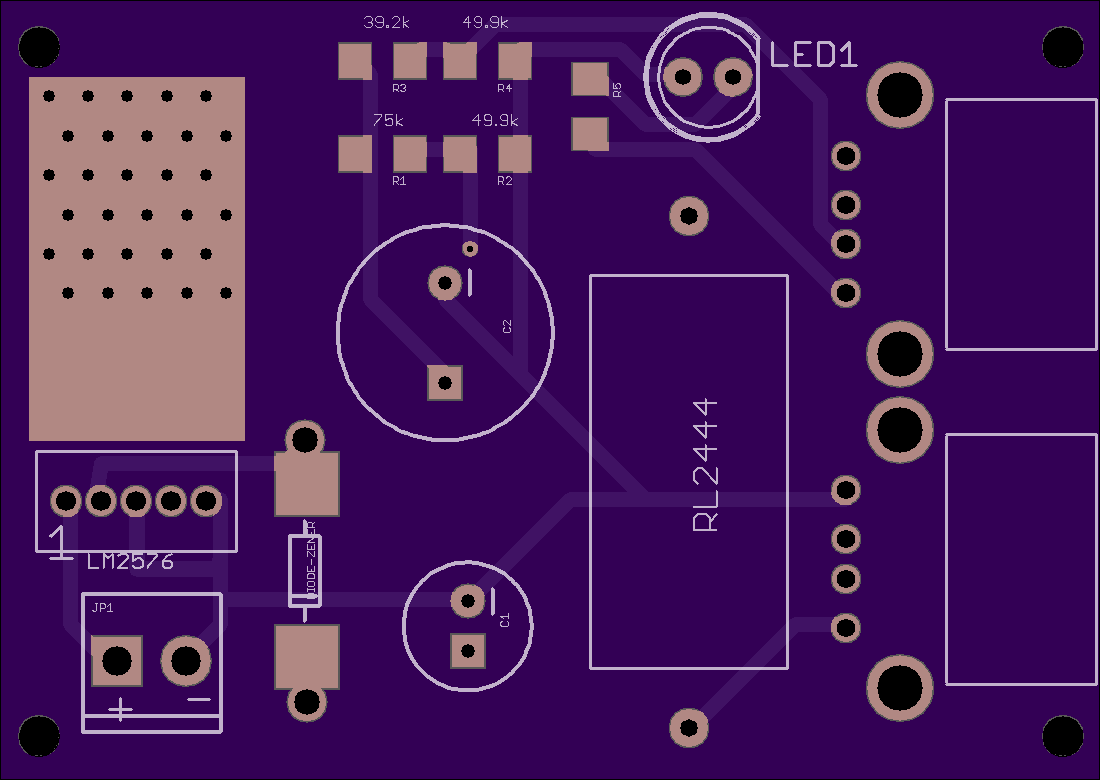

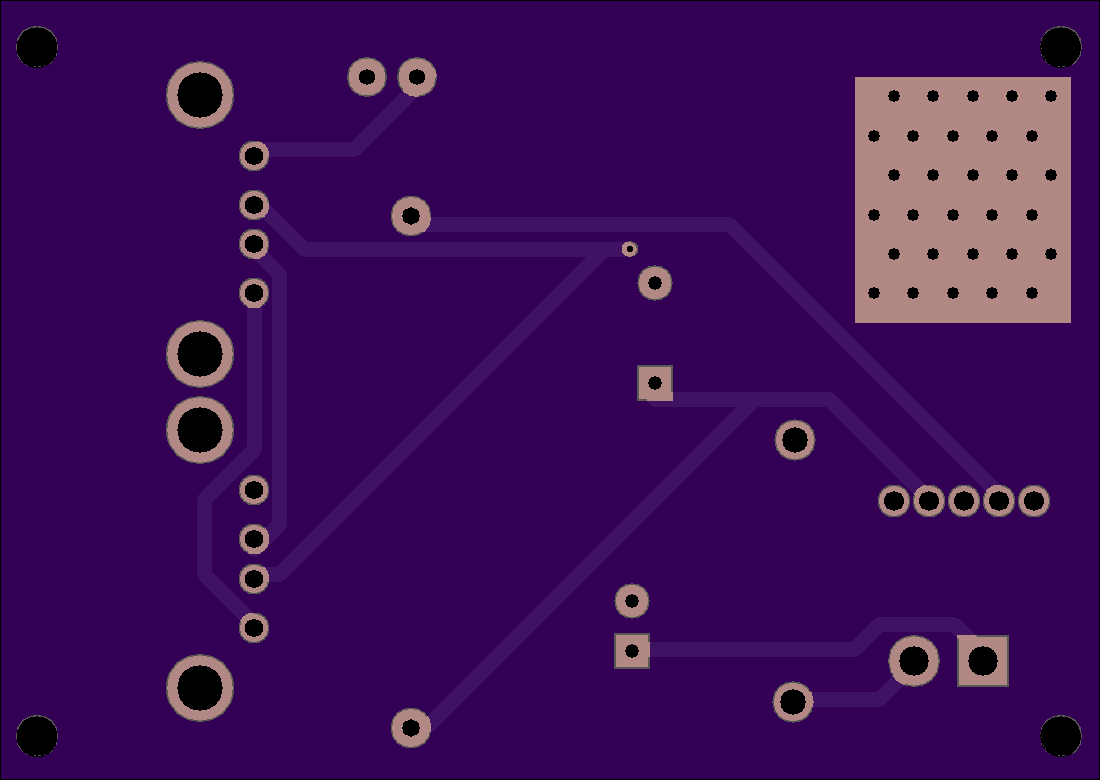

USB IDevice charger V2
by
Erll.
2
layer board of
2.20x1.56
inches
(55.88x39.60
mm).
Shared on
November 11th, 2013 23:52.
USB Charger V2 using OnSemi lm2576 switching regulator. It will provide 5v 3amp output for charging I devices. There are resistor dividers for making the correct voltages on the d+ and d- . This layout is untested, but the schematic is fully tested and works well. There is one error on this board, it with the coil, it is layer out for an axial coil not the radial rl2444 that is on the silk. See v1 if you want to use the rl2444. I will update the description here with the correct coil when I get a chance. The correct coil should be coilcraft PCH-45X-683.
