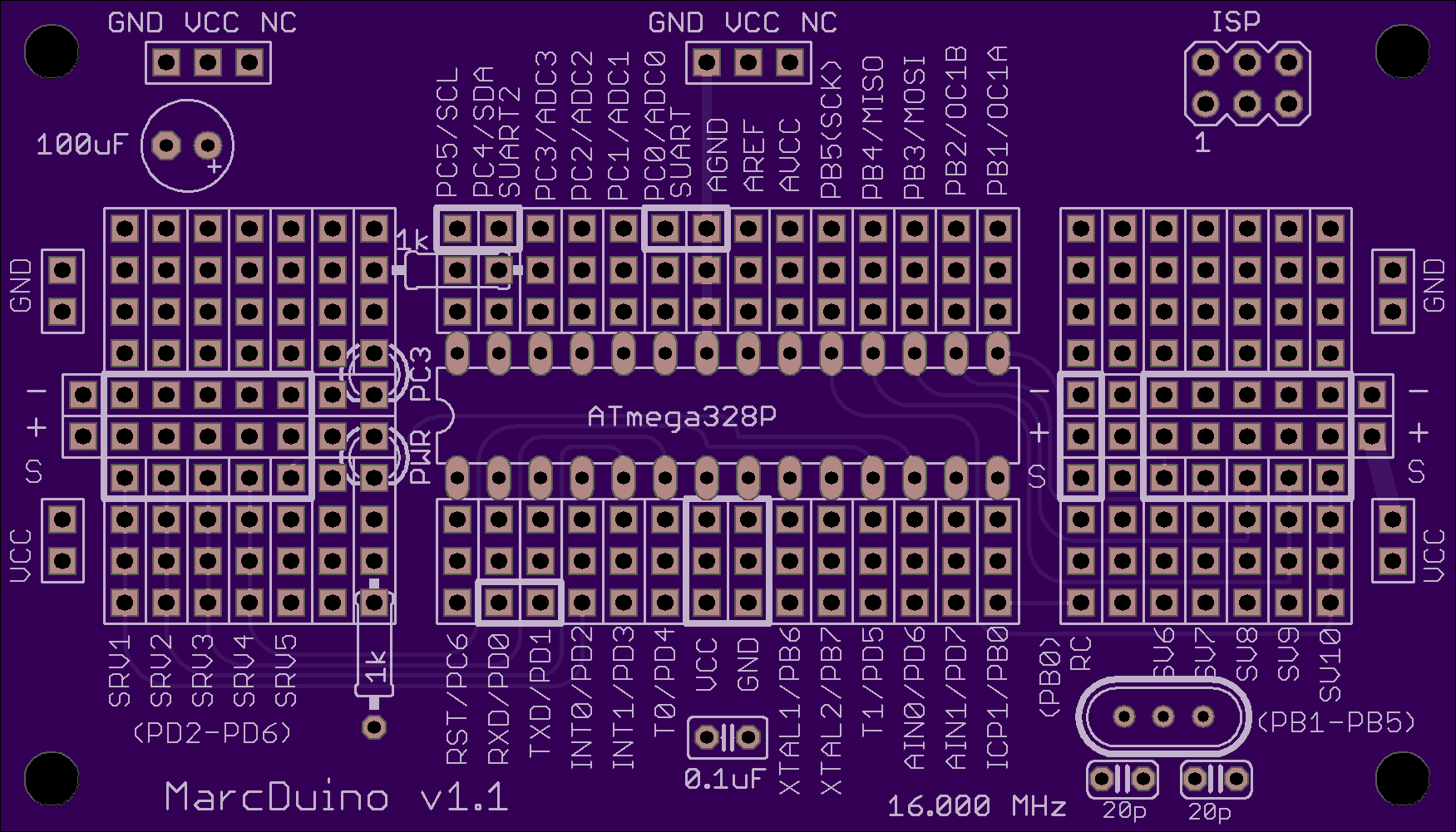

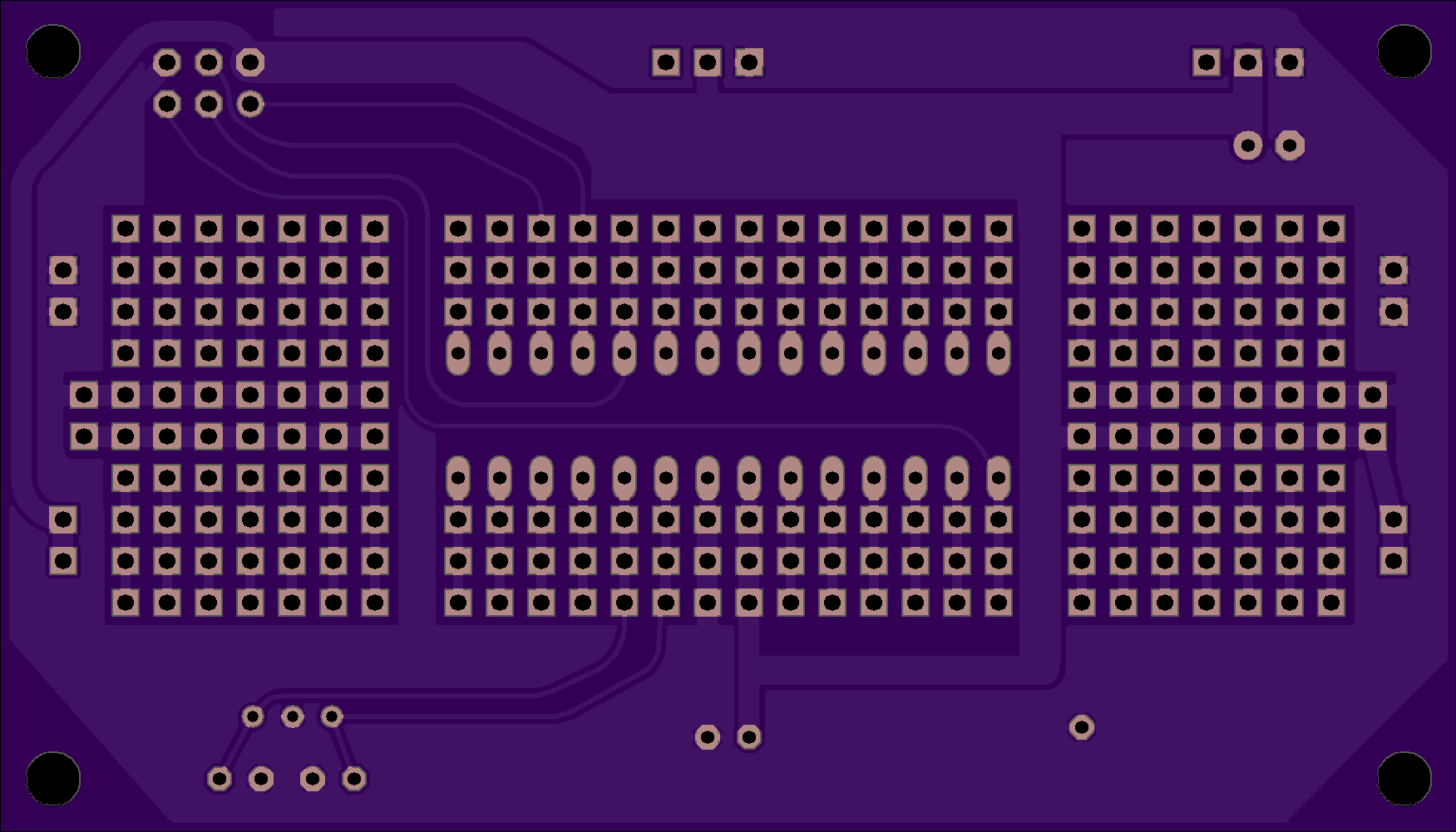

MarcDuino v1.1
by
2
layer board of
3.50x2.00
inches
(88.90x50.80
mm).
Shared on
October 3rd, 2013 01:28.
R2-D2 Automation Boards for R2 Touch iPhone App.
Details at www.curiousmarc.com

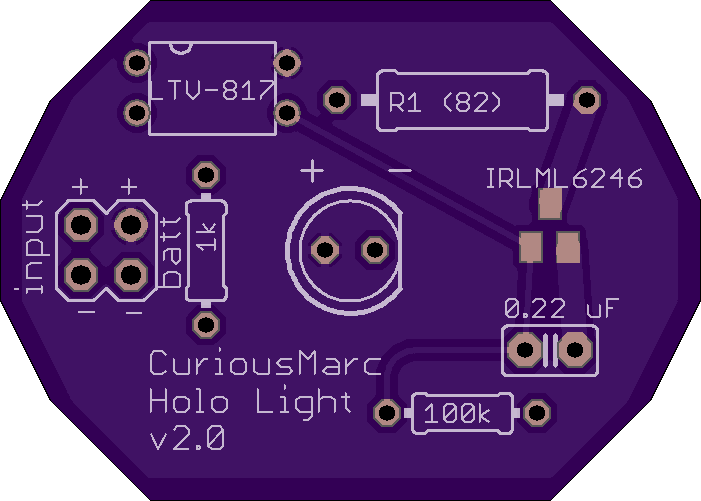

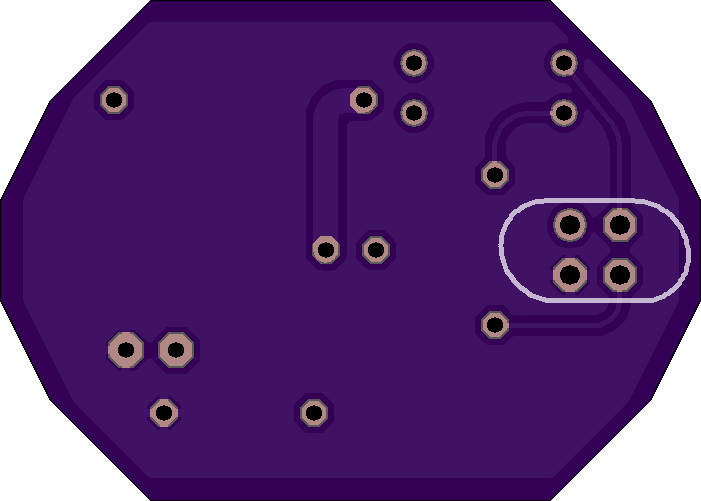

SuperBright Holo Light v2.0
by
2
layer board of
1.40x1.00
inches
(35.59x25.43
mm).
Shared on
October 3rd, 2013 01:13.
Holoprojector Light Board for R2-D2 Builders Group
Details at www.curiousmarc.com

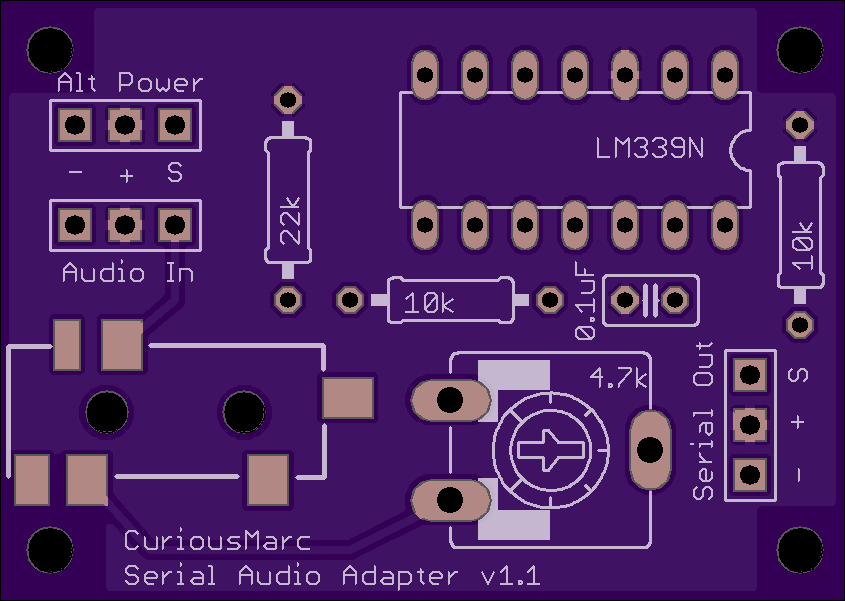

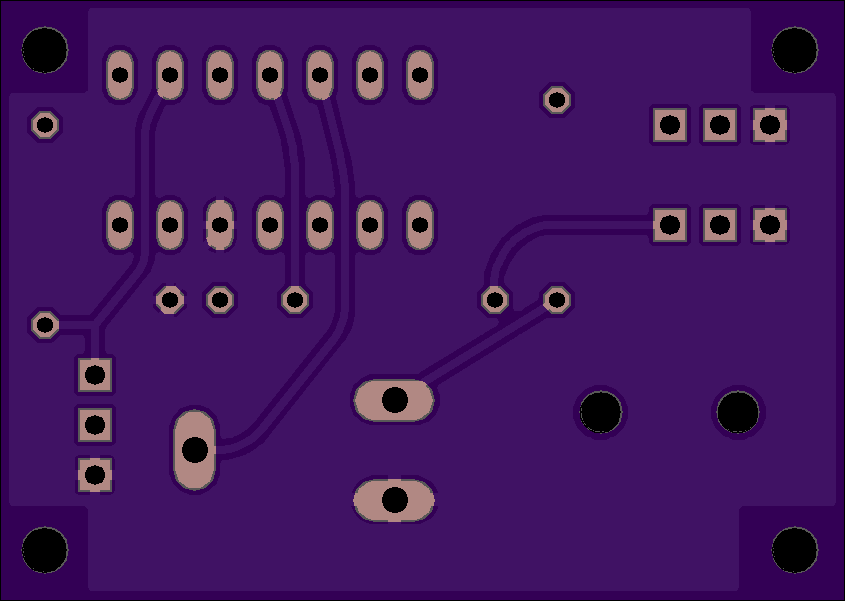

R2 Touch Serial Audio Adapter
by
2
layer board of
1.69x1.20
inches
(42.85x30.48
mm).
Shared on
October 3rd, 2013 01:13.
Adapter for using an external XBee radio with the R2 Touch iPhone App.
Details at www.curiousmarc.com

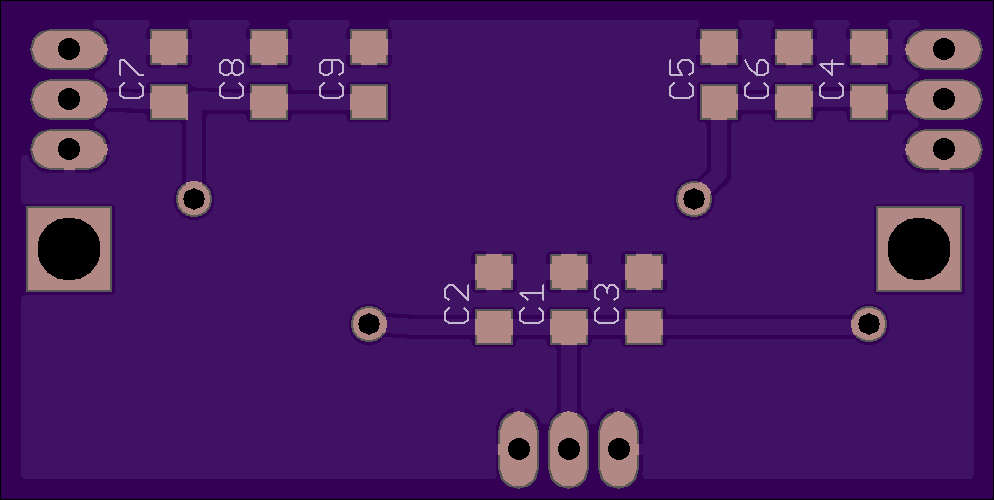

Wilkinson
by
LA3PNA.
2
layer board of
1.99x1.00
inches
(50.50x25.40
mm).
Shared on
October 2nd, 2013 22:32.
Wilkinson RF power divider.
R1 = 100Ohm
C1 = 2 * C4
C4, C7 = 1/(2 * pi * frequency * 70.7)
L1, L2, = 70.7/(2 * pi * frequency)
The splitter will have an 3dB in-phase split at the wanted frequency.
C2,C3,C5,C6,C8,C9 is extra pads in order to paralell capacitors to obtain the correct value.
All the capacitors are 1206 size and the inductors are wound on T50 size toroidal inductors or as airwound inductors.

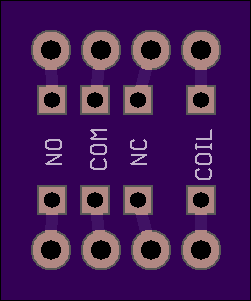

Relay Breakout Board
by
uChip.
2
layer board of
0.50x0.60
inches
(12.70x15.27
mm).
Shared on
October 2nd, 2013 20:38.
Converts IM21TS relay pinout to standard Breadboard (0.1") format. PCB design files in EagleCAD format.
Keywords: Breakout Board, Breadboard, Relay, IM21TS
Components: Digi-Key part #PB1167-ND
The design has been tested functional. Relay can be driven directly from Arduino board or Atmel368 micro controller (5V supply). Wire relay coil as you would an LED. That is, include a series resistor (~200 Ohm) to limit current.
