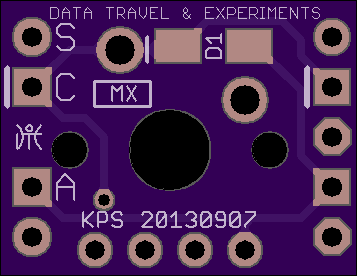

Cherry MX breakout

2 layer board of 0.71x0.55 inches (18.11x13.97 mm).
Shared on September 10th, 2013 01:52.

Adapter for Cherry MX keyswitch to 0.1 inch breadboard. https://github.com/datatravelandexperiments/hw-keyswitch-breakout

Copy this HTML into your page to embed a link to order this shared project

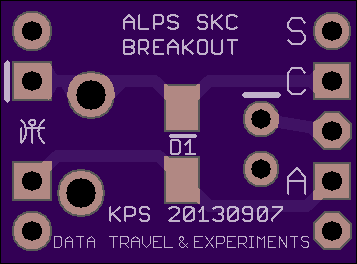

ALPS SKC breakout

2 layer board of 0.71x0.53 inches (18.11x13.36 mm).
Shared on September 10th, 2013 01:52.

Adapter for ALPS SKC keyswitch to 0.1 inch breadboard. https://github.com/datatravelandexperiments/hw-keyswitch-breakout

Copy this HTML into your page to embed a link to order this shared project

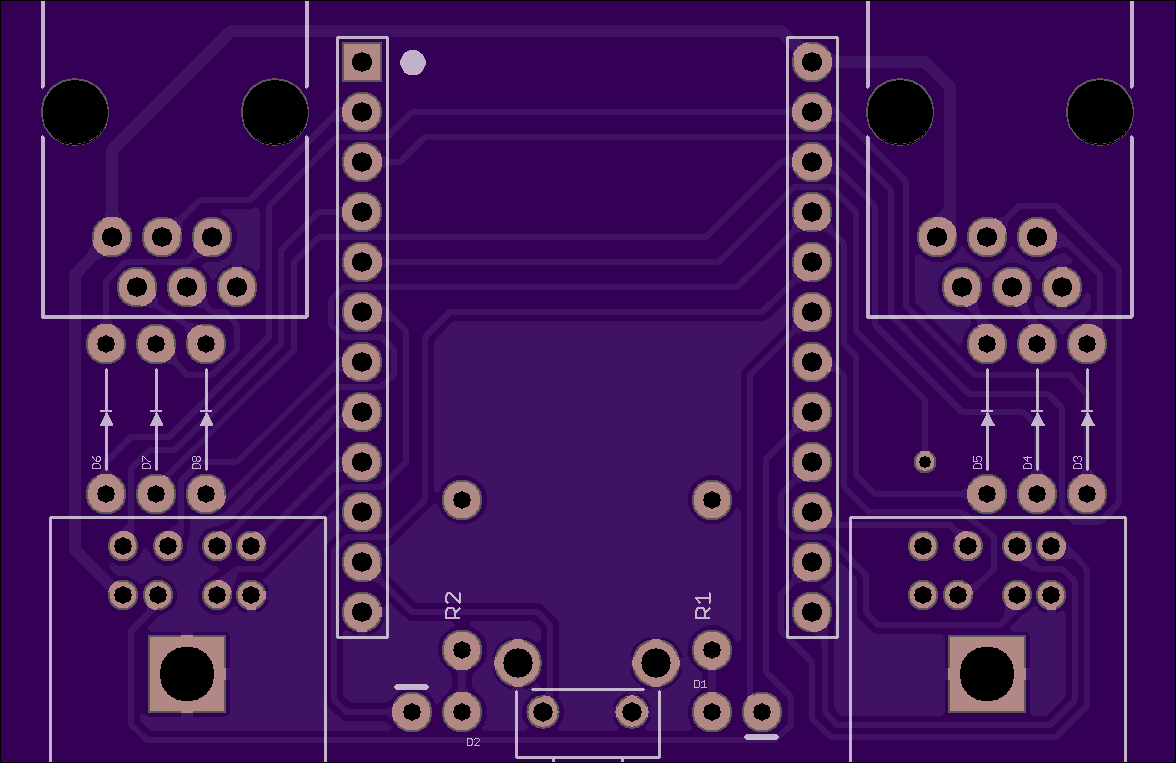

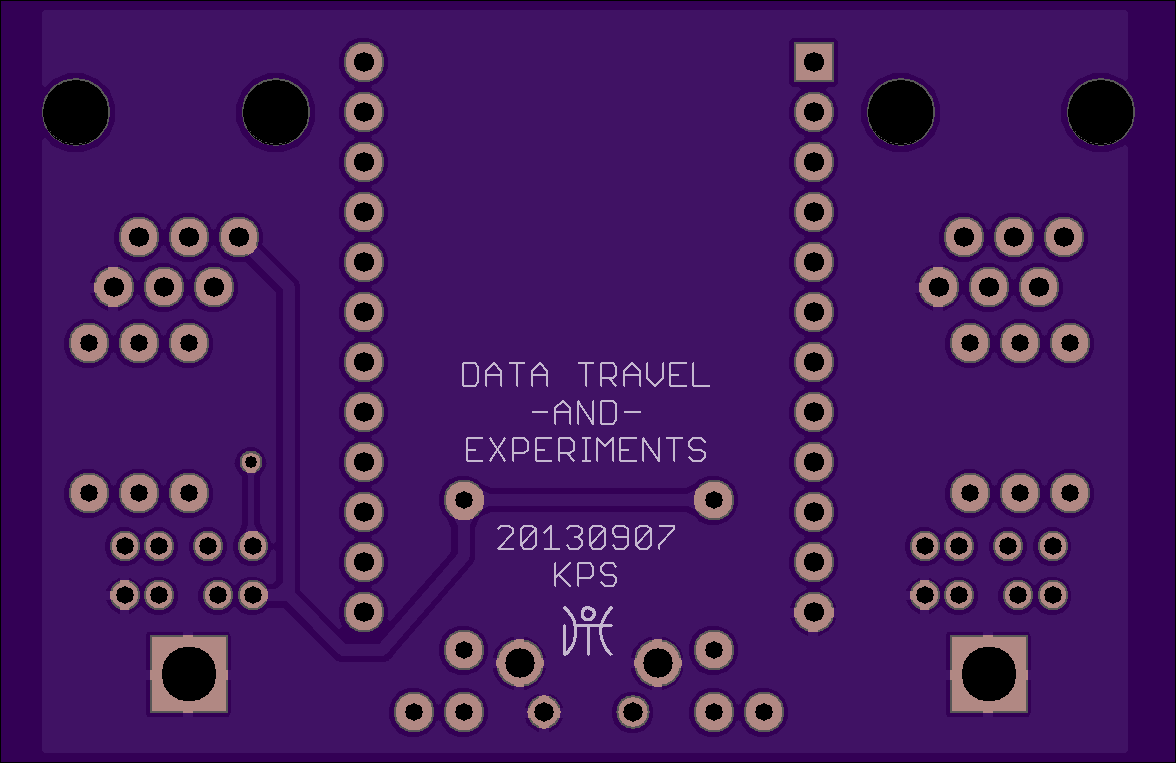

2 layer board of 2.35x1.53 inches (59.72x38.76 mm).
Shared on September 10th, 2013 01:52.

Part of a project to separate the two keywells of a Kinesis contoured keyboard. https://github.com/datatravelandexperiments/hw-split-kinesis

Copy this HTML into your page to embed a link to order this shared project

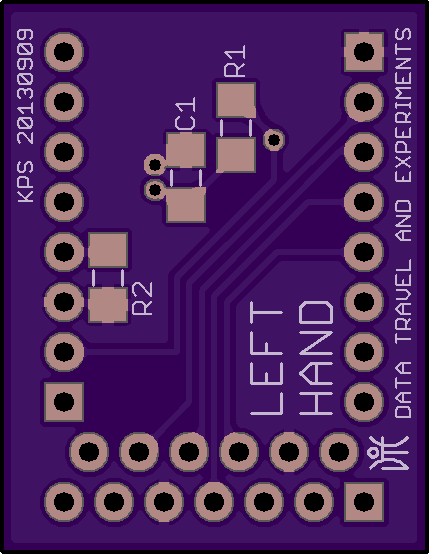

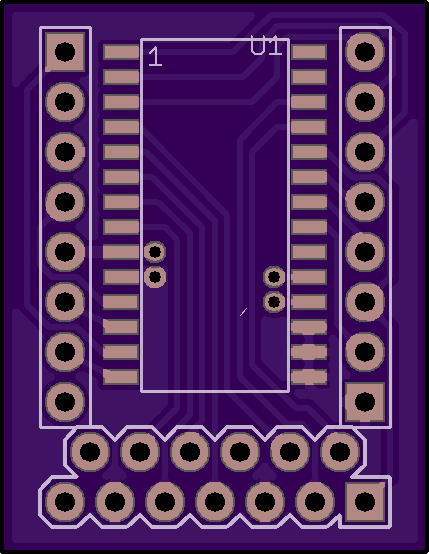

2 layer board of 0.86x1.11 inches (21.82x28.14 mm).
Shared on September 10th, 2013 01:52.

Part of a project to separate the two keywells of a Kinesis contoured keyboard. https://github.com/datatravelandexperiments/hw-split-kinesis

Copy this HTML into your page to embed a link to order this shared project

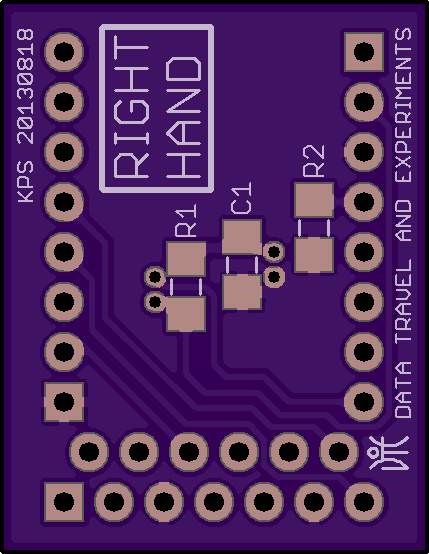

2 layer board of 0.86x1.11 inches (21.82x28.14 mm).
Shared on September 10th, 2013 01:52.

Part of a project to separate the two keywells of a Kinesis contoured keyboard. https://github.com/datatravelandexperiments/hw-split-kinesis
