TrueBypass

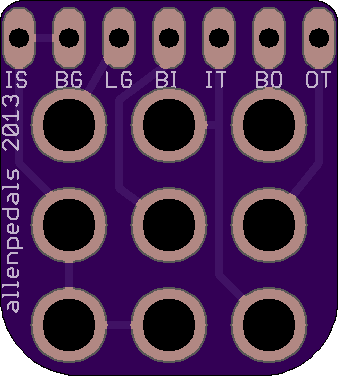

2 layer board of 0.68x0.75 inches (17.15x19.05 mm).
Shared on September 11th, 2013 13:14.

now with rounded corners.

For the pinout check this thread

Copy this HTML into your page to embed a link to order this shared project

BBDDoublerV2

2 layer board of 1.59x0.80 inches (40.34x20.32 mm).
Shared on September 11th, 2013 13:14.

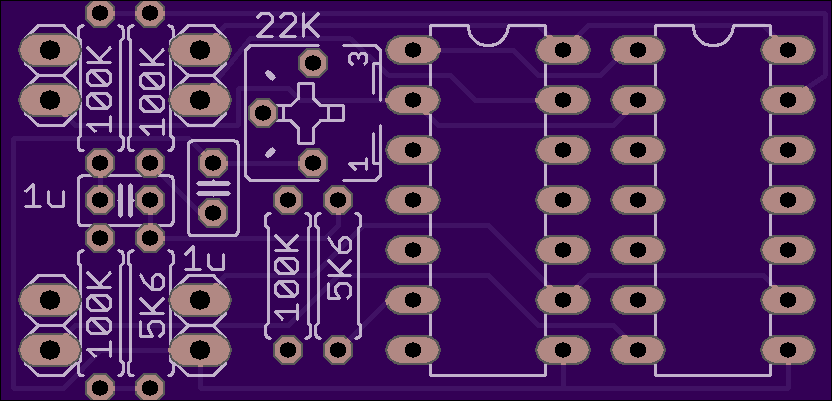

Center Mounter BBDDoubler with GP

Copy this HTML into your page to embed a link to order this shared project

2 layer board of 1.66x0.80 inches (42.21x20.32 mm).
Shared on September 11th, 2013 13:14.

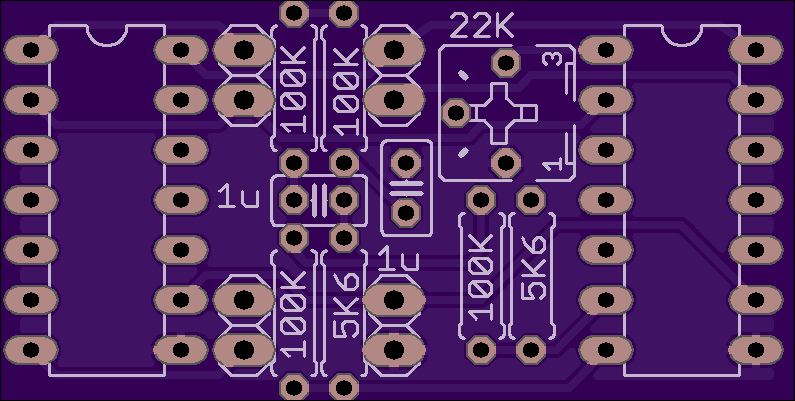

SocketedBBDDoubler

Copy this HTML into your page to embed a link to order this shared project

2 layer board of 1.42x1.42 inches (35.99x36.07 mm).
Shared on September 11th, 2013 02:39.

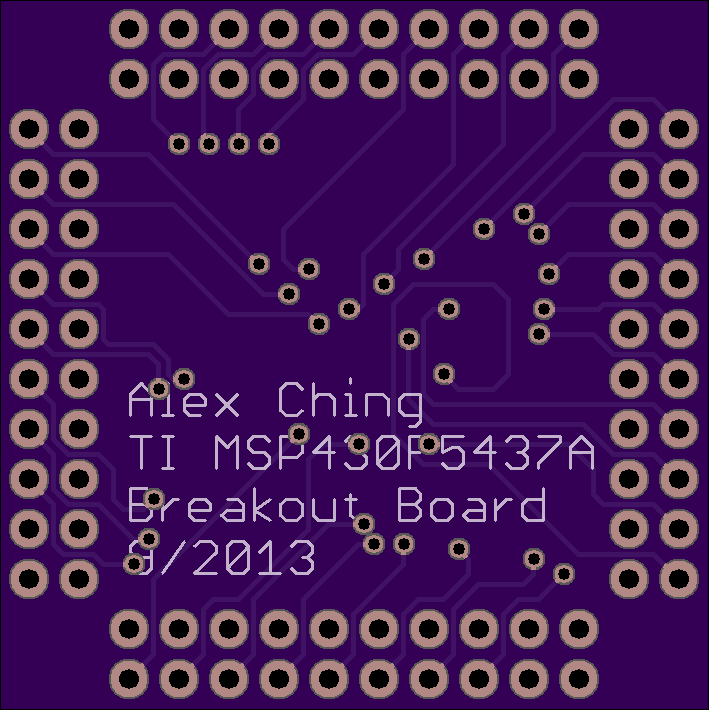

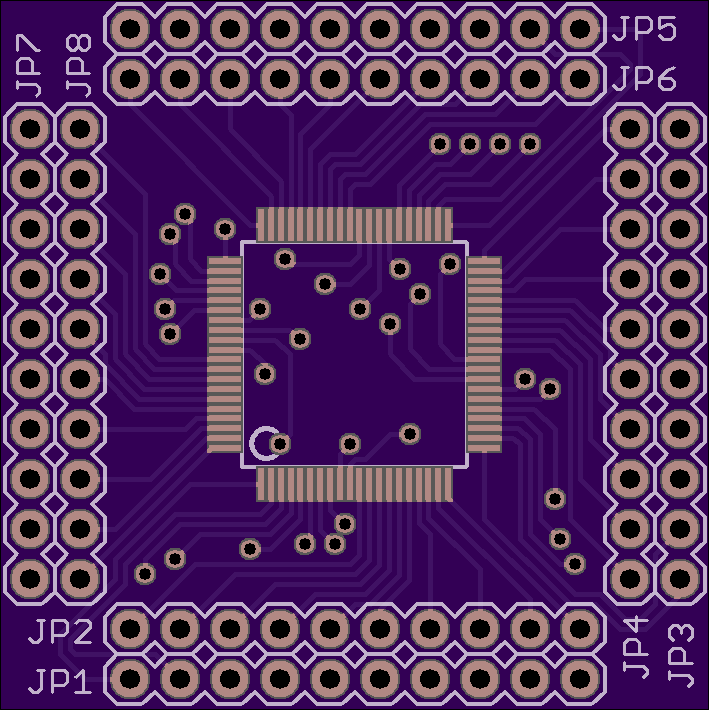

Breakout for MSP430F5437A

Copy this HTML into your page to embed a link to order this shared project

2 layer board of 0.75x1.65 inches (19.05x41.94 mm).
Shared on September 10th, 2013 19:41.

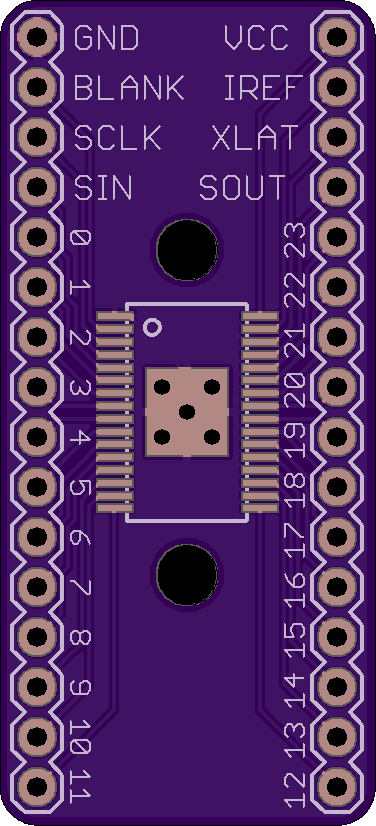

TSSOP

Copy this HTML into your page to embed a link to order this shared project
