STP08DP05 LED driver breakout
by
onyxfish.
2
layer board of
1.81x1.81
inches
(46.02x46.02
mm).
Shared on
August 8th, 2013 02:06.

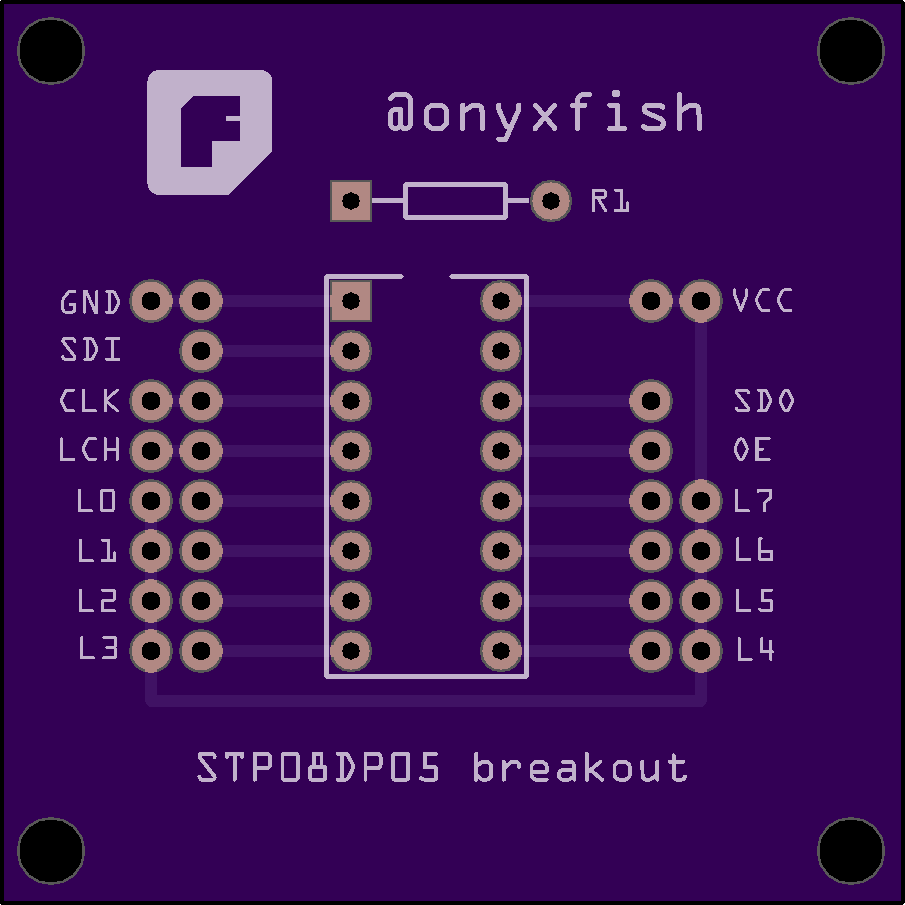

A simple breakout board for the STP08DP05 8-channel constant current driver IC.
Useful tutorial from the University of Utah

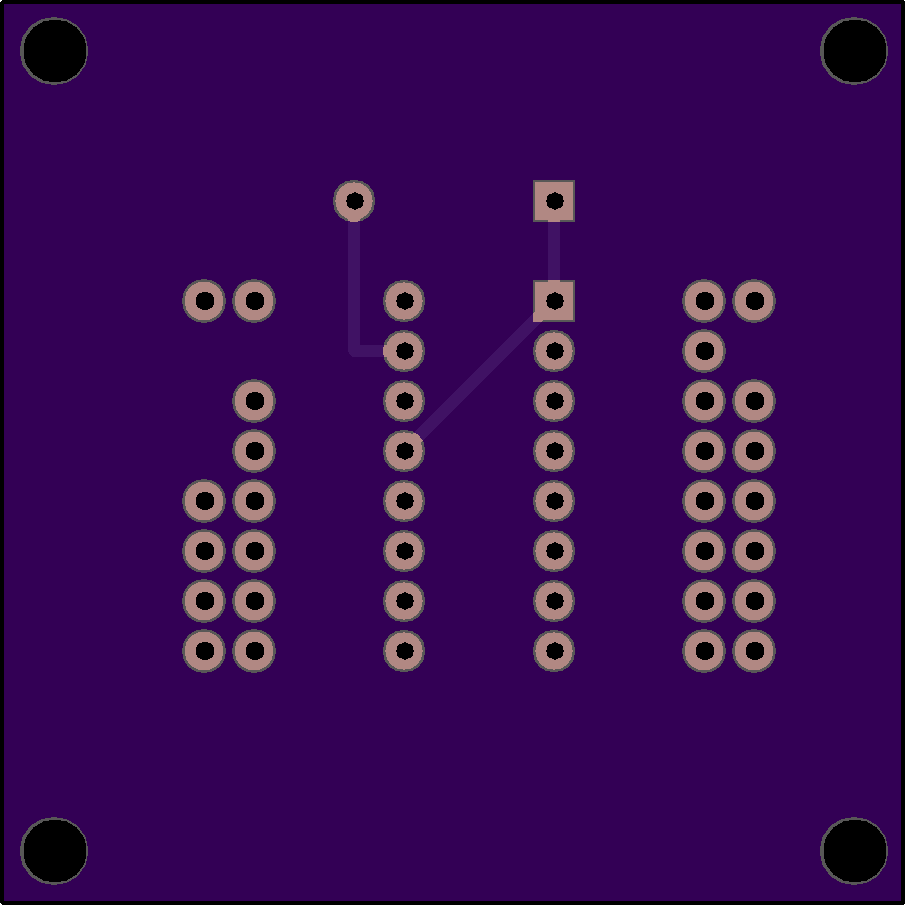

NB: The chip select pin (OE) is shorted to ground. If you want to control it you’ll have to cut the trace on the back of the board.
Previously printed with Seeed and battle-tested in a screen-used movie prop.
Prototyping BoArduino
by
jsj.
2
layer board of
3.00x2.00
inches
(76.20x50.80
mm).
Shared on
August 8th, 2013 01:30.

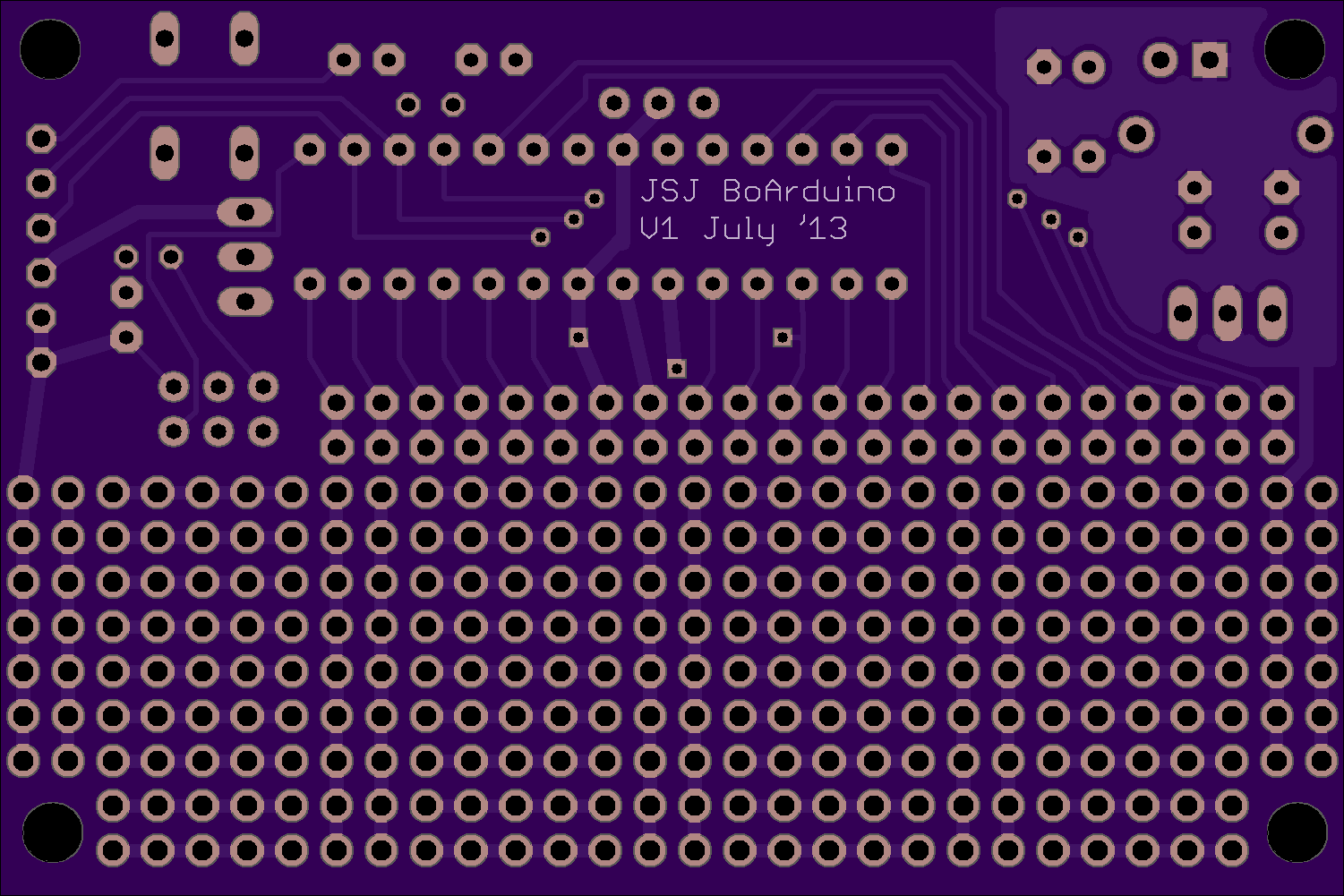

Arduino with Prototyping Area
Vertical power rails
Horizontal breadboard rails
HD44780 Header Converter
by
nathanpc.
2
layer board of
1.80x0.95
inches
(45.72x24.13
mm).
Shared on
August 8th, 2013 01:12.

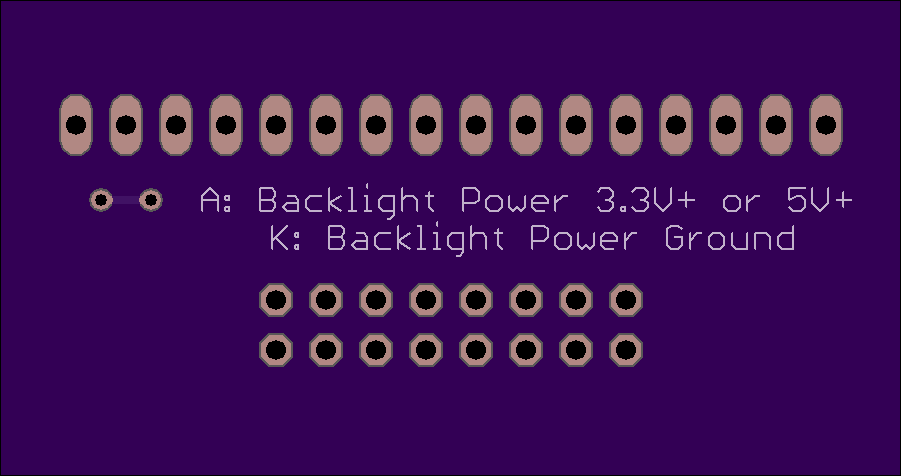

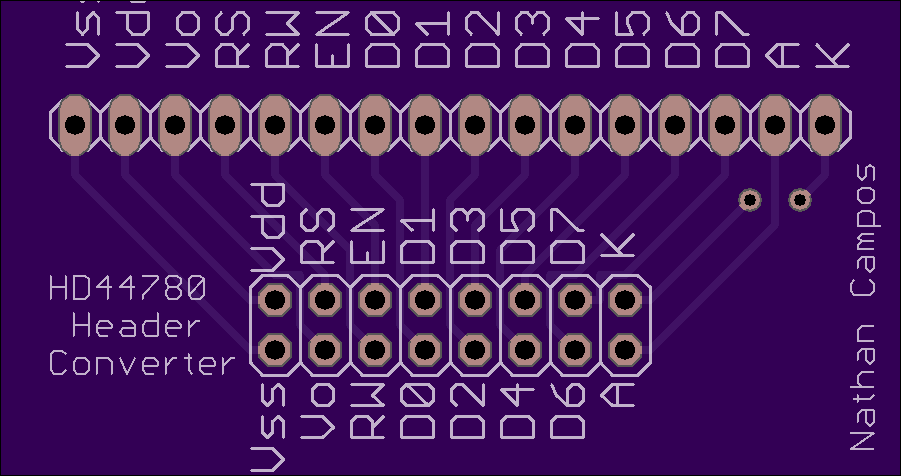

A simple converter for LCD modules that use the 2x8 pin headers instead of the usual 1x16 and vice-versa.

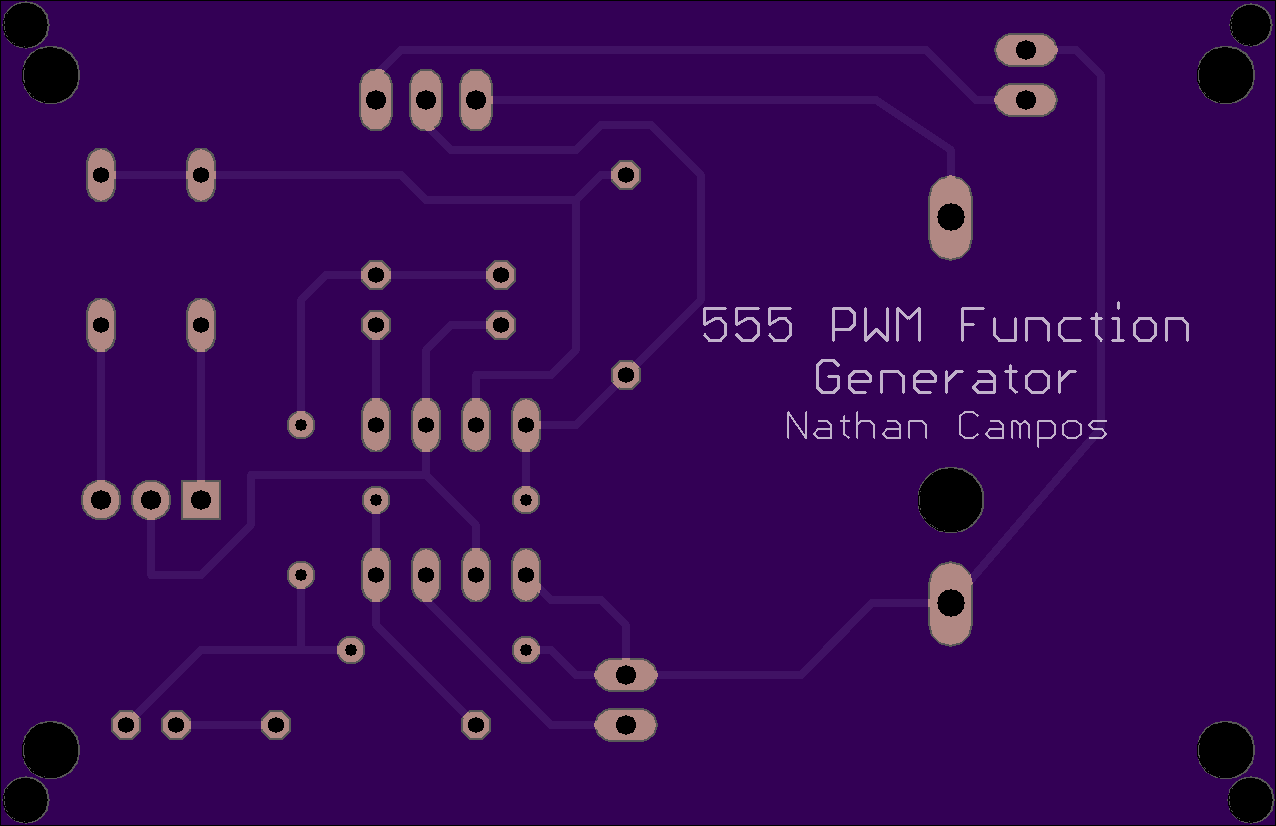

555 PWM Function Generator
by
nathanpc.
2
layer board of
2.55x1.65
inches
(64.80x41.94
mm).
Shared on
August 8th, 2013 01:12.
A awesome PWM function generator for testing.
leveltranslator_4+4
by
allanhessenflow.
2
layer board of
1.26x2.01
inches
(32.03x51.05
mm).
Shared on
August 8th, 2013 00:01.

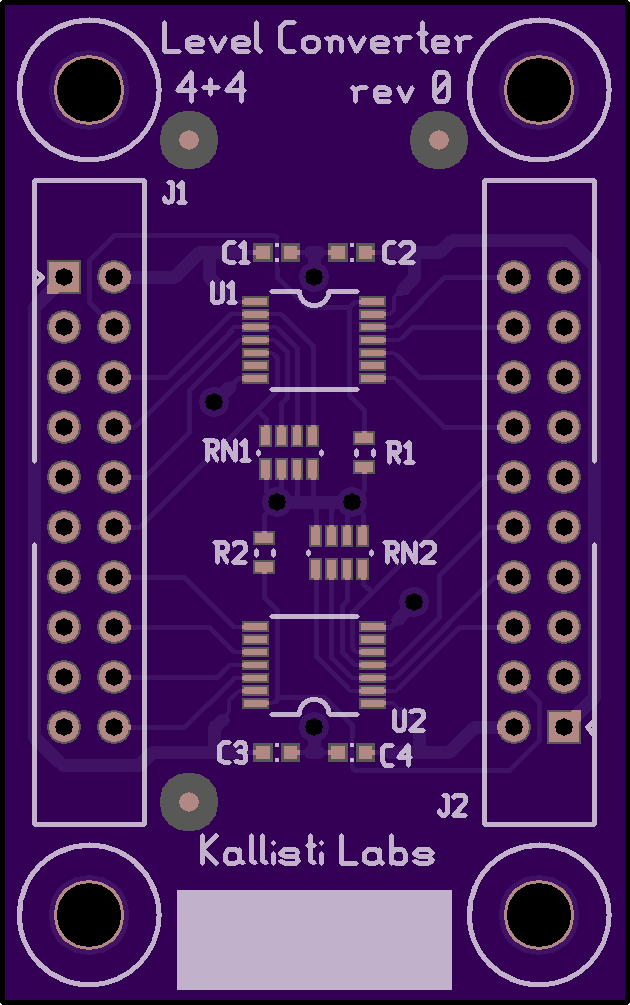

Simple level translator with four channels in each direction. Good from about 1.4V to 4.5V. http://www.kallisti.com/~allanh/leveltranslator_4+4/leveltranslator_4+4.html
