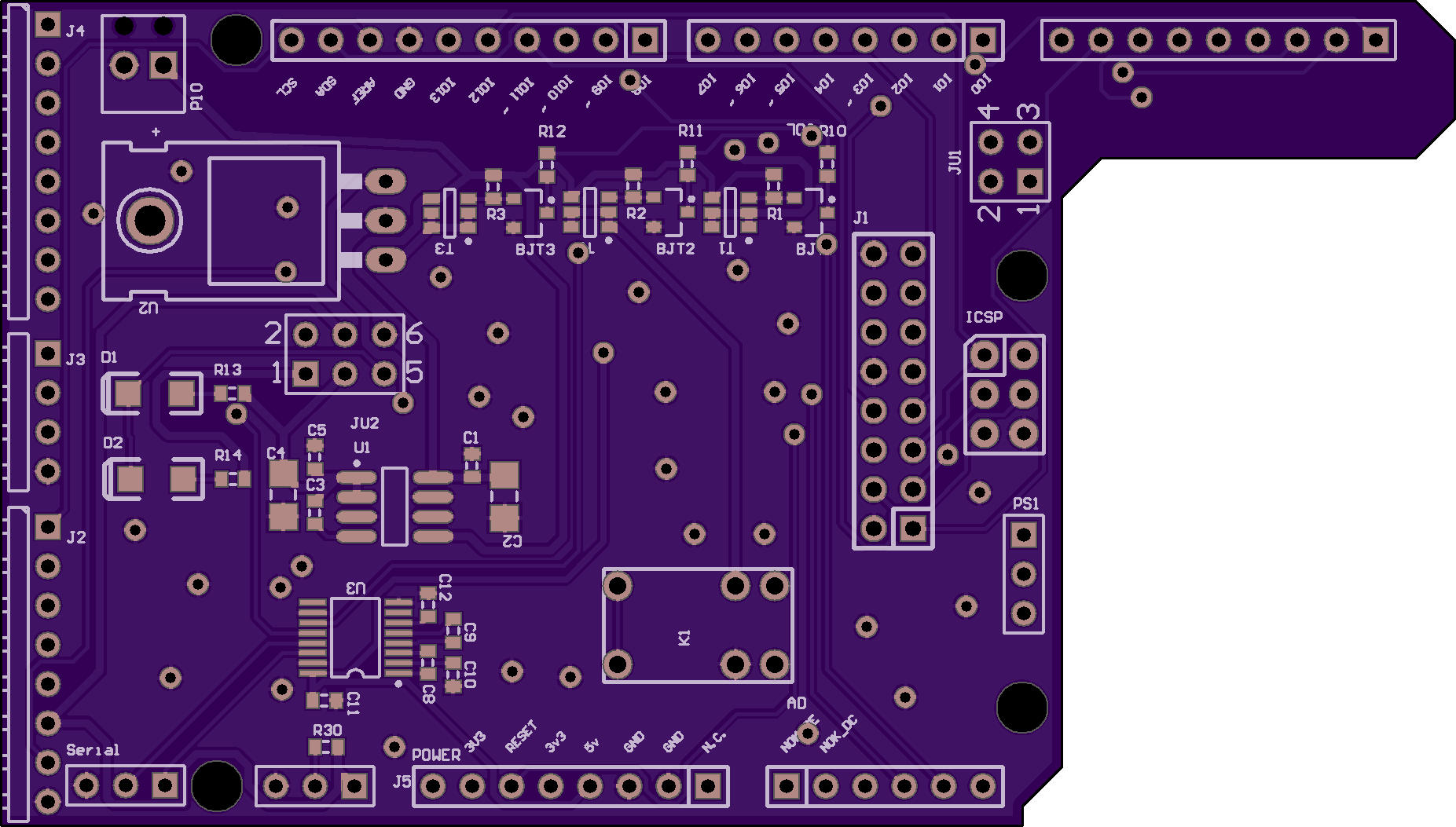

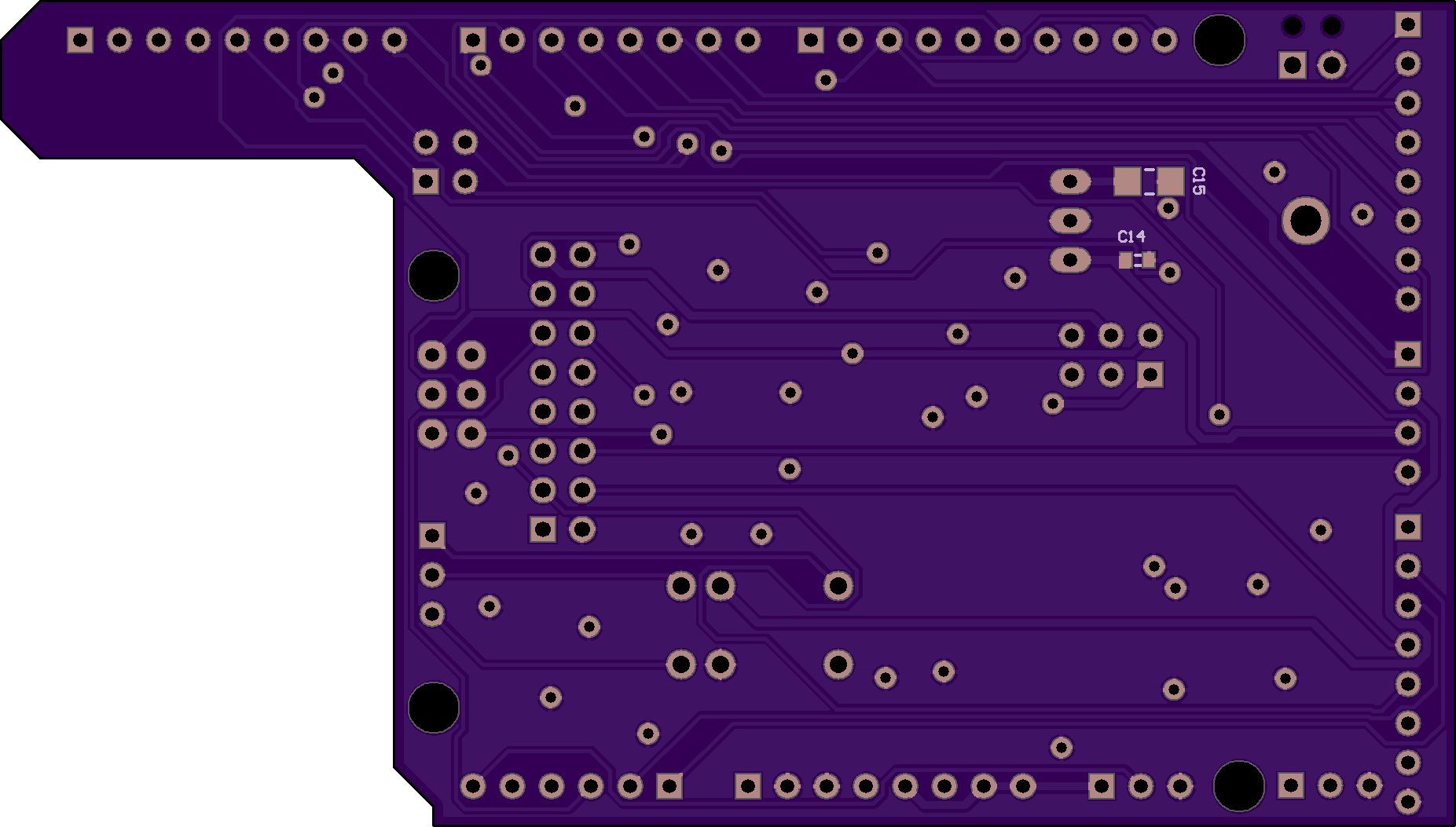

nRF52_Shield_Cab.zip

jongs1972.

2 layer board of 3.71x2.11 inches (94.13x53.47 mm).
Shared on November 11th, 2016 07:10.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

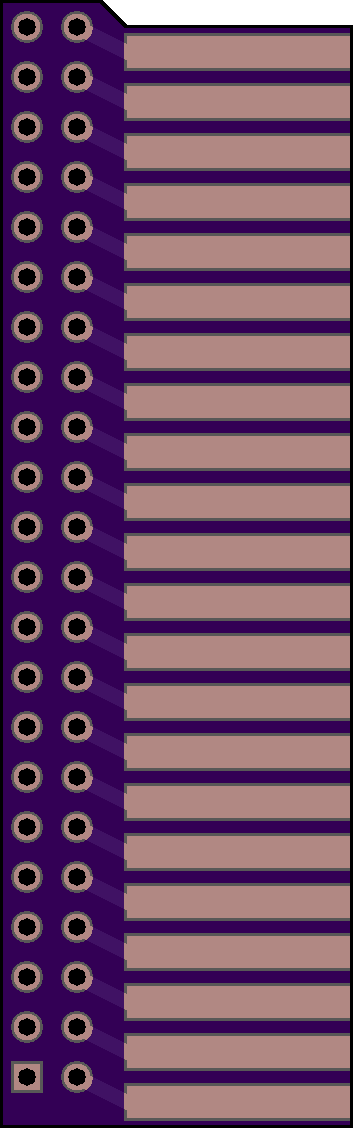

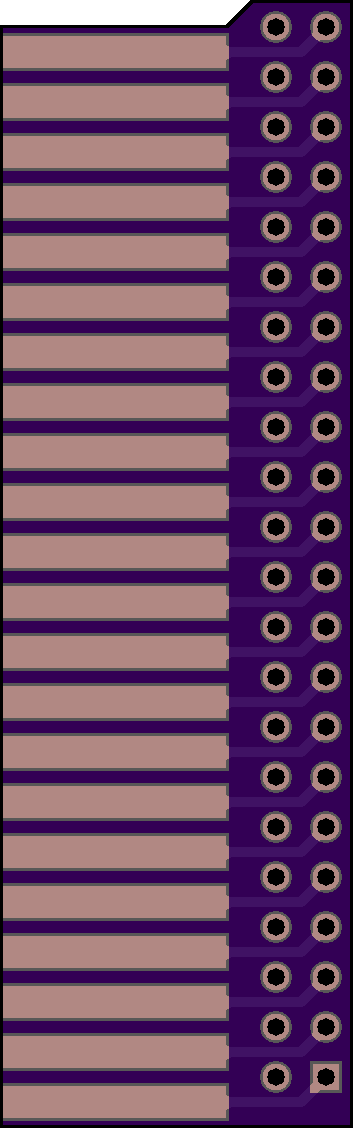

TI-99-32k-sideport-edgecard.zip

jedimatt42.

2 layer board of 0.71x2.26 inches (17.98x57.33 mm).
Shared on November 11th, 2016 05:56.

TI-99/4A 32k sideport card 44pin header to edgecard adapter.

This is a companion for the 32k sideport expansion card available for the TI-99/4a : see this thread on Atariage

This board and a right angle female header connector allows connecting things like the TI PEB, or standalone disk drives downstream of the 32k expansion board.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

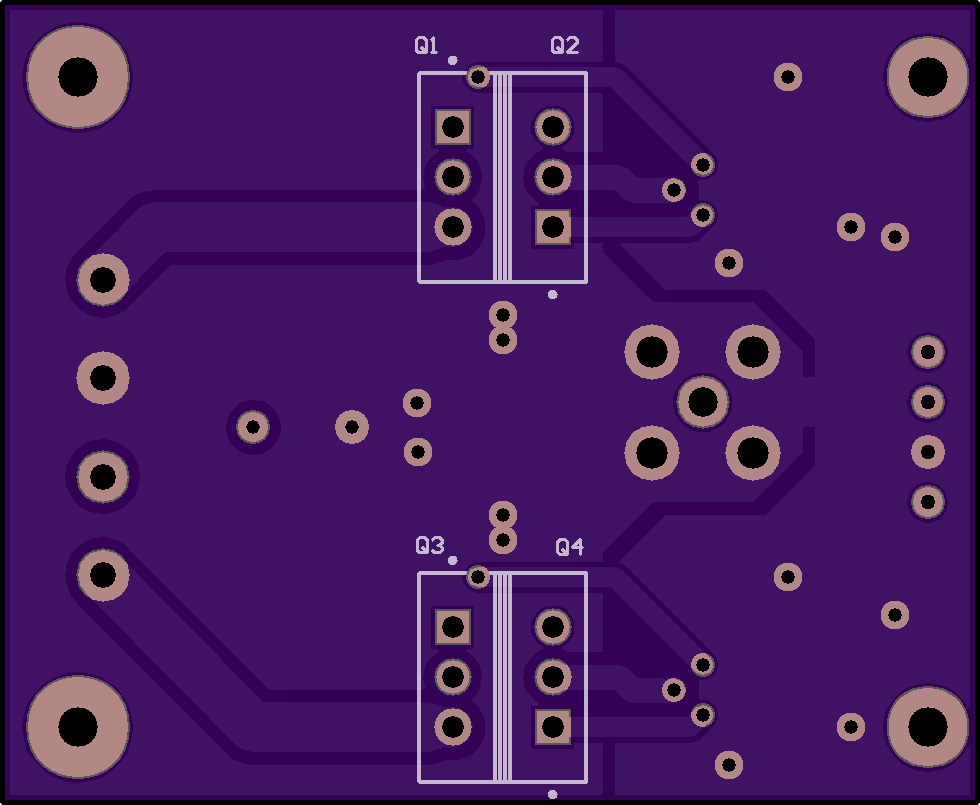

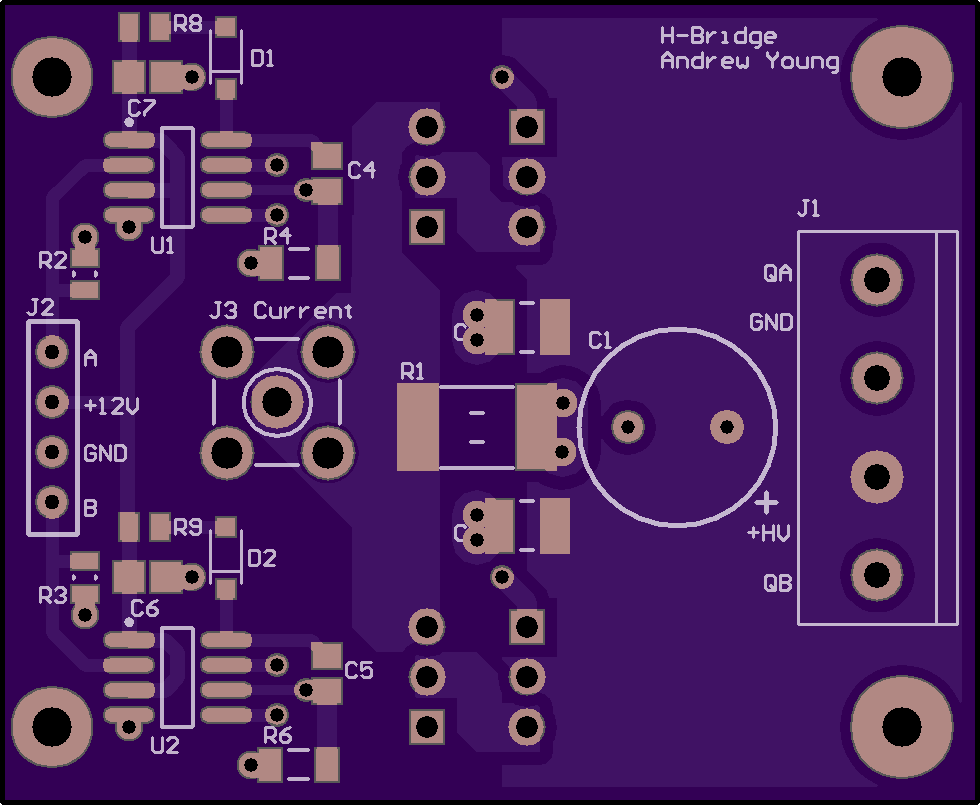

H-Bridge (v2)

yngndrw.

2 layer board of 1.96x1.61 inches (49.78x40.92 mm).
Shared on November 11th, 2016 02:33.

IR2104 / IRF540N H-Bridge (~7A @ 80V?)

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

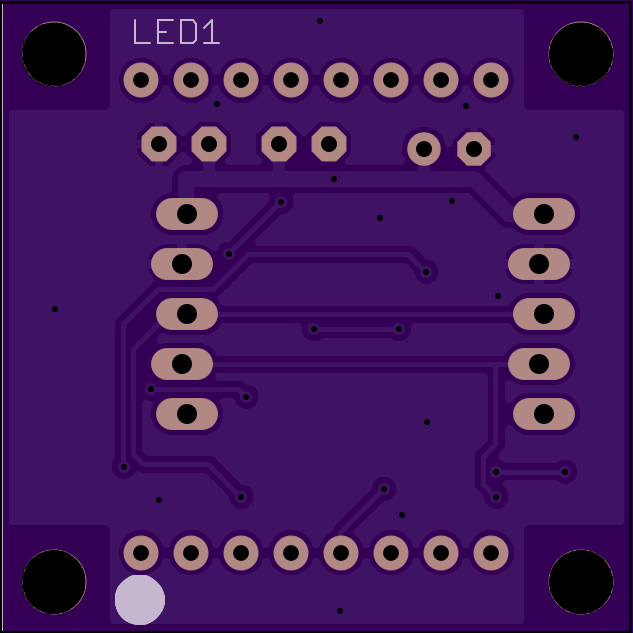

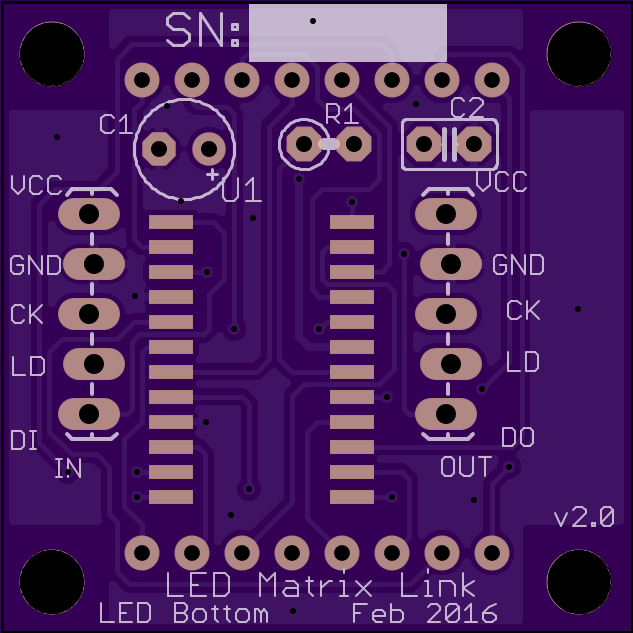

LED Matrix Link v2.0

klunkerbus.

2 layer board of 1.27x1.27 inches (32.16x32.16 mm).
Shared on November 10th, 2016 23:58.

MAX7219 AS1107 Driver for 32mm Matrix. This is my adaptation of the v1.0 LED Matrix Link from https://friedcircuits.us/. My revisions include through-hole capacitors and resistor, as well as refined dimensioning, and trace routing. A printable frame for use with these boards is available at http://www.thingiverse.com/thing:1883325

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
