8-Bit Shift Register

by brodyf42.

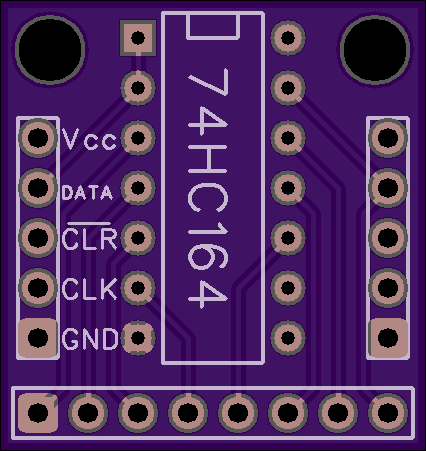

Top

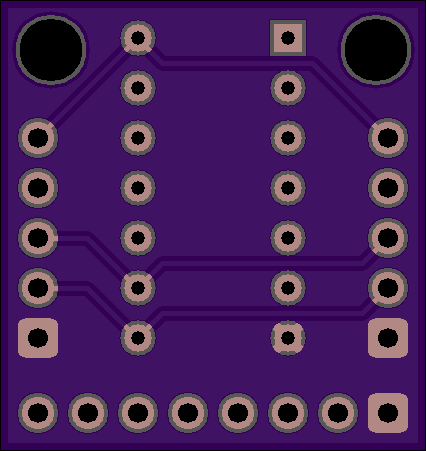

Bottom

2 layer board of 0.85x0.90 inches (21.62x22.91 mm).
Shared on February 11th, 2014 04:46.

This is a chainable 8-Bit serial-in / parallel-out shift register based on the 74HC164 IC. Be aware that the reset is actve LOW.
