BGA Test v0.1
- You need to sign in or sign up before continuing.
BGA Test v0.1
by
Max.
2
layer board of
1.97x1.97
inches
(50.01x50.01
mm).
Shared on
November 24th, 2014 11:46.

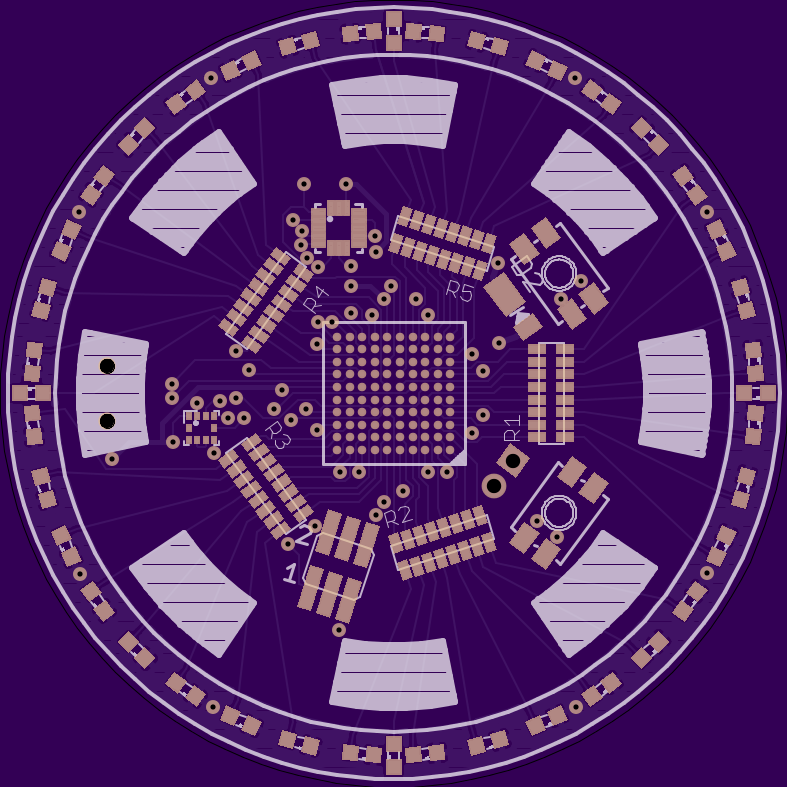

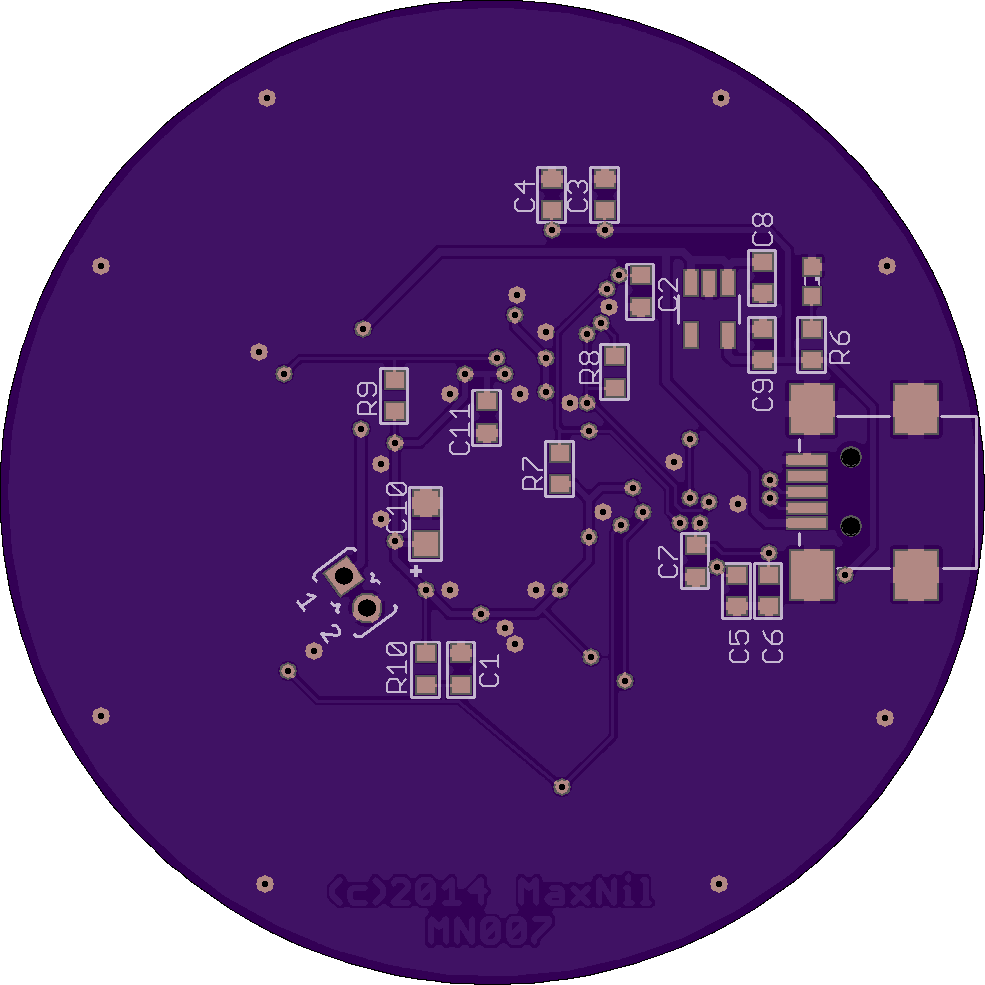

Round(!) 2-layer PCB with lots of LEDs I did this board to test if it was possible to mount a micro controller with BGA footprint on a 2-layer PCB at home, and it worked :-) There are 36 blue LEDs and 4 red LEDs that are individually controlled from GPIO on the AVR micro controller. There is also a 3D accelerometer and 3D compass on the board, so it can be used as a electronic compass with tilt compensation. Please contact me if you are interested in the design: maxnil72@gmail.com
