Zipit Z2 Breakout v1

by mozzwald.
Top
Bottom

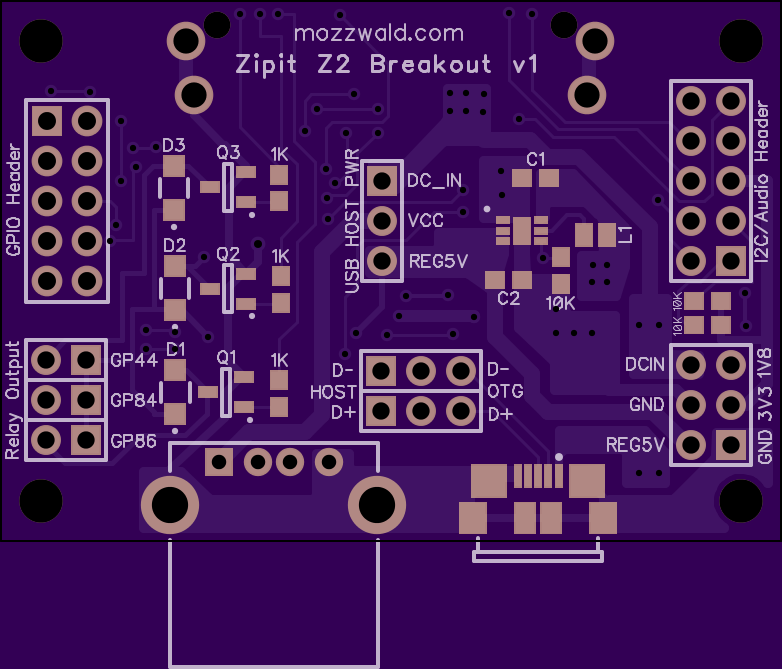

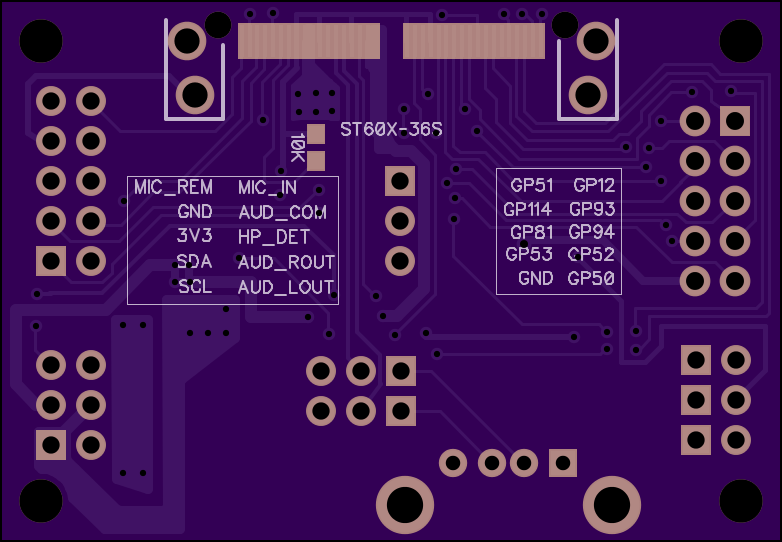

2 layer board of 1.96x1.36 inches (49.68x34.44 mm).
Shared on May 10th, 2015 21:13.

Zipit Z2 Breakout v1

Parts List

  • C1, C2: 4.7uF 6.3V 0603 (C1608X5R0J475K080AB)
  • L1: 1uH 0805 (LQM21PN1R0MC0D)
  • U1: TI 5V Regulator (TPS61240DRVT)
  • Q1, Q2, Q3: MMBT2222A
  • D1, D2, D3: SM4004PL-TP
  • Hirose to Zipit Connector: ST60X-36S
  • USB Host Port: 292303-1
  • Micro USB Port: ZX62R-B-5P
  • 1K x 3: 1K ohm 0603 Resistors
  • 10K x 4: 10K ohm 0603 Resistors
  • 2x5 2.54mm pitch Header x2
  • 2x3 2.54mm pitch Header x3
  • 1x3 2.54mm pitch Header x1
  • Jumper (Shunt) x3: 382811-8 (standard 2.54mm pitch type)
