Medusa SRK

by Mattaus.

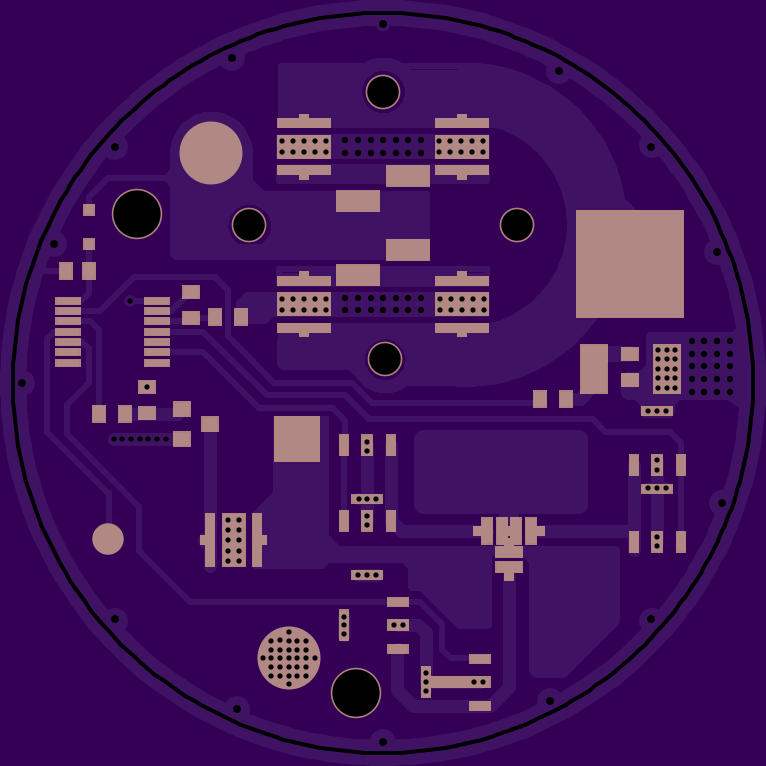

Top

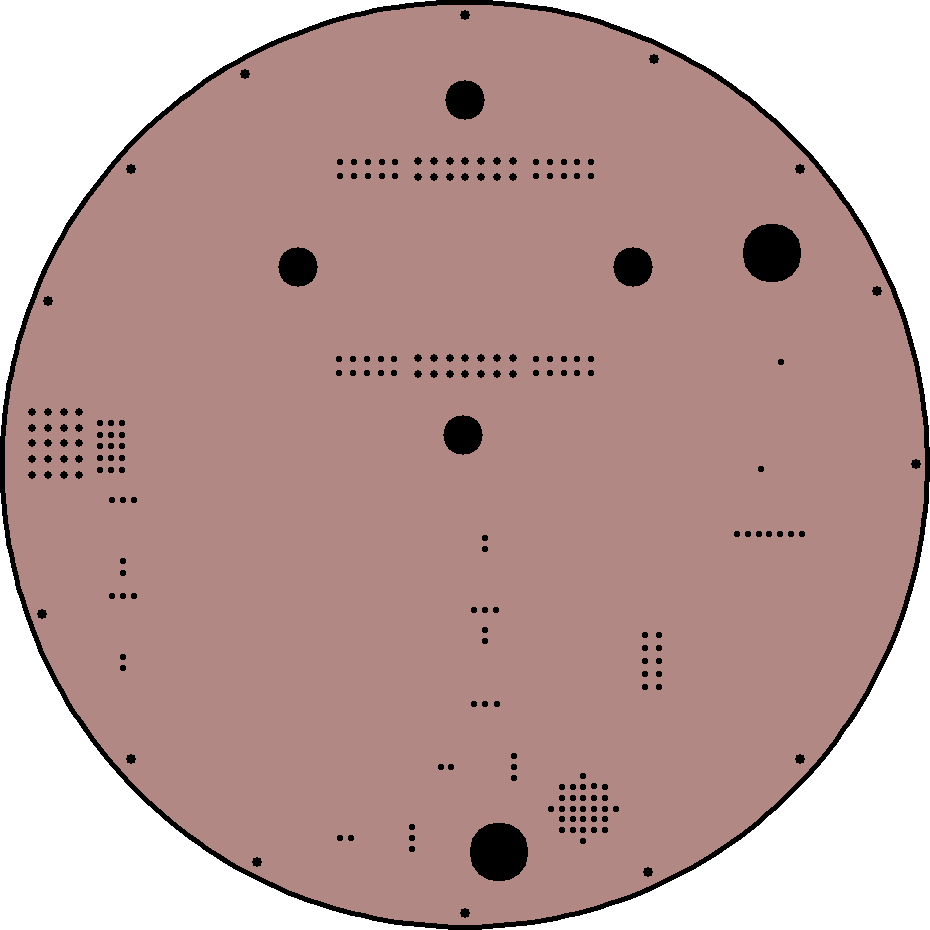

Bottom

2 layer board of 1.86x1.86 inches (47.27x47.27 mm).
Shared on August 17th, 2014 23:11.

Quad XP Footprint array using Carclo 1062X Optics, direct drive via 70N02 FET.

Single XP footprint LED, direct drive via IRLML2502 FET.

RGB XQ array using unknown reflector, each LED driven via 2 AMC7135 linear CC regulators.

Controlled via PIC16F1825 TSSOP.

Intended for MLED Firmware.
