bike light

by rudyauction509.

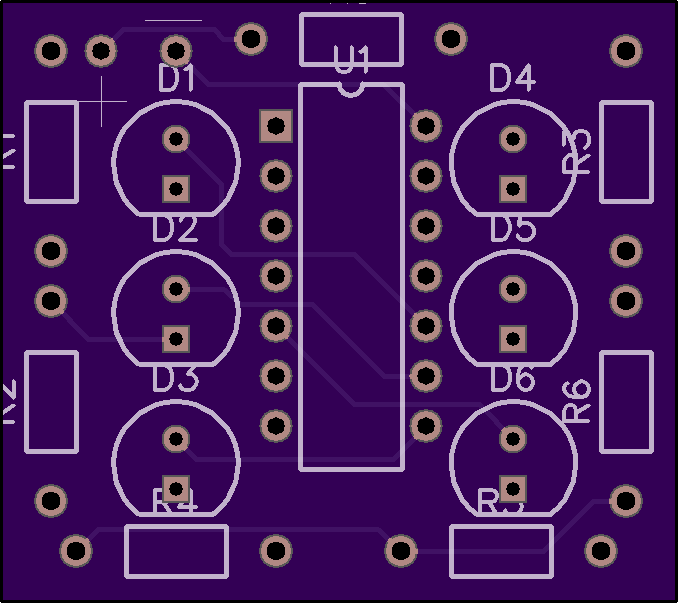

Top

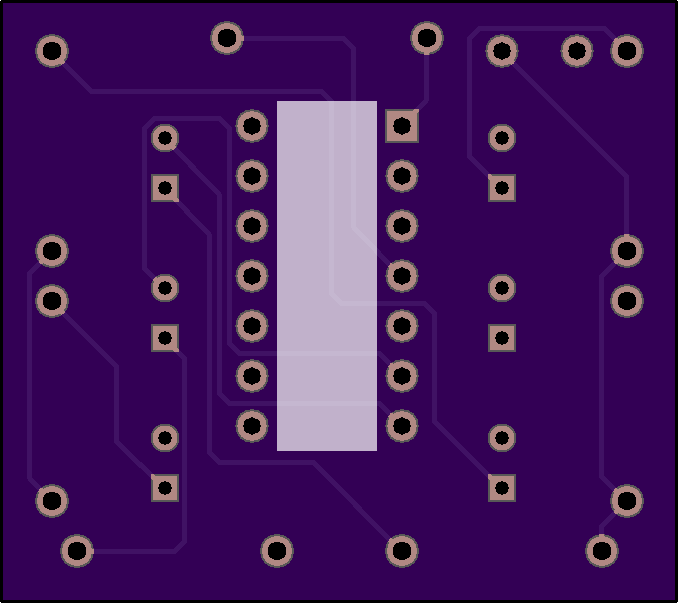

Bottom

2 layer board of 1.36x1.21 inches (34.44x30.63 mm).
Shared on February 15th, 2014 06:58.

Simple bike taillight for pic16f630, R9 is 1k, all others 100 ohm. Use 5mm LEDs of your choice, I used red and green flashing alternately. Runs on 3x AA or AAA cells or 1x Li-Ion cell, no regulator so don’t feed over 5.5 volts.
