PIC 10F SOT-6 adapter

by CuriousTech.

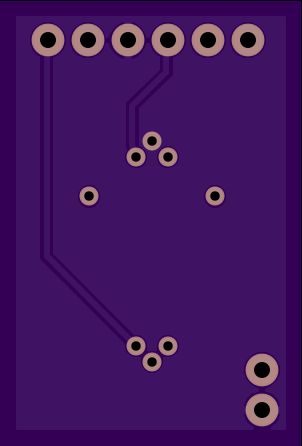

Top

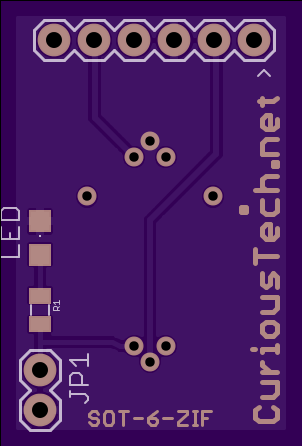

Bottom

2 layer board of 0.76x1.12 inches (19.20x28.32 mm).
Shared on June 16th, 2015 02:07.

Adapter for PIC10F SOT-23-6 to PICkit using $30 eBay socket.

Use linked one instead. Guide pins were off by 0.25mm
