ESP8266 WeMos shield

by hallard.
Top
Bottom

2 layer board of 1.30x1.00 inches (33.07x25.43 mm).
Shared on January 16th, 2016 23:40.

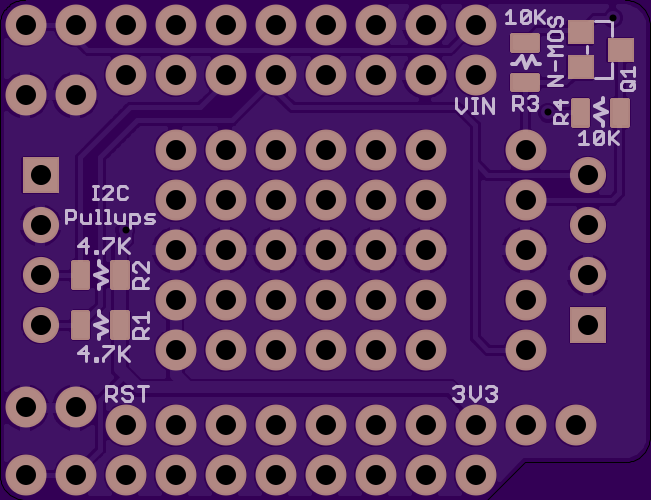

Basic WeMos shield with :

  • I2C Pullups placement

  • Classic I2C 128x64 OLED connector

  • pad to solder components if needed to

  • N-FET placement for 1 signal adapter such as 5V to 3V3

See detailled description for more information
