LPF Module

by LPF.

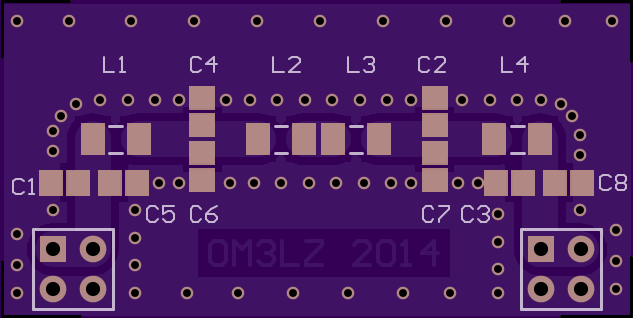

Top

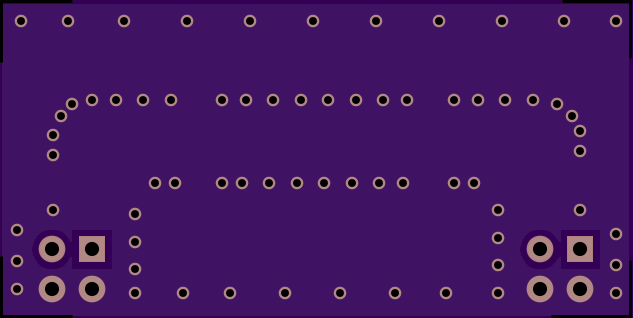

Bottom

2 layer board of 1.58x0.80 inches (40.21x20.22 mm).
Shared on August 13th, 2014 07:34.

Low Pass Filter, using 0805 capacitors and 1206 inductors.
