STM32F030F4_noxtal_4

by chris.

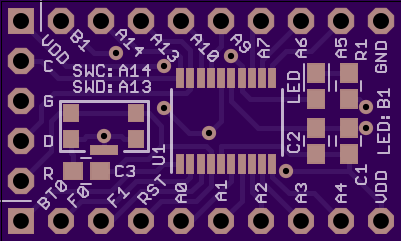

Top

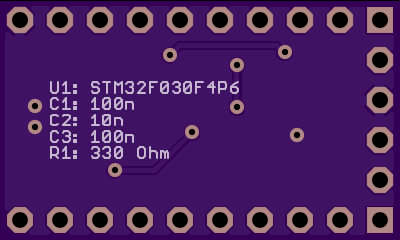

Bottom

2 layer board of 1.00x0.60 inches (25.43x15.27 mm).
Shared on June 16th, 2015 20:25.

Minimal breakout board for the STM32F030F4P6

BOM:

  • 1 x STM32F030F4P6
  • 2 x 0603 capacitor 100 nF
  • 1 x 0603 capacitor 10 nF
  • 1 x 0603 LED
  • 1 x 0603 resistor 330 ohm
  • 1 x push button with that funky footprint

Hackaday Project: https://hackaday.io/project/4277-stm32f030f4p6-breakout-board
