IGBT Bridge V1

by Extreme-Electronics.
Top
Bottom

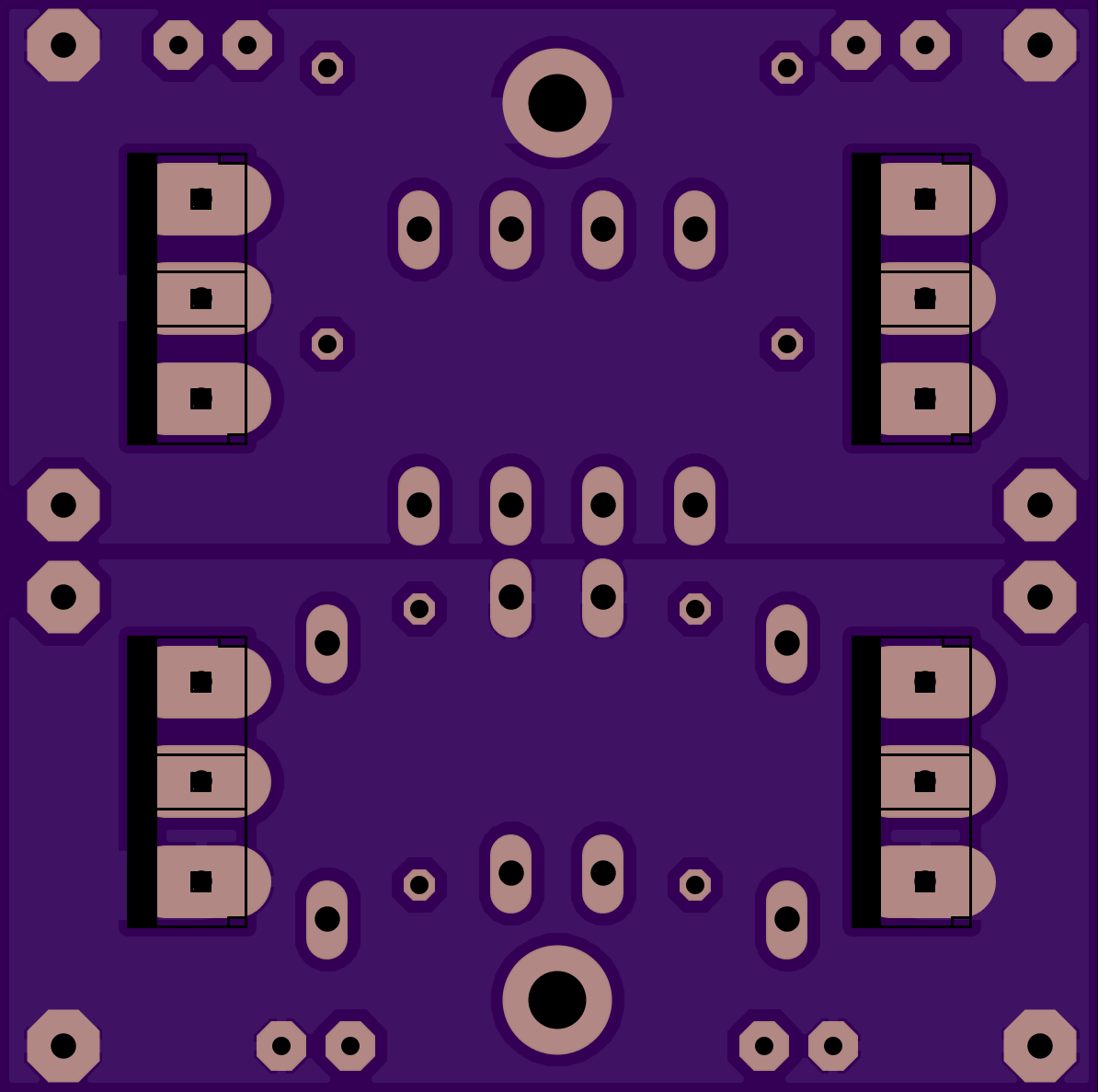

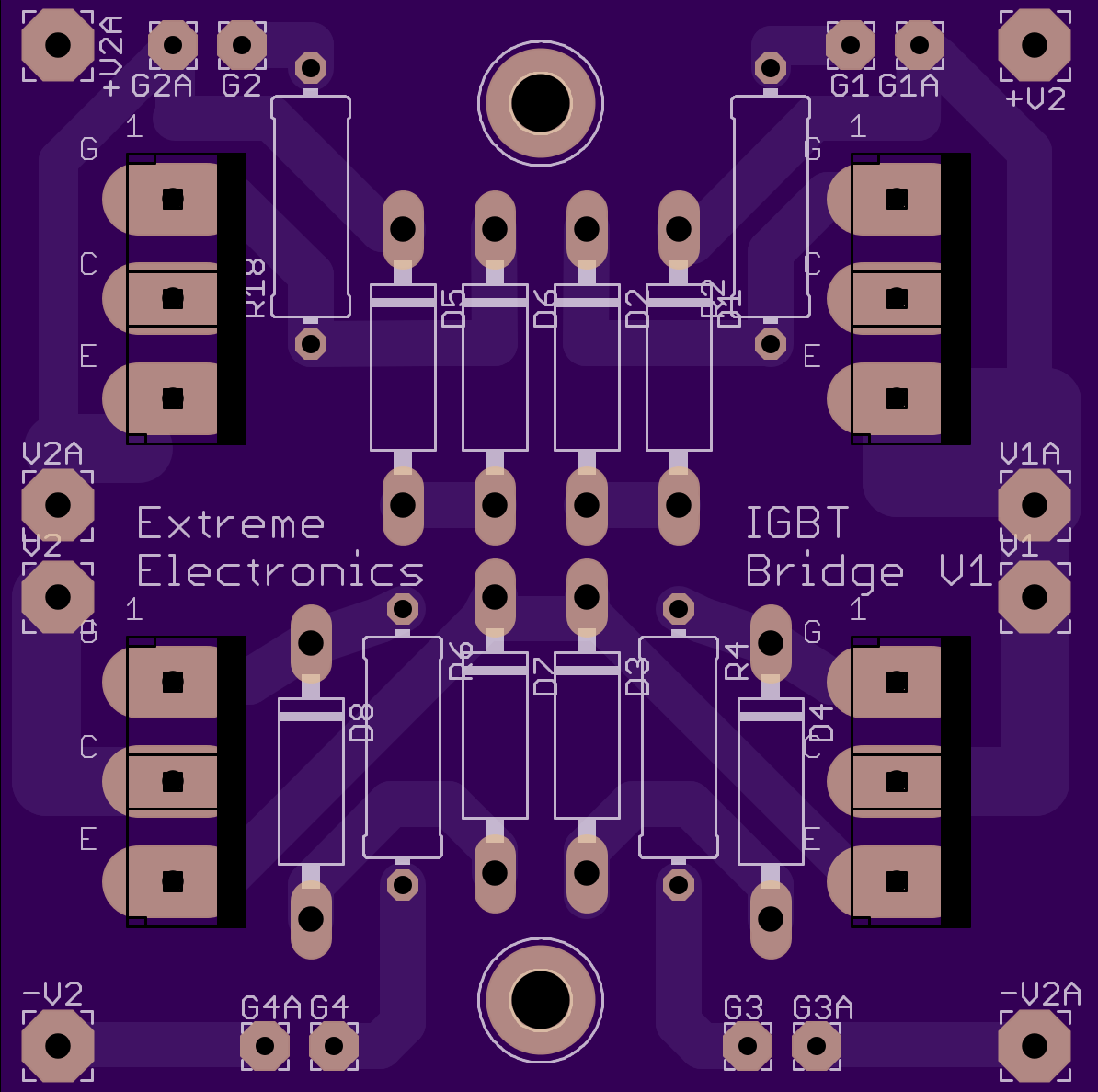

2 layer board of 2.39x2.38 inches (60.66x60.33 mm).
Shared on February 11th, 2016 17:21.

IGBT Bridge V1 Cockup - Two transistors have heat sink mount in the middle of the board. more details at extelec.uk/brg
