TI BQ25570 Energy Harvester

by ScrobbyRobotics.

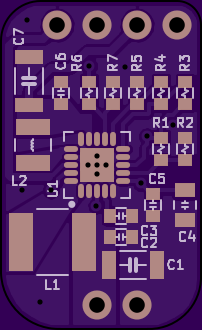

Top

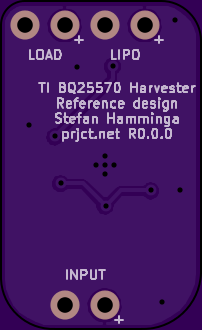

Bottom

2 layer board of 0.51x0.83 inches (12.83x20.98 mm).
Shared on December 23rd, 2014 00:14.

Ultra low voltage input switching DC converter with LiPo charger and 2.5V system voltage. The KiCad files and BOM are on my site: prjct.net
