Shaft encoder breadboard breakout

by KO4XL.

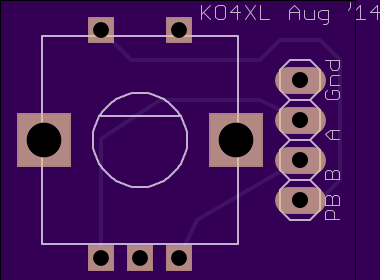

Top

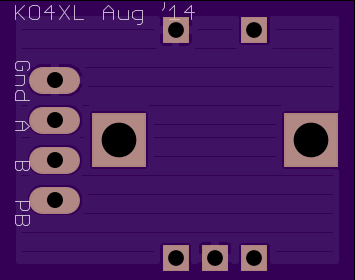

Bottom

2 layer board of 0.89x0.70 inches (22.56x17.78 mm).
Shared on August 19th, 2014 03:35.

For Alps shaft encoder w/ pushbutton or similar
