Generic Bandpass Filter

by Kelbit.

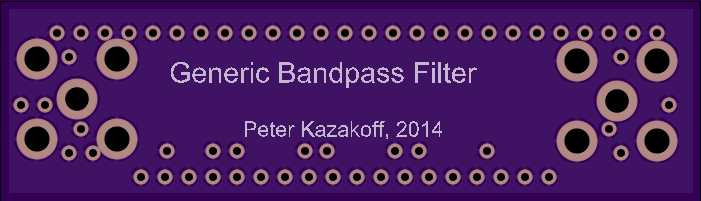

Top

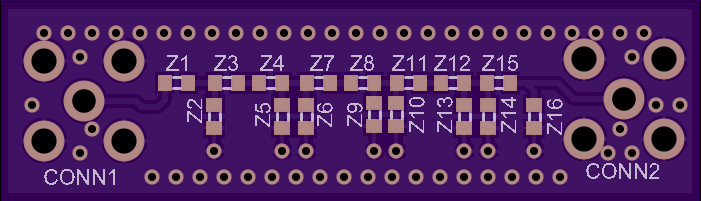

Bottom

2 layer board of 1.75x0.50 inches (44.53x12.75 mm).
Shared on September 26th, 2014 17:03.

An inline RF bandpass filter (unbalanced). Solder through-hole SMA connectors (example: DigiKey P/N A97594-ND) to the ends and then populate your own LC ladder network on the 0603 pads.

Traces have 50 ohm characteristic impedance based on OSHPark 2-layer stackup, planes have been via stitched for better RF performance.

You may want to mount the board inside a small metal box for shielding.

A good resource for calculating the LC values is: http://www-users.cs.york.ac.uk/~fisher/lcfilter/
