ZIF Socket Programmer For ATTiny84/85

by jimgrina.

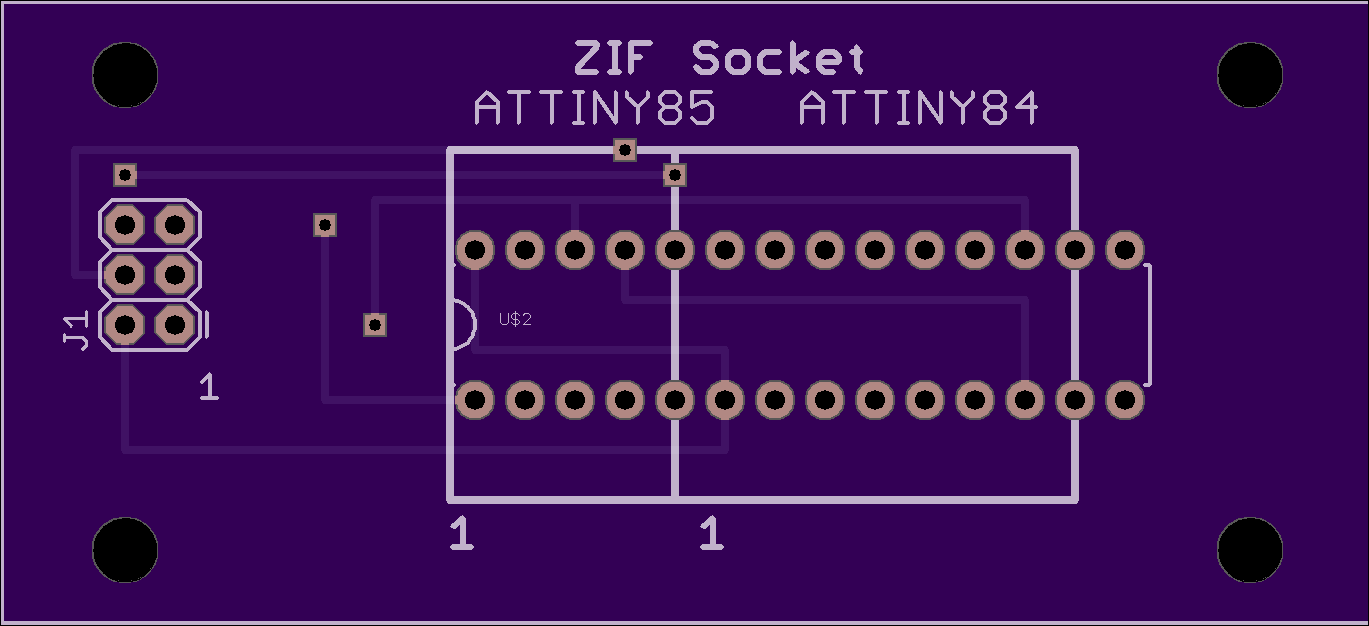

Top

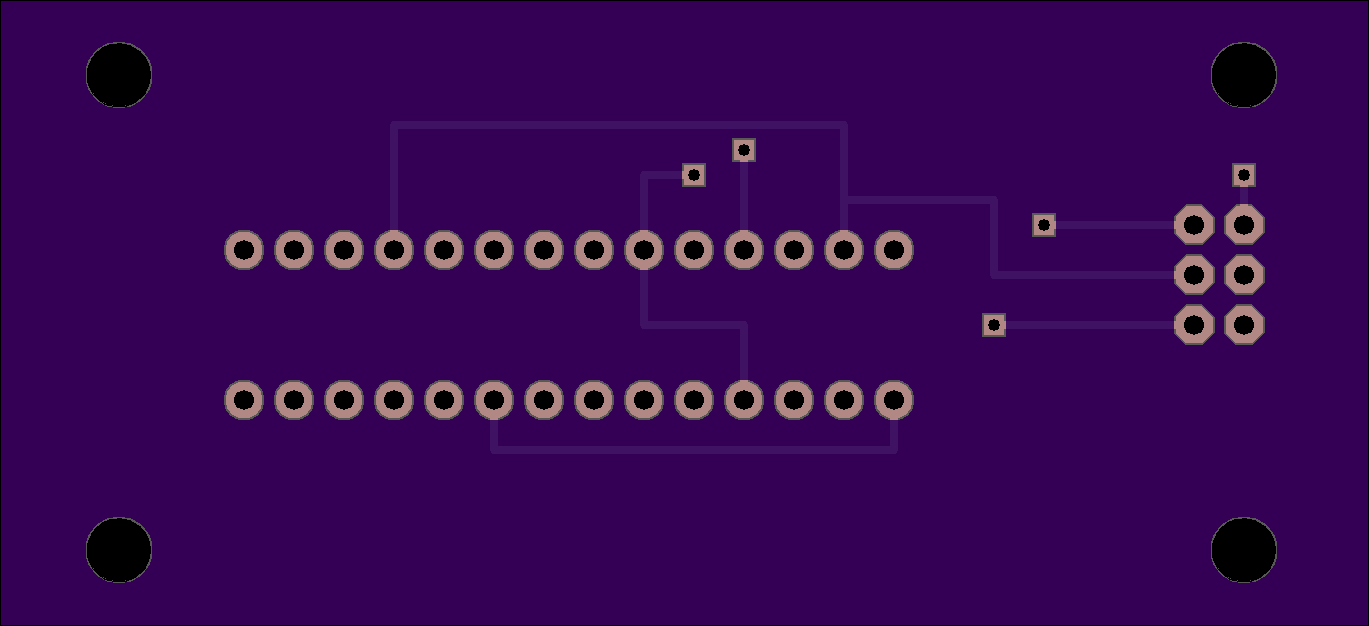

Bottom

2 layer board of 2.74x1.25 inches (69.52x31.75 mm).
Shared on February 16th, 2014 01:57.

You can program an ATTiny84 or 85 by inserting the chip in the appropriate portion of the socket. To make it easy, place a jumper wire across the pin location between chip locations
