MSGEQ7 Breakout

by Aerospacesmith.

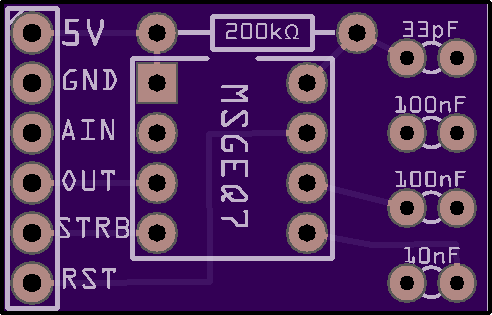

Top

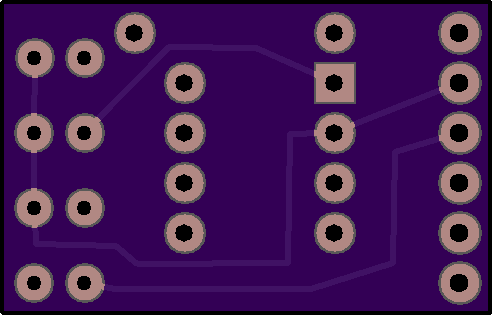

Bottom

2 layer board of 0.99x0.63 inches (25.02x16.00 mm).
Shared on July 20th, 2014 04:35.

Breakout Board for the MSGEQ7. BoM: 2x100nF Cap,1x10nF Cap, 1x33pF Cap, 1x200kOhm Res, 1xMSGEQ7 and/or Socket, 1x6pin header
